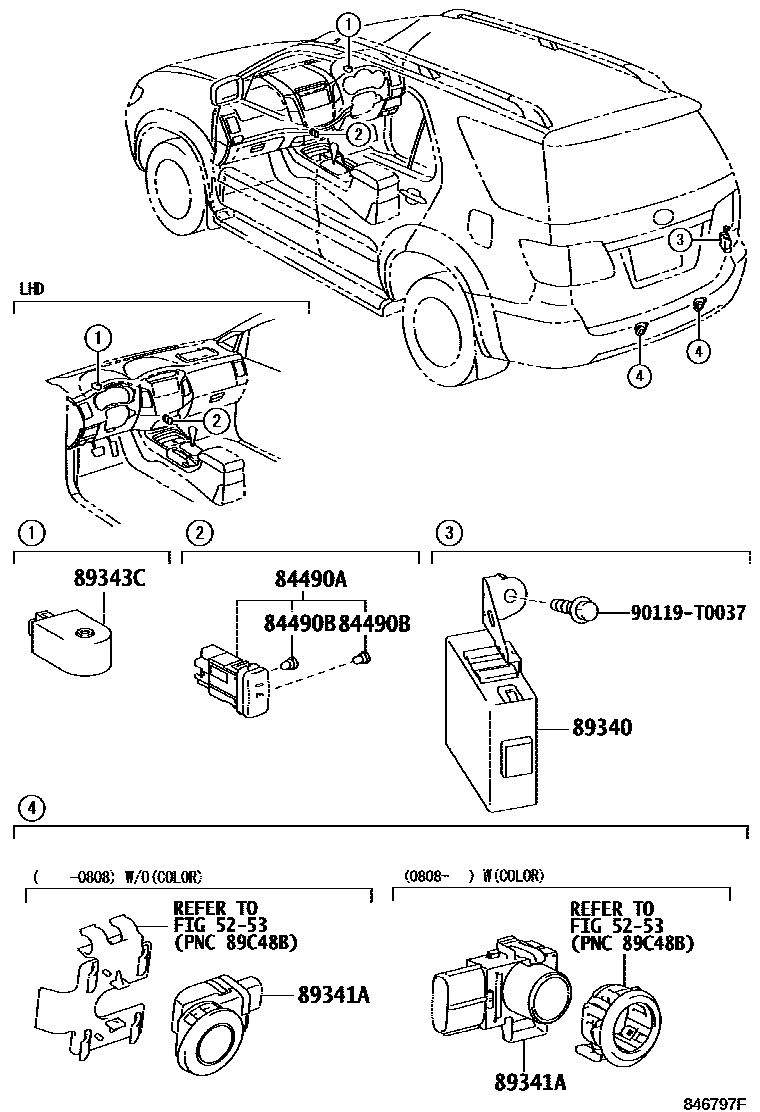

CLEARANCE & BACK SONAR

5253

84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR

main84490-0K010iKUN51..4FC..TH;KUN60,TGN51,61..IDN,TH200501-200808

84490BBULB(FOR BACK SONAR SWITCH)

main90011-01055iKUN51..4FC..TH;KUN60,TGN51,61..IDN,TH200501-200808

14V 0.84W,W(CAP)

main90011-01056iKUN51..4FC..LA201010

14V 0.91W

89340COMPUTER ASSY, REAR CLEARANCE WARNING

main89340-71010iKUN51..4FC..TH;KUN60,TGN51,61..IDN,TH200501-200808

main89340-71020iKUN51..4FC..TH;GGN50,KUN51,60..GCC,IDN,IND;KUN61,TGN51,61..GCC,IDN,TH,VN200808

89341ASENSOR, ULTRASONIC, NO.1

main89341-48010-C1×2supersedes 89341-48010-C1iTGN51..VN200902-201202

DUMMY-MAT BLACK,000

sub89341-60030

main89341-71010×2iKUN51..4FC..TH;KUN60,TGN51,61..IDN,TH200501-200808

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-30010iKUN51..4FC..TH;KUN60,TGN51,61..IDN,TH200501-200808

90119T0037

main90119-T0037

7 parts on this diagram · 1 diagram in section
