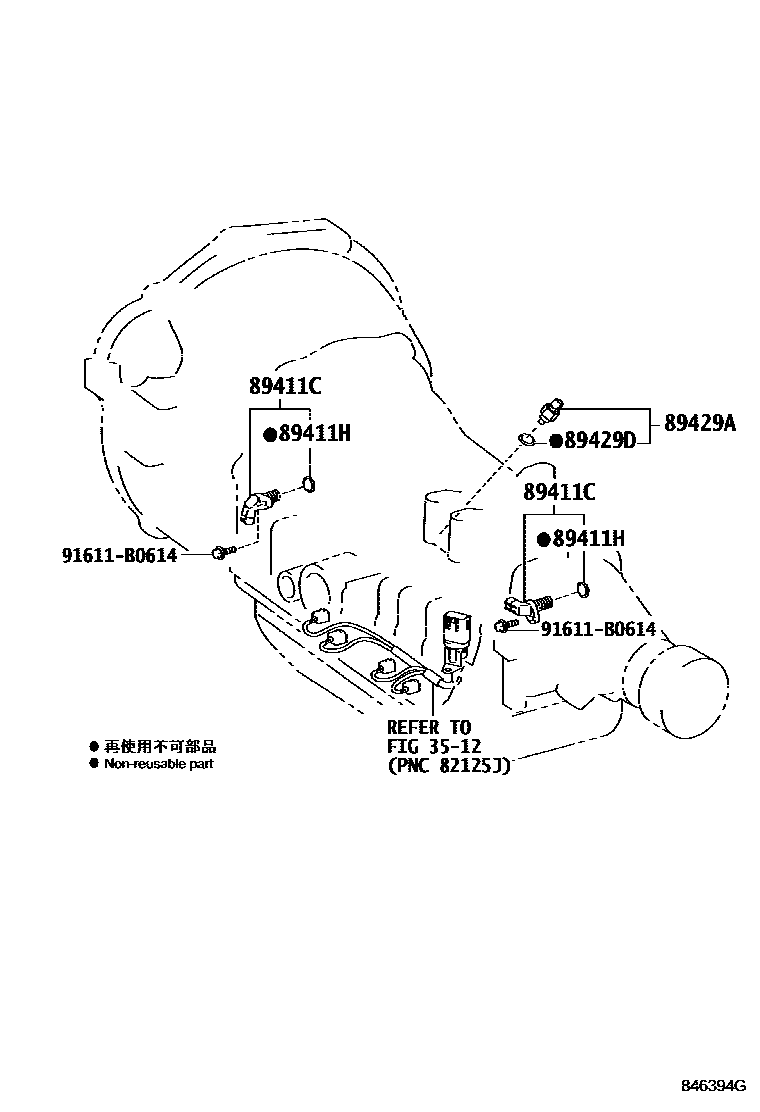

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1

3512

89411CSENSOR, SPEED

main89411-50010×2iKUN5#,6#,TGN51,61..4FC200808-201202

89411HRING, O

main90301-11008×2iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

89429ASENSOR, TEMPERATURE

main89429-34010iKUN51,60..(SUVW,THSUV)..4FC200501-200810

main89429-35090iTGN51..4FC;TGN61..SUVW..4FC;TGN61..IDSUV..4FC..(GCC,IDN)200501-200809

89429DRING, O(FOR TEMPERATURE SENSOR)

main90301-11006iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

91611B0614

main91611-B0614

6 parts on this diagram · 3 diagrams in section
