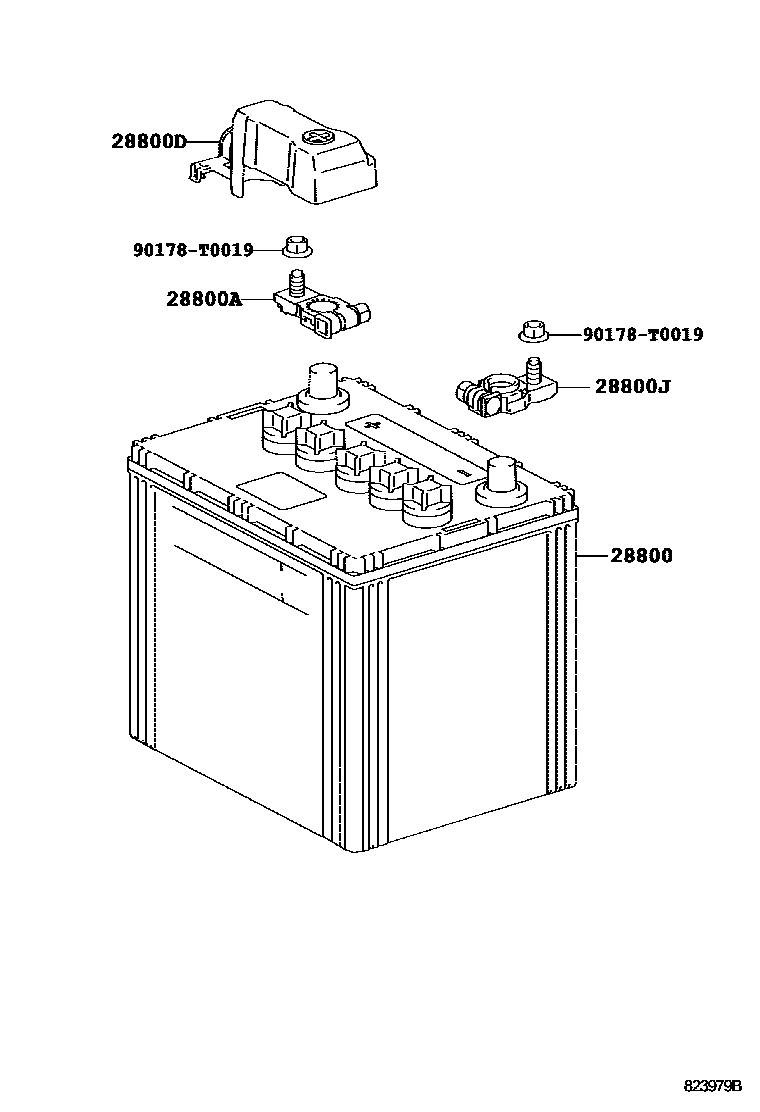

BATTERY & BATTERY CABLE

28800BATTERY

main28800-05080i2TRFE..TGN61..LA200509-200810

55D26L

sub28800-05081

main28800-0C050i2TRFE..TGN51,61..IDSUV..GCC200611-200808

55D23L

main28800-0C070i2TRFE..TGN51,61..IDSUV..IDN200610-200808

55D23L

main28800-0C120i2TRFE..TGN51,61..SUVW..(GCC,IDN,PHL,TH)200808-201107

55D23L,YUASA

main28800-0C190i2TRFE..TGN51,61..SUVW..(GCC,IDN,PHL,TH)200501-200808

55D23L,FURUKAWA

sub28800-0C191

main28800-0D110i1GRFE..GGN50..LA200903-201110

80D26L

sub28800-0D111

main28800-0H060i2TRFE..TGN51..MA200508-200809

55D23L

main28800-0L010i1GRFE,2KDFTV..GGN50,60,KUN60..(SUVW,THSUV)..(5F,5FC)..(GCC,GEN,IDN,PHL,TH,VN)200808-201202

80D26L,GS

main28800-0L030i2KDFTV..KUN60..SUVW..4FC;1KDFTV..KUN51,61..(SUVW,THSUV)..(GEN,PHL,TH)200808-201107

105D31L,GS

main28800-0L040i2KDFTV..KUN60..IDSUV..5F..IDN200808-201107

80D26L

main28800-0L070i1KDFTV..KUN51,61..LA200810-201110

105D31L

sub28800-0L071

main28800-0L120i1GRFE,2KDFTV..GGN50,60,KUN60..(SUVW,THSUV)..(5F,5FC)..(GCC,GEN,IDN,PHL,TH,VN)200808-201202

80D26L,YUASA

main28800-0L150i2KDFTV..KUN60..4FC;1KDFTV..KUN51..GEN,PHL,TH200501-200808

105D31L,FURUKAWA

sub28800-0L151

main28800-0L230i2KDFTV..KUN50200508-200809

80D26L

main28800-0L310i1GRFE,2KDFTV..GGN50,KUN60..LHD..IDSUV..(5F,5FC)200808-201107

80D26L

sub28800-0L620

main28800-0L340i1KDFTV,2KDFTV..KUN51,60..IDSUV..4FC200808-201107

105D31L

main28800-0L360i1GRFE,2KDFTV..GGN50,60,KUN60..(SUVW,THSUV)..(5F,5FC)..(GCC,GEN,IDN,PHL,TH,VN)200903-201202

80D26L,PANASONIC

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i1GRFE..GGN50..LHD;1GRFE..GGN50..5FC..SA;1GRFE..GGN60..SUVW..5FC200808

main90982-05056i2KDFTV..KUN60..SUVW..5F;1KDFTV..KUN51..SUVW..(PHL,TH);2TRFE..TGN61..SUVW..(IDN,PHL);2TRFE..TGN51..SUVW..(GCC,IDN,SA,TH)200608-200810

main90982-05066i1KDFTV,5LE..KUN51,61,LAN50..SA200504-200610

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-0K030i2TRFE..TGN51;2TRFE..TGN61..IDSUV..(GCC,IDN);1KDFTV,2KDFTV,5LE..KUN50,61,LAN50..5F;1KDFTV,2KDFTV,2TRFE..KUN51,60,TGN61..SUVW,THSUV200501-200810

main82821-0K040i1GRFE..GGN50;1GRFE..GGN60..5F;1GRFE..GGN60..ANCOM200507-200903

main82821-0K080i1KDFTV..KUN51..IND201107

28800JTERMINAL, BATTERY NEGATIVE

main90982-06024i2TRFE..TGN61;1KDFTV..KUN51..GEN,PHL,TH;1KDFTV,2KDFTV..KUN5#..4FC..(LA,MA);1GRFE,1KDFTV,2KDFTV,2TRFE..GGN50,60,KUN6#,TGN51..SR..(ANCOM,GCC,GEN,IDN,LA,MA,PHL,TH,VN)200808-200907

main90982-06059i1GRFE..GGN60..GEN200908-201107

90178T0019

main90178-T0019

5 parts on this diagram · 1 diagram in section
