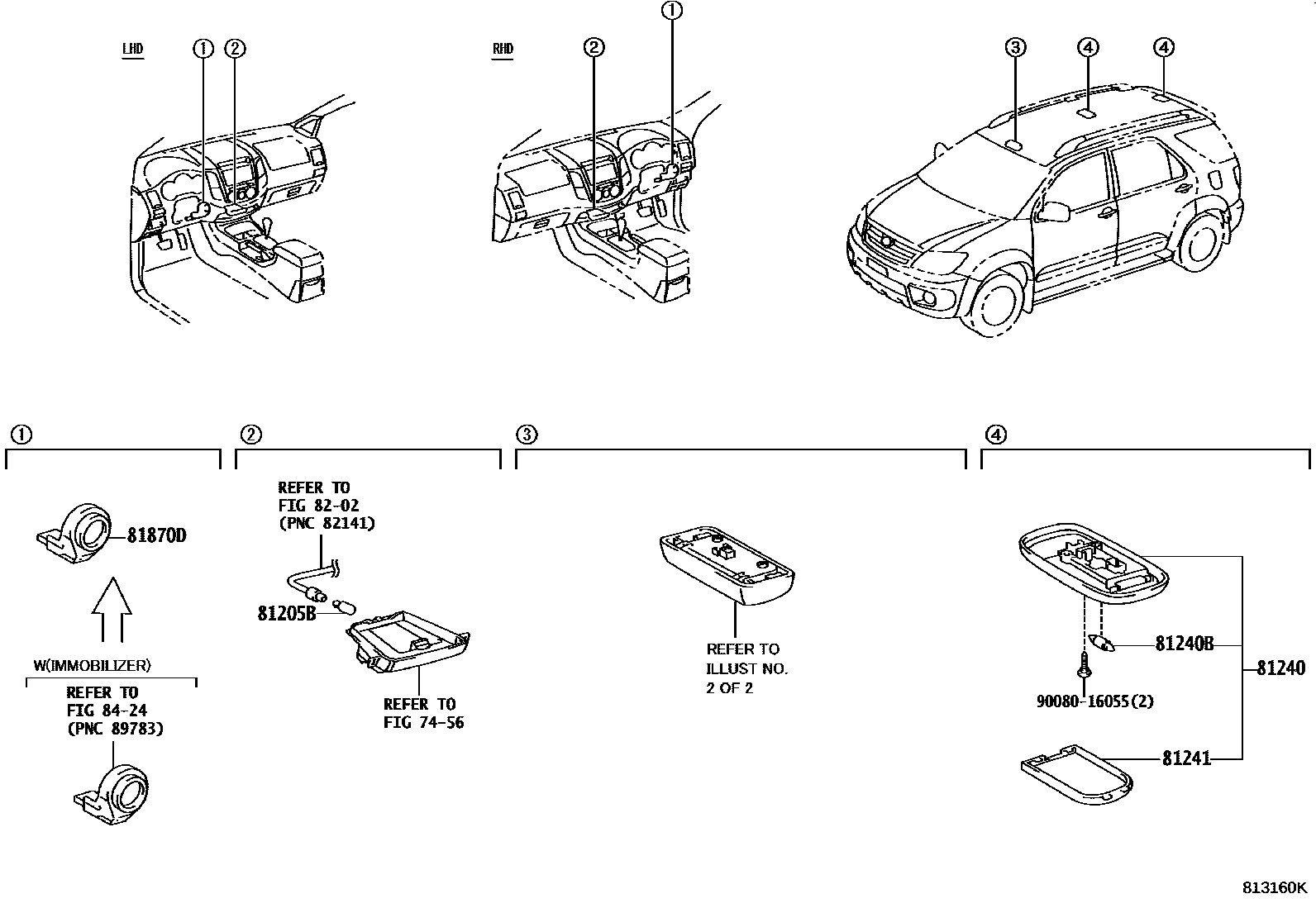

INTERIOR LAMP

0001 1 0002 1

7456

81205BBULB, ASH RECEPTACLE LAMP

main90981-11014iGGN50..LHD;GGN50..5FC..SA;GGN60,KUN50..4FC,5FC;KUN51,6#,LAN50,TGN51,61200808-201204

14V 1.4W,(J)

main90981-TB001iGGN50..LHD;GGN50..5FC..SA;GGN60,KUN50..4FC,5FC;KUN51,6#,LAN50,TGN51,61200808-201204

14V 1.4W,(L)

81240LAMP ASSY, ROOM, NO.1

main81240-0K010-A0×2iGGN60..ANCOM;GGN60,KUN61,TGN61..5F..(LA,SA);GGN50,KUN51,60,LAN50,TGN51,61..(SUVW,THSUV)..SR..(ANCOM,GCC,GEN,IDN,LA,PHL,SA,TH)200501-200903

IVORY,TRIM0#

main81240-0K010-E0×2iKUN51,61..SA;GGN50,60..5FC..SA200808-201107

SAND BEIGE,TRIM4#

main81240-12080-A1×2iKUN50,TGN51..MA;GGN50,TGN51,61..IDSUV..(GCC,IDN)200508-200809

IVORY,TRIM0#

sub81240-12060

main81240-12080-B2×2iKUN50,TGN51..MA200809-201109

LT.GRAY,TRIM1#

sub81240-12060

main81240-12080-E2×2iKUN51,60..IND,VN;KUN50,TGN51..4FC..(MA,VN);GGN50,KUN51,60,TGN51,61..IDSUV200808-201202

SAND BEIGE,TRIM4#

sub81240-12060

81240BBULB, ROOM LAMP, NO.1

main90981-14011×2iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-12020×2iKUN50,TGN51..MA;GGN50,TGN51,61..IDSUV..(GCC,IDN)200508-200809

81870DLAMP ASSY, KEY CYLINDER

main81870-0K010iKUN50,TGN51..MA200504-200709

8202

8424

9008016055

main90080-16055

9 parts on this diagram · 2 diagrams in section
