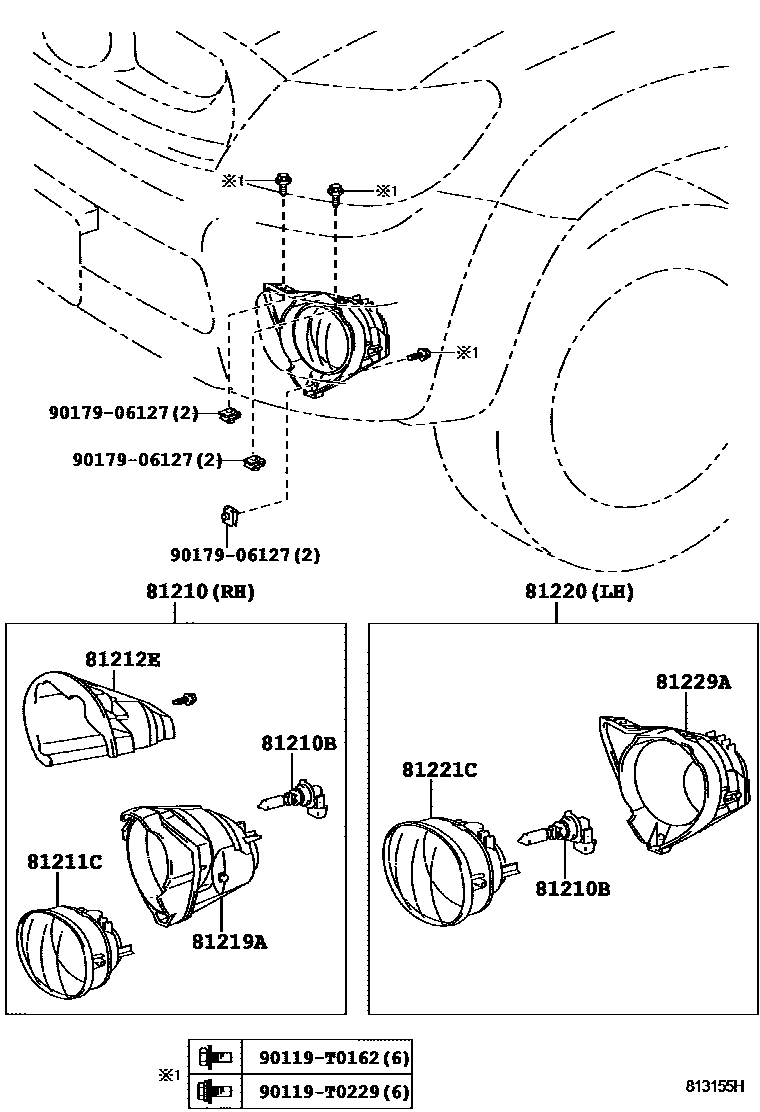

FOG LAMP
81210LAMP ASSY, FOG
main81210-0K050iTGN61..SR;KUN61,TGN51..RHD;GGN50,60,KUN5#,60..ANCOM,IDN,LA,MA,PHL,SA,TH200501-200611
main81210-0K051iTGN61..IDSUV..IDN;GGN60,TGN51..ANCOM,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GEN,IDN,LA,PHL,SA,TH)200611-200903
81210BBULB, FOG LAMP
main90981-13047×2iTGN61..IDSUV..IDN;GGN60,TGN51..ANCOM,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GEN,IDN,LA,PHL,SA,TH)200501-200903
12V 51W,HALOGEN
81211CLAMP UNIT, FOG LAMP, RH
main81211-0D070iTGN61..IDSUV..IDN;GGN60,TGN51..ANCOM,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GEN,IDN,LA,PHL,SA,TH)200501-200903
81212EBACK COVER, FOG LAMP
main81212-0K050iTGN61..SR;KUN61,TGN51..RHD;GGN50,60,KUN5#,60..ANCOM,IDN,LA,MA,PHL,SA,TH200501-200611
81219ABRACKET, FOG LAMP, RH
81220LAMP ASSY, FOG, LH
main81220-0K050iTGN61..IDSUV..IDN;GGN60,TGN51..ANCOM,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GEN,IDN,LA,PHL,SA,TH)200501-200903
81221CLAMP UNIT, FOG LAMP, LH
main81221-0D070iTGN61..IDSUV..IDN;GGN60,TGN51..ANCOM,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GEN,IDN,LA,PHL,SA,TH)200501-200903
81229ABRACKET, FOG LAMP, LH
90119T0162
main90119-T0162
90119T0229
main90119-T0229
9017906127
main90179-06127
11 parts on this diagram · 2 diagrams in section
