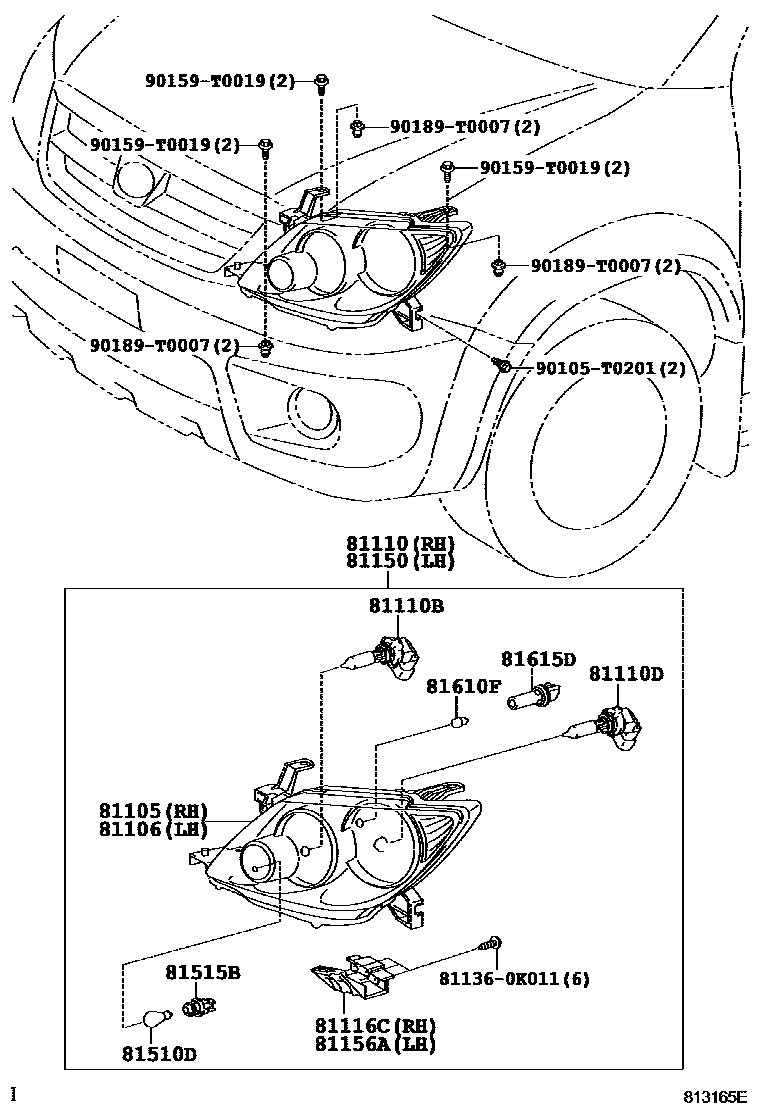

HEADLAMP

0001 1 0006 1

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81105-0K100iKUN51,TGN51,61..RHD;GGN50,60,KUN50,6#,LAN50..RHD..SUVW..(5F,5FC)200501-200810

main81105-0K110iTGN61..5F..LA;TGN61..IDSUV..GCC;KUN51..LHD..(SUVW,THSUV);GGN60,KUN60,TGN61..SUVW..(ANCOM,GCC,PHL);GGN50,KUN61,LAN50,TGN51..LHD..(ANCOM,GCC,GEN,LA,SA)200504-200903

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81106-0K100iKUN51,TGN51,61..RHD;GGN50,60,KUN50,6#,LAN50..RHD..SUVW..(5F,5FC)200501-200810

main81106-0K110iTGN61..5F..LA;TGN61..IDSUV..GCC;KUN51..LHD..(SUVW,THSUV);GGN60,KUN60,TGN61..SUVW..(ANCOM,GCC,PHL);GGN50,KUN61,LAN50,TGN51..LHD..(ANCOM,GCC,GEN,LA,SA)200504-200903

81110HEADLAMP ASSY, RH

main81110-0K100iKUN51,TGN51,61..RHD;GGN50,60,KUN50,6#,LAN50..RHD..SUVW..(5F,5FC)200501-200810

main81110-0K110iTGN61..5F..LA;TGN61..IDSUV..GCC;KUN51..LHD..(SUVW,THSUV);GGN60,KUN60,TGN61..SUVW..(ANCOM,GCC,PHL);GGN50,KUN61,LAN50,TGN51..LHD..(ANCOM,GCC,GEN,LA,SA)200504-200903

main81110-0K270iKUN51,6#,LAN50..RHD..(GEN,IDN,SA,TH);GGN50,60,KUN50,TGN51,61..RHD..(4FC,5FC)200808-201109

main81110-0K280iGGN60..GEN200808-201107

main81110-0K350iKUN51..IND200908

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81041iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

12V 65W

sub90981-13046

main90981-13046iGGN60..GEN200808-201204

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13047iTGN51..GCC,IDN;GGN50,KUN51,60,TGN61..GCC,GEN,IDN,PHL,TH200501-200903

12V 51W,HALOGEN

main90981-13075iGGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)200808-201107

12V 55W,HALOGEN

81116CBRACKET, HEADLAMP, RH

main81116-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

main81116-0K180iGGN60..GEN200808-201107

81150HEADLAMP ASSY, LH

main81150-0K100iKUN51,TGN51,61..RHD;GGN50,60,KUN50,6#,LAN50..RHD..SUVW..(5F,5FC)200501-200810

main81150-0K110iTGN61..5F..LA;TGN61..IDSUV..GCC;KUN51..LHD..(SUVW,THSUV);GGN60,KUN60,TGN61..SUVW..(ANCOM,GCC,PHL);GGN50,KUN61,LAN50,TGN51..LHD..(ANCOM,GCC,GEN,LA,SA)200504-200903

main81150-0K270iKUN51,6#,LAN50..RHD..(GEN,IDN,SA,TH);GGN50,60,KUN50,TGN51,61..RHD..(4FC,5FC)200808-201109

main81150-0K280iGGN60..GEN200808-201107

main81150-0K350iKUN51..IND200908

81156ABRACKET, HEADLAMP, LH

main81156-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

main81156-0K180iGGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)200808-201107

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15009iTGN51..GCC,IDN;GGN50,KUN51,60,TGN61..GCC,GEN,IDN,PHL,TH200501-200903

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60006iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

main90075-60069iGGN60..GEN200808-201107

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60077iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

811360K011PROTECTOR, HEADLAMP, NO.1 RH

main81136-0K011

90105T0201

main90105-T0201

90159T0019

main90159-T0019

90189T0007

main90189-T0007

16 parts on this diagram · 2 diagrams in section
