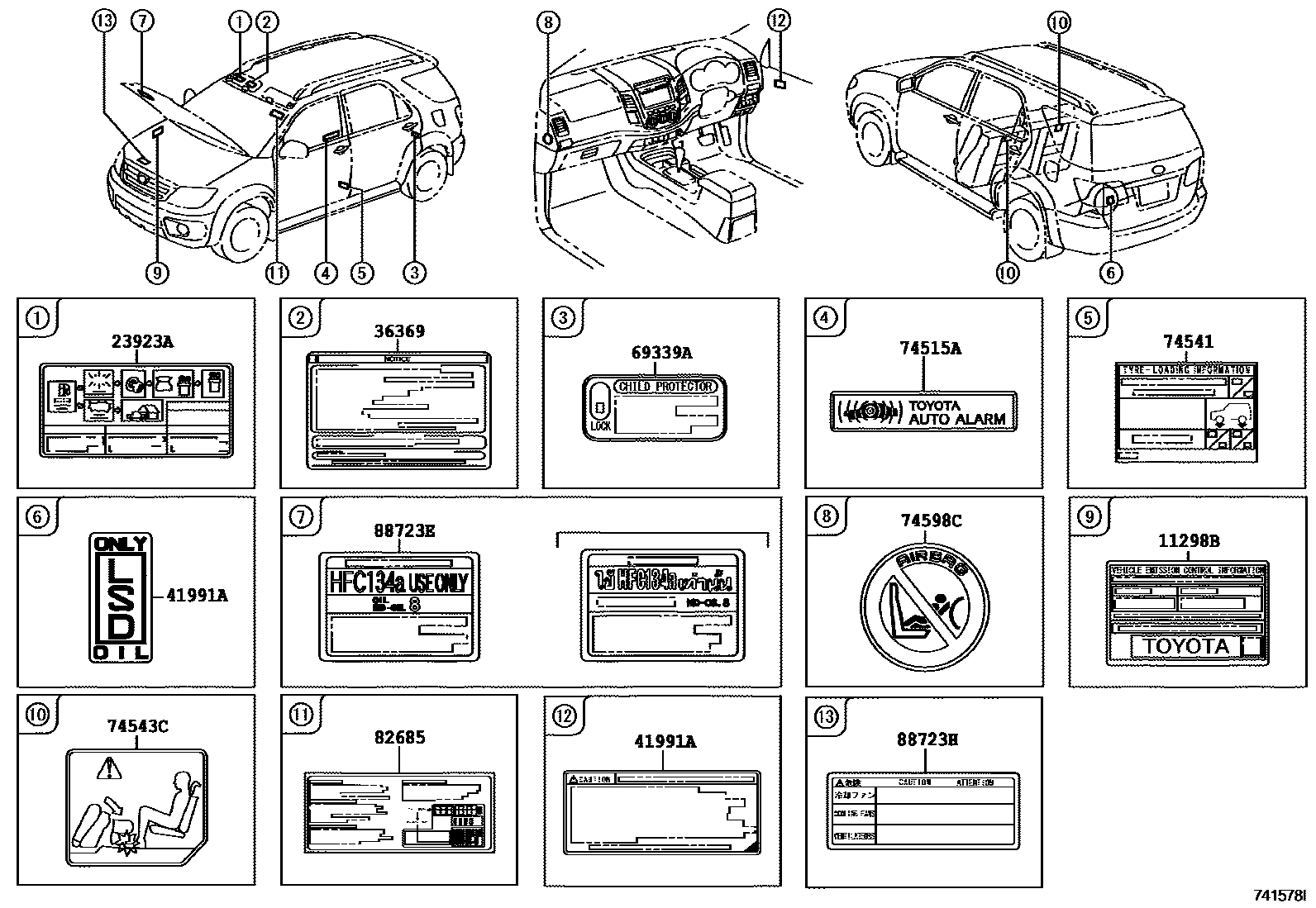

CAUTION PLATE

0001 1 0002 1

11298BLABEL, EMISSION CONTROL INFORMATION

main11298-0C040i2TRFE..TGN61..PHL200808-201107

sub11298-0C041

main11298-0L010i2KDFTV..KUN60..PHL200504-200707

main11298-0L011i2KDFTV..KUN60..PHL200707-200808

main11298-0L030i1KDFTV..KUN51..PHL200504-200707

main11298-0L031i1KDFTV..KUN51..PHL200707-200808

23923ALABEL, FUEL SEDIMENTER NOTICE

main23923-0L020i1KDFTV..KUN51,61..IND,LA200808-201009

(L)

main23923-0L030i1KDFTV,2KDFTV..KUN51,60..IDSUV200808-201107

main23923-0L060i1KDFTV..KUN51..IND201009-201201

main23923-0L070i1KDFTV..KUN51,61..LA201010-201110

(L)

main23923-0L080i1KDFTV,5LE..KUN51,61,LAN50..SA201010-201108

main23923-30010i1KDFTV,2KDFTV..KUN51,60..SUVW,THSUV;1KDFTV,2KDFTV,5LE..KUN50,61,LAN50..5F200708-200810

(J)

36369LABEL, TRANSFER INFORMATION

main36369-0K010iKUN50,TGN51..MA200501-200809

main36369-0K030iKUN51..4FC..(SA,TH)200808-201108

41991APLATE, CAUTION

main41991-0K010iKUN61..LA;TGN61..4FC..LA200810

main41991-0K020iGGN50..GCC200507-200808

69339APLATE, CHILD PROTECTOR LOCK CAUTION

main69339-02040×2iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810

main69339-03010×2iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200810

sub69339-AA020

main69339-0A010×2iGGN50,KUN5#,60,TGN51,61..SUVW..(GCC,MA,PHL,VN)201005

main69339-0A020×2iKUN60,TGN51,61..IDN200504-200808

main69339-0K020×2iGGN50,60,KUN51..THSUV200808-201107

main69339-12010×2iKUN51..IND200808

74515APLATE, THEFT WARNING

main74515-30020×2iTGN51..IDN,TH;GGN50,60,KUN51,6#,TGN61..ANCOM,IDN,LA,PHL,SA,TH200501-200708

main74515-33020×2iTGN61..IDSUV..IDN;GGN60,KUN51..(5F,5FC)..(ANCOM,LA);GGN60,TGN51..RHD..(4FC,5F)..(IDN,SA);GGN50,KUN61,TGN61..(5F,5FC)..(ANCOM,GEN,LA,SA);KUN51,60,TGN61..(SUVW,THSUV)200708-200903

74541PLATE, TIRE PRESSURE CAUTION

main42661-0K281iTGN61..IDSUV..(GCC,IDN);GGN50,KUN50,TGN51..GCC,IDN,MA,TH;KUN51,60,TGN61..SUVW..(GCC,IDN,PHL,TH)200501-200809

main42661-0K330iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200810

main42661-0K350iKUN61,TGN61..5F..LA200810

main42661-0K400iGGN50,KUN51..GEN200708-200808

main42661-0K550iGGN50,60..ANCOM200602-200903

main42661-0K760supersedes 42661-0K281iKUN50,61,TGN51,61..4FC..(IDN,MA,PHL,TH,VN);KUN51,60..(IDSUV,SUVW)..(GEN,IDN,PHL,TH,VN)200808

main42661-0K780iGGN50,60,KUN51..THSUV200808-201107

main42661-0K800supersedes 42661-0K330iGGN50,60,KUN51,61..SA200810-201108

TIRE & DISC WHEEL-265/65R17 7.5J ALMINUM

main42661-0K820iGGN50,KUN51..LA200810

main42661-0K830iGGN50,60..ANCOM200812

main42661-0K860iKUN51..IND200909

74543CLABEL, REAR SEAT INFORMATION

main74543-0K070×2iGGN50,60,KUN51,61,LAN50,TGN51..SA200501-200810

main74543-0K090×2iGGN50,KUN51,60,TGN51,61..IDSUV201102-201107

74598CLABEL, PASSENGER AIRBAG CAUTION

main74598-02030iTGN61..4FC..LA;GGN50,60,KUN51..ANCOM,LA200810

SRS AIR BAG-WITH(DRIVER & PASSENGER)

main74598-02040iKUN51..4FC..(PHL,TH);KUN60,TGN51,61..IDN,PHL,TH200501-200608

SRS AIR BAG-WITH(DRIVER ONLY)

main74598-0K010iKUN51..IND201009

main74598-20010supersedes 74598-20010iKUN51..4FC..(PHL,TH);KUN60,TGN51,61..SUVW..(IDN,PHL)200608-200708

SRS AIR BAG-WITH(DRIVER ONLY)

82685PLATE, CAUTION

main82685-0K010iKUN60,TGN51,61..SUVW..IDN200504-200808

88723ELABEL, COOLER SERVICE CAUTION

main88723-02080iTGN61..TH200808-201107

AIR CONDITIONER-AUTO COOLER DUAL

main88723-0K010supersedes 88723-02080iKUN51,60,TGN51,61..SUVW..(IDN,PHL)200504-200808

main88723-0K020iKUN51,60,TGN51,61..IDSUV..(IDN,PHL)200808-201107

AIR CONDITIONER-AUTO AIR CONDITIONER DUAL

main88723-0K030iTGN51..SA200602-200808

main88723-0K040iKUN51,61,TGN61..LA200509-200810

main88723-0K050iKUN51..IND200908

main88723-0K070iKUN50,TGN51..MA200809-201109

main88723-0K080iGGN50,60..ANCOM200602-200812

main88723-0K160iGGN50,KUN51..GEN200708-200808

main88723-0K180iGGN50,KUN51,61,TGN61..LA200810

main88723-0K190iGGN50,60..ANCOM200812

88723HLABEL, COOLER SERVICE CAUTION

main88723-20081iGGN50,TGN51,61..GCC200808-201107

AIR CONDITIONER-AUTO AIR CONDITIONER DUAL

sub16793-31070

12 parts on this diagram · 2 diagrams in section
