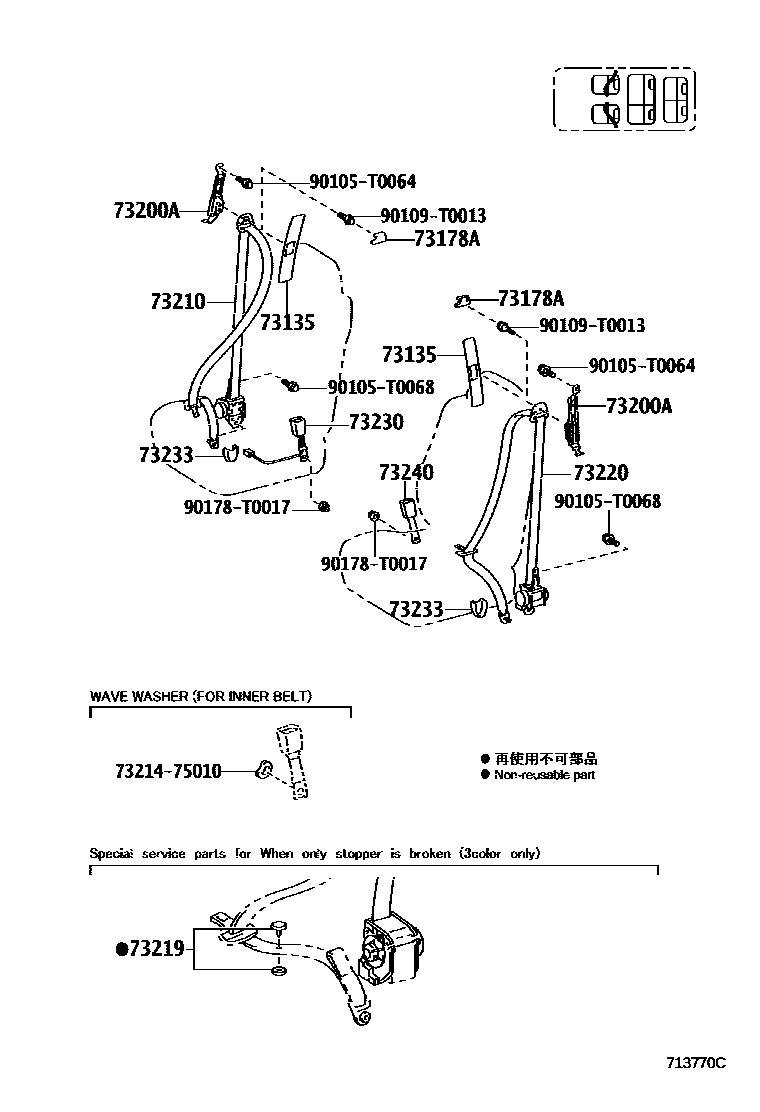

SEAT BELT
73135COVER, SHOULDER BELT ANCHORAGE PLATE
main73135-02010-A0×2iTGN61..5F..LA;TGN51..IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..SUVW..(ANCOM,GCC);GGN50,KUN50,61,LAN50..(SUVW,THSUV)..(5F,5FC);GGN60,KUN51,60,TGN61..(SUVW,TH200501-200903
IVORY,TRIM0#
SAND BEIGE,TRIM4#
73178ACAP, SEAT BELT ANCHOR COVER
main73178-33020-A1×2iTGN51..IDSUV..IDN;TGN61..IDSUV..(GCC,IDN);TGN51..SUVW..(GCC,MA,SA,TH);GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN50,KUN50,61,LAN50..(SUVW,THSUV)..(5F,5FC);GGN60,KUN51,60,200501-200903
IVORY,TRIM0#
main73178-33020-E5×2iKUN51..THSUV;GGN50..5FC..SA;GGN60,KUN50,TGN61..4FC,5FC;GGN50,TGN61..LHD..(5F,5FC)..SR;KUN51,6#,LAN50,TGN51..SR..(GCC,IDN,IND,LA,MA,PHL,SA,TH,VN)200808-201204
SAND BEIGE,TRIM4#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-02020-A0×2iTGN61..5F..LA;TGN51..IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..SUVW..(ANCOM,GCC);GGN50,KUN50,61,LAN50..(SUVW,THSUV)..(5F,5FC);GGN60,KUN51,60,TGN61..(SUVW,TH200501-200903
IVORY,TRIM0#
sub73200-0K010
main73200-02090-E0×2iGGN50..LHD;KUN51..THSUV;GGN50..5FC..SA;GGN60,KUN50..4FC,5FC;KUN51,6#,LAN50,TGN51,61..GCC,IDN,IND,LA,MA,PHL,SA,TH,VN200808-201204
SAND BEIGE,TRIM4#
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-0K090-A0iTGN51..IDSUV..IDN;KUN51,60,TGN61..GCC,GEN,IDN,PHL,TH;GGN50,TGN51..(SUVW,THSUV)..(GCC,GEN,TH)200501-200808
IVORY,TRIM0#
IVORY,TRIM4#
IVORY,TRIM0#
sub73210-0K101
IVORY,TRIM0#
IVORY,TRIM4#
IVORY,TRIM0#
SRS AIR BAG-WITH(DRIVER & PASSENGER),IVORY,TRIM4#
IVORY,TRIM4#
IVORY,TRIM0#
IVORY,TRIM4#
IVORY,TRIM0#
IVORY,TRIM4#
SRS AIR BAG-WITH(DRIVER & PASSENGER),IVORY,TRIM4#
73219STOPPER, TONGUE PLATE
main73219-33010iTGN61..5F..LA;TGN51..IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..SUVW..(ANCOM,GCC);GGN50,KUN50,61,LAN50..(SUVW,THSUV)..(5F,5FC);GGN60,KUN51,60,TGN61..(SUVW,TH200501-200903
BLACK
main73219-33020iGGN50..LHD;KUN51..THSUV;GGN60..SUVW..5FC;GGN50,KUN50..RHD..(4FC,5FC);KUN51,6#,LAN50,TGN51,61..GCC,IDN,IND,LA,MA,PHL,SA,TH,VN200808
GRAY
main73219-33030iTGN61..5F..LA;TGN51..IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..SUVW..(ANCOM,GCC);GGN50,KUN50,61,LAN50..(SUVW,THSUV)..(5F,5FC);GGN60,KUN51,60,TGN61..(SUVW,TH200501-200903
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-0K090-A0iTGN51..IDSUV..IDN;KUN51,60,TGN61..GCC,GEN,IDN,PHL,TH;GGN50,TGN51..(SUVW,THSUV)..(GCC,GEN,TH)200501-200808
IVORY,TRIM0#
IVORY,TRIM4#
IVORY,TRIM0#
sub73220-0K101
IVORY,TRIM0#
IVORY,TRIM4#
IVORY,TRIM0#
SRS AIR BAG-WITH(DRIVER & PASSENGER),IVORY,TRIM4#
IVORY,TRIM4#
IVORY,TRIM0#
IVORY,TRIM4#
SRS AIR BAG-WITH(DRIVER & PASSENGER),IVORY,TRIM4#
IVORY,TRIM0#
IVORY,TRIM4#
73230BELT ASSY, FRONT SEAT INNER, RH
IVORY,TRIM0#
SAND BEIGE,TRIM4#
main73230-0K020-A0supersedes 73230-0K420-A0iTGN51..TH;TGN51..IDSUV..IDN;KUN6#..RHD..SUVW..5F;GGN50,60,KUN51,TGN61..RHD200501-200810
IVORY,TRIM0#
SAND BEIGE,TRIM4#
IVORY,TRIM0#
SAND BEIGE,TRIM4#
IVORY,TRIM0#
IVORY,TRIM0#
IVORY,TRIM0#
SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
IVORY,TRIM0#
SAND BEIGE,TRIM4#
IVORY,TRIM0#
SAND BEIGE,TRIM4#
IVORY,TRIM0#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
main73230-0K611-E0supersedes 73230-0K020-E1iTGN61..TH;GGN50,60,KUN51,61,TGN51..(4FC,5FC)..(IDN,SA,TH)201007-201108
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
SRS AIR BAG-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
73233COVER, LAP BELT OUTER ANCHOR
IVORY,TRIM0#
main73233-60010-E2×2iKUN51..THSUV;GGN50..5FC..SA;GGN60,KUN50,TGN61..4FC,5FC;GGN50,TGN61..LHD..(5F,5FC)..SR;KUN51,6#,LAN50,TGN51..SR..(GCC,IDN,IND,LA,MA,PHL,SA,TH,VN)200808-201204
SAND BEIGE,TRIM4#
73240BELT ASSY, FRONT SEAT INNER, LH
SAND BEIGE,TRIM4#
main73230-0K020-A0supersedes 73230-0K420-A0iKUN51,60,TGN61..GCC,GEN,PHL;GGN50,TGN51..(SUVW,THSUV)..(GCC,GEN)200504-200808
IVORY,TRIM0#
main73230-0K020-E1supersedes 73230-0K420-E0iTGN51..GCC;GGN50,60,KUN51,60,TGN61..LHD..(GCC,GEN,PHL,VN)200808-201202
SAND BEIGE,TRIM4#
main73230-0K030-A0supersedes 73230-0K010-A0iTGN51..TH;TGN51..IDSUV..IDN;KUN51,TGN61..RHD..4FC;GGN50,60,KUN51,6#..RHD..SUVW..(IDN,SA)200501-200810
IVORY,TRIM0#
SAND BEIGE,TRIM4#
IVORY,TRIM0#
IVORY,TRIM0#
IVORY,TRIM0#
SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
IVORY,TRIM0#
SAND BEIGE,TRIM4#
IVORY,TRIM0#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
90105T0064
main90105-T0064
90105T0068
main90105-T0068
90109T0013
main90109-T0013
90178T0017
main90178-T0017
14 parts on this diagram · 3 diagrams in section
