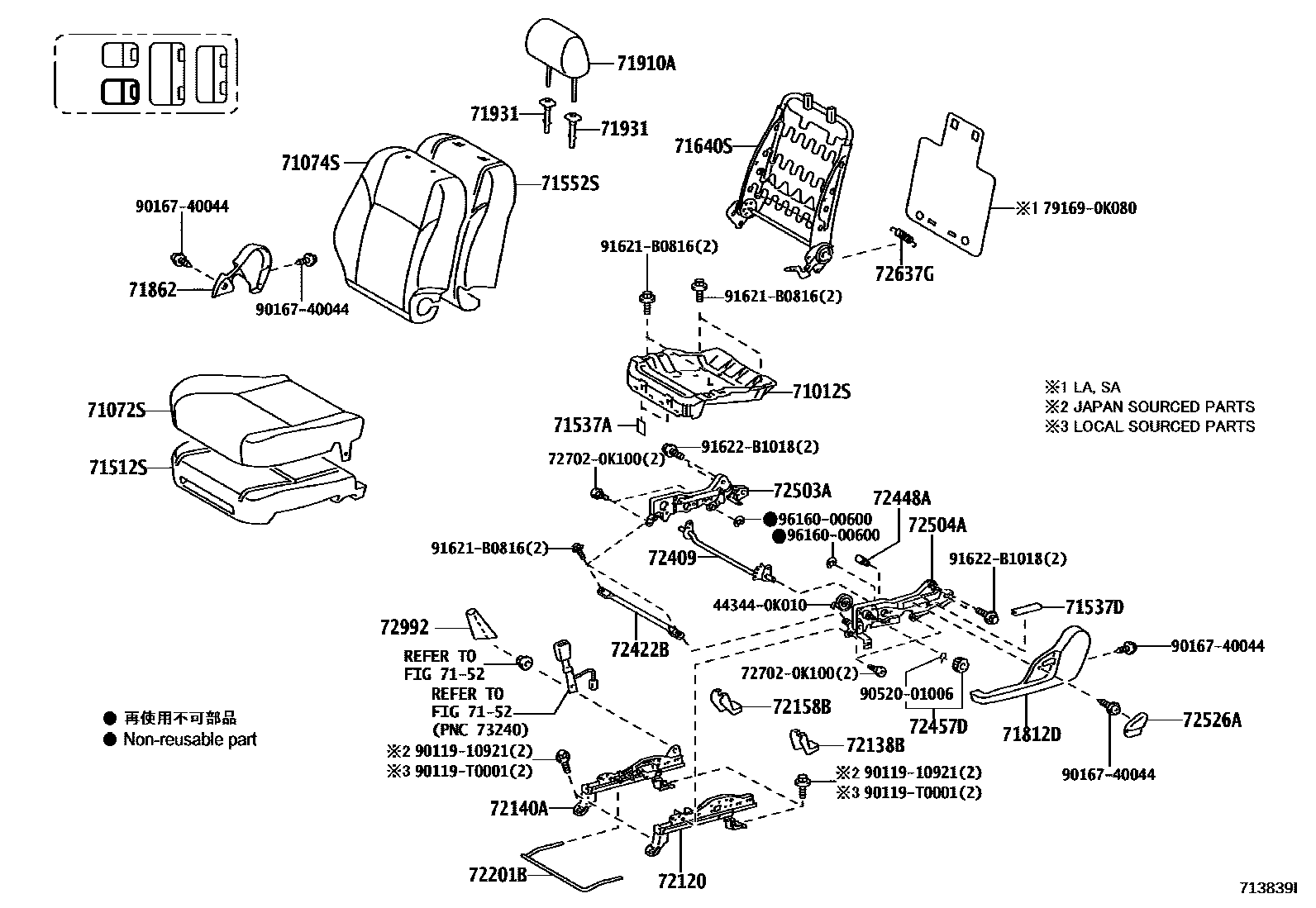

SEAT & SEAT TRACK
71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH
main71011-0K030supersedes 71011-0K030iTGN51..SUVW..(GCC,IDN);GGN50,KUN51,60,TGN61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)200501-200709
main71011-0K050supersedes 71011-0K050iGGN50,KUN51,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)200709-200810
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
IVORY,TRIM0#
SAND BEIGE,TRIM4#
IVORY,TRIM0#
SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
IVORY,TRIM0#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
IVORY,TRIM0#
IVORY,TRIM0#
IVORY,TRIM0#
SAND BEIGE,TRIM4#
IVORY,TRIM0#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
IVORY,TRIM0#
IVORY,TRIM0#
IVORY,TRIM0#
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#
SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
SRS AIR BAG-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
IVORY,TRIM0#
SAND BEIGE,TRIM4#
IVORY,TRIM0#
IVORY,TRIM0#
IVORY,TRIM0#
SAND BEIGE,TRIM4#
IVORY,TRIM0#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
IVORY,TRIM0#
IVORY,TRIM0#
IVORY,TRIM0#
SAND BEIGE,TRIM4#
IVORY,TRIM0#
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#
SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),SAND BEIGE,TRIM4#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER)
SRS AIR BAG-WITHOUT
SEAT COVER MATERIAL-LEATHER
7152
71537APROTECTOR, FRONT SEAT CUSHION
main71537-0K020×4iKUN51..RHD;TGN61..5F..LA;TGN61..IDSUV..(GCC,IDN);KUN51..(SUVW,THSUV)..(GEN,LA,PHL);GGN60,TGN51..(4FC,5F)..(GCC,IDN,MA,SA,TH);GGN50,KUN50,61,LAN50..(SUVW,THSUV)..(5F200501-200903
71537DPROTECTOR, FRONT SEAT CUSHION EDGE, LH
main71537-71010supersedes 71537-71010iKUN51..RHD;TGN61..5F..LA;TGN61..IDSUV..(GCC,IDN);KUN51..(SUVW,THSUV)..(GEN,LA,PHL);GGN60,TGN51..(4FC,5F)..(GCC,IDN,MA,SA,TH);GGN50,KUN50,61,LAN50..(SUVW,THSUV)..(5F200501-200903
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-0K030supersedes 71551-0K030iKUN51..RHD;GGN60..ANCOM;KUN61..5F..SA;TGN61..IDSUV..(GCC,IDN);KUN51..(SUVW,THSUV)..(GEN,PHL);GGN60,TGN51..(4FC,5F)..(GCC,IDN,MA,SA,TH);GGN50,KUN60,LAN50,TGN61..(SUV200501-200903
SEAT COVER MATERIAL-LEATHER
SEAT COVER MATERIAL-LEATHER
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
SEAT COVER MATERIAL-LEATHER
71812DSHIELD, FRONT SEAT CUSHION, LH
IVORY,TRIM0#
main71812-0K020-E1supersedes 71812-0K020-E1iKUN51..4FC..SA;KUN60,LAN50..RHD;KUN51..SUVW..(GEN,IND,TH);GGN50,60,KUN50,61,TGN51,61..RHD..(4FC,5FC)200808-201201
SAND BEIGE,TRIM4#
main71812-0K040-A0iTGN61..5F..LA;TGN61..IDSUV..GCC;GGN60,KUN61,LAN50,TGN51..LHD..(ANCOM,GCC,LA,SA);GGN50,KUN51,60,TGN61..(SUVW,THSUV)..SR..(ANCOM,GCC,GEN,LA,PHL)200504-200903
IVORY,TRIM0#
main71812-0K040-E1supersedes 71812-0K040-E1iTGN61..4FC..LA;KUN51..LHD..(GEN,LA,SA);GGN50,60,KUN60,LAN50,TGN51..LHD..(5F,5FC)..(ANCOM,GEN,LA,SA,VN)200808-201204
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
71862SHIELD, FRONT SEAT CUSHION, INNER LH
SAND BEIGE,TRIM4#
IVORY,TRIM0#
main71862-0K020-E1supersedes 71862-0K020-E1iKUN51..4FC..SA;KUN51..SUVW..(GEN,IND,TH);KUN60,LAN50,TGN51..RHD..(IDN,SA,TH);GGN50,60,KUN50,61,TGN61..RHD..(4FC,5FC)200808-201201
SAND BEIGE,TRIM4#
main71862-0K040-A0iTGN61..5F..LA;TGN61..IDSUV..GCC;GGN60,KUN61,LAN50,TGN51..LHD..(ANCOM,GCC,LA,SA);GGN50,KUN51,60,TGN61..(SUVW,THSUV)..SR..(ANCOM,GCC,GEN,LA,PHL)200504-200903
IVORY,TRIM0#
main71862-0K040-E1supersedes 71862-0K040-E1iTGN61..4FC..LA;KUN51..LHD..(GEN,LA,SA);GGN50,60,KUN60,LAN50,TGN51..LHD..(5F,5FC)..(ANCOM,GEN,LA,SA,VN)200808-201204
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
71910AHEADREST ASSY, FRONT SEAT
IVORY,TRIM0#
SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
IVORY,TRIM0#
IVORY,TRIM0#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
IVORY,TRIM0#
SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
IVORY,TRIM0#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),SAND BEIGE,TRIM4#
IVORY,TRIM0#
SAND BEIGE,TRIM4#
main71910-0K230-E1×2iKUN51..5F..TH;KUN60..SUVW..(IDN,PHL,TH);KUN51,TGN61..SUVW..(GEN,IDN,PHL)200908-201107
SAND BEIGE,TRIM4#
IVORY,TRIM0#
IVORY,TRIM0#
IVORY,TRIM0#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
IVORY,TRIM0#
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#
SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
SRS AIR BAG-WITH(DRIVER & PASSENGER),IVORY,TRIM0#
sub71910-0K620
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#,RH SEAT
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER)
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#
71931SUPPORT, FRONT SEAT HEADREST
main71930-02050-A0×2iTGN51..GCC,IDN,MA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN5#,60,TGN61..(SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,TH)200501-200809
W(LOCK),IVORY,TRIM0#
W(LOCK),SAND BEIGE,TRIM4#
W(LOCK),IVORY,TRIM0#
W(LOCK),SAND BEIGE,TRIM4#
W(LOCK),IVORY,TRIM0#
W(LOCK),SAND BEIGE,TRIM4#
W(LOCK),SAND BEIGE,TRIM4#
main71931-02030-A0×2iTGN51..GCC,IDN,MA,TH;TGN61..IDSUV..(GCC,IDN);GGN60,KUN50,61,TGN61..(5F,5FC)..(ANCOM,LA,MA);GGN50,KUN51,60,TGN61..(SUVW,THSUV)..SR..(ANCOM,GCC,GEN,IDN,LA,PHL,TH)200501-200903
W/O(LOCK),IVORY,TRIM0#
main71931-02030-E2×2supersedes 71931-02030-E2iKUN50,TGN61..4FC..(IDN,LA,MA,TH);GGN50,60,KUN51,6#,TGN51..SR..(ANCOM,GEN,IDN,IND,LA,MA,TH,VN)200808-201204
W/O(LOCK),SAND BEIGE,TRIM4#
W/O(LOCK),IVORY,TRIM0#
main71931-02060-E1×2supersedes 71931-02060-E1iKUN51..LHD..SA;KUN51,61..4FC..SA;GGN50,60,LAN50,TGN51..SA200810-201108
W/O(LOCK),SAND BEIGE,TRIM4#
72120TRACK ASSY, FRONT SEAT, OUTER LH
main72120-0K020supersedes 72120-0K020iTGN61..5F..LA;TGN61..IDSUV..GCC;GGN60,KUN61,LAN50,TGN51..LHD..(ANCOM,GCC,LA,SA);GGN50,KUN51,60,TGN61..(SUVW,THSUV)..SR..(ANCOM,GCC,GEN,LA,PHL)200504-200903
72138BCOVER, SEAT TRACK, LH
main72137-0K010-A0iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903
IVORY,TRIM0#
main72137-0K010-E0iGGN50..LHD;GGN50..5FC..SA;TGN51..GCC,IDN,MA,SA;GGN60,KUN50..4FC,5FC;KUN51,6#,LAN50,TGN61200808-201204
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
72140ATRACK ASSY, FRONT SEAT,INNER LH
main72140-0K020supersedes 72140-0K020iTGN61..5F..LA;TGN61..IDSUV..GCC;GGN60,KUN61,LAN50,TGN51..LHD..(ANCOM,GCC,LA,SA);GGN50,KUN51,60,TGN61..(SUVW,THSUV)..SR..(ANCOM,GCC,GEN,LA,PHL)200504-200903
sub72140-0K021
sub73214-0K010
72158BCOVER, SEAT TRACK BRACKET, INNER LH
main72158-0K010-A0iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903
IVORY,TRIM0#
main72158-0K010-E0iGGN50..LHD;GGN50..5FC..SA;TGN51..GCC,IDN,MA,SA;GGN60,KUN50..4FC,5FC;KUN51,6#,LAN50,TGN61200808-201204
SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#
72201BHANDLE SUB-ASSY, SEAT TRACK LH
main72211-0K010supersedes 72211-0K010iKUN51..RHD;TGN61..5F..LA;TGN61..IDSUV..(GCC,IDN);KUN51..(SUVW,THSUV)..(GEN,LA,PHL);GGN60,TGN51..(4FC,5F)..(GCC,IDN,MA,SA,TH);GGN50,KUN50,61,LAN50..(SUVW,THSUV)..(5F200501-200903
72409SHAFT SUB-ASSY, VERTICAL ADJUSTING
main72409-0K010supersedes 72409-0K010iKUN6#..RHD..SUVW..5F;GGN50,60,KUN51,LAN50,TGN51,61..RHD200501-200810
main72409-0K020supersedes 72409-0K020iTGN61..5F..LA;TGN61..IDSUV..GCC;GGN60,KUN61,LAN50,TGN51..LHD..(ANCOM,GCC,LA,SA);GGN50,KUN51,60,TGN61..(SUVW,THSUV)..SR..(ANCOM,GCC,GEN,LA,PHL)200504-200903
72422BROD, FRONT SEAT ADJUSTTER
main72422-0K020supersedes 72422-0K020iTGN61..5F..LA;TGN61..IDSUV..GCC;GGN60,KUN61,LAN50,TGN51..LHD..(ANCOM,GCC,LA,SA);GGN50,KUN51,60,TGN61..(SUVW,THSUV)..SR..(ANCOM,GCC,GEN,LA,PHL)200504-200903
72448PIN, FR SEAT ADJUSTER, NO.2 RH
main72448-0K010supersedes 72448-0K010iKUN6#..RHD..SUVW..5F;GGN50,60,KUN51,LAN50,TGN51,61..RHD200501-200810
72448APIN, FR SEAT ADJUSTER, NO.2 LH
main72448-0K010supersedes 72448-0K010iTGN61..5F..LA;TGN61..IDSUV..GCC;GGN60,KUN61,LAN50,TGN51..LHD..(ANCOM,GCC,LA,SA);GGN50,KUN51,60,TGN61..(SUVW,THSUV)..SR..(ANCOM,GCC,GEN,LA,PHL)200504-200903
72457DKNOB, VERTICAL SEAT ADJUSTER, LH
IVORY,TRIM0#
SAND BEIGE,TRIM4#
main72457-0K020-A0iLAN50,TGN51..LHD;TGN61..IDSUV..GCC;GGN50,KUN51,60,TGN61..(SUVW,THSUV)..(GCC,GEN,PHL)200504-200810
IVORY,TRIM0#
main72457-0K020-E1supersedes 72457-0K020-E1iKUN51..LHD..(GEN,SA);GGN50,60,KUN60,LAN50,TGN51..LHD..(5F,5FC)..(GEN,SA,VN)200808-201202
SAND BEIGE,TRIM4#
72503ARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH
main72503-0K010supersedes 72503-0K010iKUN60,LAN50..RHD;KUN51..5F..(IND,TH);KUN51,TGN61..RHD..(GEN,IDN)200808-201201
main72503-0K030supersedes 72503-0K030iTGN61..IDSUV..GCC;LAN50,TGN51..LHD..(GCC,SA);GGN60,KUN50,61,TGN61..(5F,5FC)..(ANCOM,LA,MA);GGN50,KUN51,60,TGN61..(SUVW,THSUV)..SR..(ANCOM,GCC,GEN,LA,PHL)200504-200903
72503AARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH
main72503-0K020supersedes 72503-0K020iTGN61..5F..LA;TGN61..IDSUV..GCC;GGN60,KUN61,LAN50,TGN51..LHD..(ANCOM,GCC,LA,SA);GGN50,KUN51,60,TGN61..(SUVW,THSUV)..SR..(ANCOM,GCC,GEN,LA,PHL)200504-200903
main72503-0K040supersedes 72503-0K040iKUN51..4FC..SA;KUN60,LAN50..RHD;KUN51..SUVW..(GEN,IND,TH);GGN50,60,KUN50,61,TGN51,61..RHD..(4FC,5FC)200808-201201
sub72503-0K041
sub73214-0K010
72504ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH
main72504-0K010supersedes 72504-0K010iKUN60,LAN50..RHD;KUN51..5F..(IND,TH);KUN51,TGN61..RHD..(GEN,IDN)200808-201201
main72504-0K040supersedes 72504-0K040iTGN61..IDSUV..GCC;LAN50,TGN51..LHD..(GCC,SA);GGN60,KUN50,61,TGN61..(5F,5FC)..(ANCOM,LA,MA);GGN50,KUN51,60,TGN61..(SUVW,THSUV)..SR..(ANCOM,GCC,GEN,LA,PHL)200504-200903
sub72504-0K041
sub73214-0K010
72504AARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH
main72504-0K020supersedes 72504-0K020iTGN61..5F..LA;TGN61..IDSUV..GCC;GGN60,KUN61,LAN50,TGN51..LHD..(ANCOM,GCC,LA,SA);GGN50,KUN51,60,TGN61..(SUVW,THSUV)..SR..(ANCOM,GCC,GEN,LA,PHL)200504-200903
main72504-0K030supersedes 72504-0K030iKUN51..4FC..SA;KUN60,LAN50..RHD;KUN51..SUVW..(GEN,IND,TH);GGN50,60,KUN50,61,TGN51,61..RHD..(4FC,5FC)200808-201201
72526AHANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-0K040-A0iKUN51..RHD;TGN61..5F..LA;TGN61..IDSUV..(GCC,IDN);KUN51..(SUVW,THSUV)..(GEN,LA,PHL);GGN60,TGN51..(4FC,5F)..(GCC,IDN,MA,SA,TH);GGN50,KUN50,61,LAN50..(SUVW,THSUV)..(5F200501-200903
IVORY,TRIM0#
main72526-0K040-E1supersedes 72526-0K040-E1iKUN51..LHD..SA;TGN51..IDN,MA,SA;KUN60,LAN50..IDN,SA,TH,VN;GGN50,KUN51..(4FC,5FC)..SA;GGN50,KUN51..ANCOM,GEN,IND,LA,TH;GGN60,KUN50,61,TGN61..(4FC,5FC)..(ANCOM,GEN,ID200808-201204
SAND BEIGE,TRIM4#
72637GSPRING, SEATBACK, LH
main72637-0K010supersedes 72637-0K010iKUN51..LHD..SA;TGN51..IDN,MA,SA;TGN61..4FC..(IDN,LA,TH);KUN60,LAN50..IDN,SA,TH,VN;GGN50,KUN50,61..RHD..(4FC,5FC);GGN50,KUN51..ANCOM,GEN,IND,LA,TH;GGN60,KUN51..(4FC,200808-201204
SRS AIR BAG-WITH(DRIVER & PASSENGER)
72992COVER, FRONT SEAT CUSHION, LH
main72991-0K020supersedes 72991-0K020iTGN61..IDSUV..(GCC,IDN);LAN50,TGN51..GCC,IDN,MA,SA,TH;GGN60,KUN50,61,TGN61..(5F,5FC)..(ANCOM,LA,MA);GGN50,KUN51,60,TGN61..(SUVW,THSUV)..SR..(ANCOM,GCC,GEN,IDN,LA,PH200501-200903
FOR POWER SEAT
FOR POWER SEAT
443440K010SEAT, SPRING(FOR VANE PUMP)
main44344-0K010
727020K100BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-0K100
791690K080ROD, REAR SEAT HINGE CONNECTOR
main79169-0K080
9011910921
main90119-10921
90119T0001
main90119-T0001
9016740044
main90167-40044
9052001006
main90520-01006
91621B0816
main91621-B0816
91622B1018
main91622-B1018
9616000600
main96160-00600
40 parts on this diagram · 14 diagrams in section
