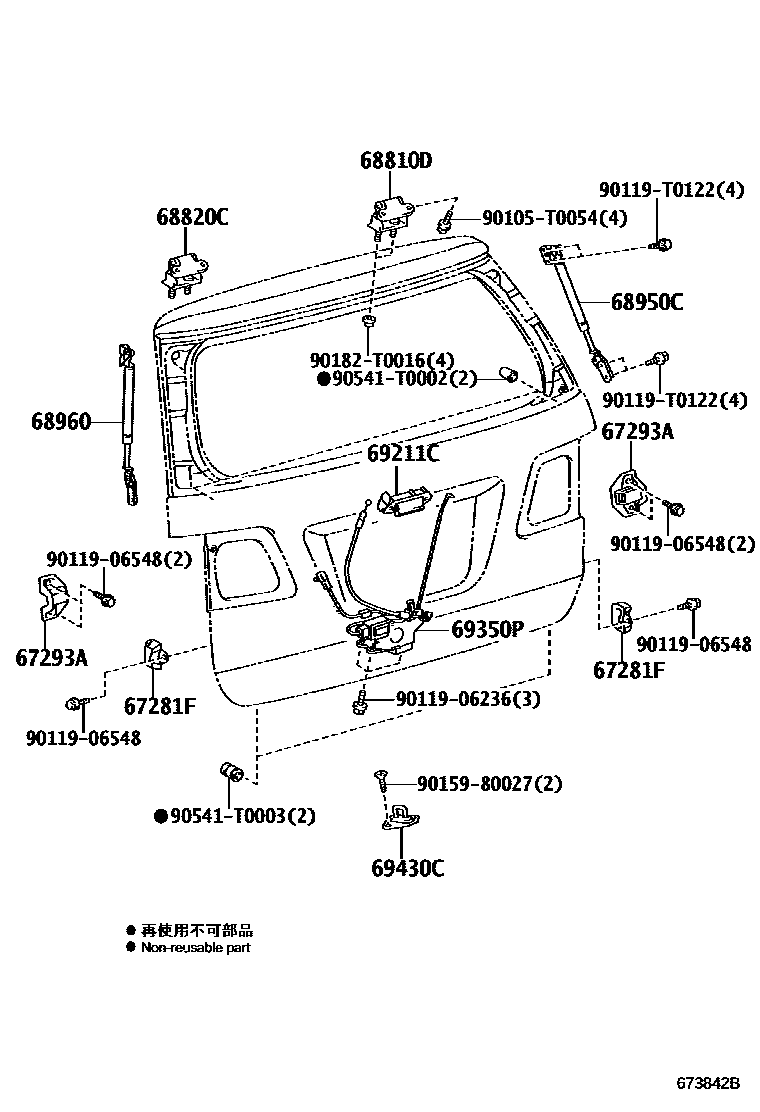

BACK DOOR LOCK & HINGE

67281FSTOPPER, BACK DOOR, LOWER

main67281-0K020iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

67293ACUSHION, BACK DOOR STOPPER

main67293-0K020iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

main67293-0K030iKUN51..IND201106

68810DHINGE ASSY, BACK DOOR, RH

main68810-0K010iGGN50,KUN5#,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,TH)200501-201107

main68810-0K040iGGN60..ANCOM;GGN60,KUN61,TGN61..5F..(LA,SA);GGN50,TGN51,61..IDSUV..(GCC,IDN);GGN50,KUN51,LAN50,TGN51..ANCOM,LA,SA200509-200903

main68810-0K050iKUN51..IND200908

68820CHINGE ASSY, BACK DOOR, LH

main68810-0K010iGGN50,KUN5#,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,TH)200501-201107

main68810-0K040iGGN50..5FC..SA;GGN50..ANCOM,LA;GGN60..SUVW..5FC;KUN51,61,LAN50,TGN51,61..LA,SA;GGN50,KUN51,60,TGN51,61..IDSUV200509-200903

main68810-0K050iKUN51..IND200908

68950CSTAY ASSY, BACK DOOR, RH

main68950-0K010iGGN50,KUN5#,60,TGN51,61..GCC,GEN,IDN,MA,PHL,TH200501-200804

sub68950-0K110

main68950-0K020iGGN50,60,KUN51,61,LAN50,TGN51,61..ANCOM,LA,SA200509-200804

sub68950-0K120

main68950-0K110iTGN61..IDSUV..(GCC,IDN);GGN50,KUN50,TGN51..GCC,GEN,IDN,MA;KUN51,60,TGN61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)200805-201111

sub68950-0K250

main68950-0K120iGGN60..ANCOM;GGN60,KUN61,TGN61..5F..(LA,SA);GGN50,KUN51,LAN50,TGN51..ANCOM,LA,SA200805-201111

sub68950-0K260

main68950-0K250iKUN51,60,TGN51201111

sub68950-0K251

main68950-0K260iGGN50,60201111

sub68950-0K261

68960STAY ASSY, BACK DOOR, LH

main68960-0K010iGGN50,KUN5#,60,TGN51,61..GCC,GEN,IDN,MA,PHL,TH200501-200804

sub68960-0K110

main68960-0K020iGGN50,60,KUN51,61,LAN50,TGN51,61..ANCOM,LA,SA200509-200804

sub68960-0K120

main68960-0K110iGGN60..GEN200805-201111

sub68960-0K250

main68960-0K120iGGN60..ANCOM;GGN60,KUN61,TGN61..5F..(LA,SA);GGN50,KUN51,LAN50,TGN51..ANCOM,LA,SA200805-201111

sub68960-0K260

main68960-0K250iKUN51,60,TGN51201111

sub68960-0K251

main68960-0K260iGGN50,60201111

sub68960-0K261

69211CHANDLE, BACK DOOR OUTSIDE

main69023-0K020iGGN50,60,KUN51,61,TGN61..ANCOM,LA200509-200903

main69023-0K030iGGN60..GEN200501-201107

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-0K010iGGN50,KUN51,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)200501-201107

main69350-0K070iGGN50..ANCOM,LA;GGN60..SUVW..5FC;GGN50,KUN50..RHD..(4FC,5FC);GGN50,KUN51,60,TGN51,61..IDSUV;KUN51,6#,LAN50,TGN51,61..LA,MA,SA,VN200508-201204

main69350-0K100iTGN51,61..IDSUV200610-200611

main69350-0K120iKUN51..IND200908-201201

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-0K010iGGN50,KUN51,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)200501-201107

sub69430-0K140

main69430-0K030iGGN60..ANCOM;GGN50,TGN51,61..IDSUV..(GCC,IDN);GGN60,KUN51,TGN51..(4FC,5F)..(LA,MA,SA);GGN50,KUN50,61,LAN50,TGN61..(5F,5FC)..(ANCOM,LA,MA,SA)200508-200903

sub69430-0K150

main69430-0K040iKUN51..IND200908

sub69430-0K110

90105T0054

main90105-T0054

9011906236

main90119-06236

9011906548

main90119-06548

90119T0122

main90119-T0122

9015980027

main90159-80027

90182T0016

main90182-T0016

90541T0002

main90541-T0002

90541T0003

main90541-T0003

17 parts on this diagram · 1 diagram in section
