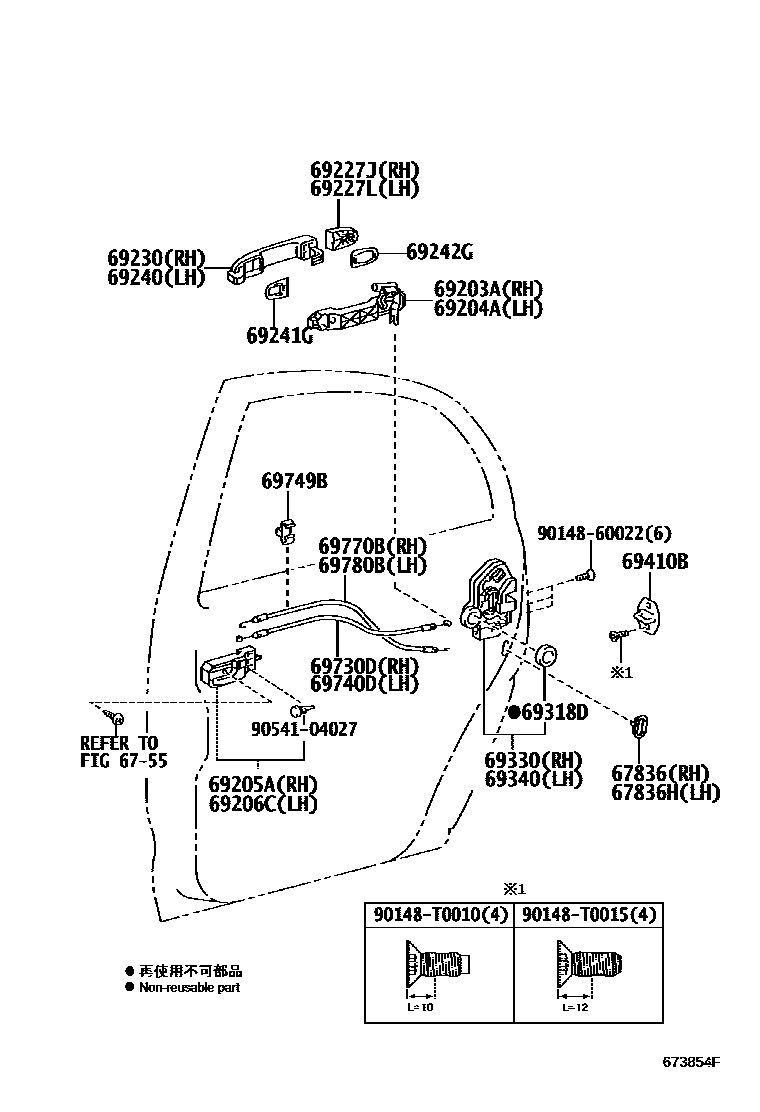

REAR DOOR LOCK & HANDLE

6755

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-02030iKUN50..4FC;GGN50,KUN51,6#,TGN51,61..GCC,GEN,IDN,MA,PHL,TH,VN200501-201107

main67836-0K020iKUN51..IND201102

main67836-12040iGGN60..ANCOM;GGN60,KUN61,TGN61..5F..(LA,SA);GGN50,KUN51,LAN50,TGN51..ANCOM,LA,SA200509-200903

67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH

main67836-02030iTGN61..IDSUV..(GCC,IDN);GGN50,KUN50,TGN51..GCC,GEN,IDN,MA,TH;KUN51,60,TGN61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)200501-201107

main67836-0K020iKUN51..IND201102

main67836-12040iGGN60..ANCOM;GGN60,KUN61,TGN61..5F..(LA,SA);GGN50,KUN51,LAN50,TGN51..ANCOM,LA,SA200509-200903

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-0K010iGGN60,KUN50..(5F,5FC)..(ANCOM,MA);GGN50,KUN51,60,TGN51,61..(SUVW,THSUV)..(ANCOM,GCC,GEN,IDN,MA,PHL,TH)200501-201203

sub69203-0K011

sub69241-42020

main69203-0K011iGGN50,60201203-201204

main69203-0K020iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-201108

main69203-0K030iTGN61..5F..LA;GGN50,KUN51,61..LA200509-201009

main69203-0K040iGGN50,TGN51,61..IDSUV200610-201107

main69203-0K060iKUN51..IND200908-201201

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-0K010iGGN60,KUN50,61..(4FC,5FC)..(ANCOM,GEN,MA,TH);GGN50,KUN51,60,TGN51,61..(SUVW,THSUV)..(ANCOM,GCC,GEN,IDN,MA,PHL,TH,VN)200501-201203

sub69204-0K011

sub69241-42020

main69204-0K011iGGN50,60201203-201204

main69204-0K020iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-201108

main69204-0K040iGGN50,TGN51,61..IDSUV200610-201107

main69204-0K050iTGN61..4FC..LA200509-201009

main69204-0K060iKUN51..IND200908-201201

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-0D080-A0iGGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN50,KUN50,61,LAN50..(SUVW,THSUV)..(5F,5FC);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH)200501-200903

IVORY,TRIM0#

sub69205-0D080

main69205-0D080-B3iKUN50,TGN51..MA200809-201109

GRAY,TRIM1#

sub69205-0D080

main69205-0D080-E3iGGN50..5FC..SA;GGN60,KUN50..4FC,5FC;GGN50..LHD..(SUVW,THSUV);KUN51,6#,LAN50,TGN51,61..SUVW,THSUV200808-201112

SAND BEIGE,TRIM4#

sub69205-0D080

main69205-0D080-E3iGGN50,60,KUN51,60,TGN51201112-201204

SAND BEIGE,TRIM4#,*299,*300

sub69205-0D080

main69205-0K020-A0iGGN50,TGN51,61..IDSUV200610-200808

IVORY,TRIM0#

main69205-0K020-E1iGGN50,KUN51,60,TGN51,61..IDSUV200808-201107

SAND BEIGE,TRIM4#

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-0D080-A0iGGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN50,KUN50,61,LAN50..(SUVW,THSUV)..(5F,5FC);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH)200501-200903

IVORY,TRIM0#

sub69206-0D080

main69206-0D080-B3iKUN50,TGN51..MA200809-201109

GRAY,TRIM1#

sub69206-0D080

main69206-0D080-E3iGGN50,60,KUN51,60,TGN51201112-201204

SAND BEIGE,TRIM4#,*299,*300

sub69206-0D080

main69206-0D080-E3iGGN50..5FC..SA;GGN60,KUN50..4FC,5FC;GGN50..LHD..(SUVW,THSUV);KUN51,6#,LAN50,TGN51,61..SUVW,THSUV200808-201112

SAND BEIGE,TRIM4#

sub69206-0D080

main69206-0K020-A0iGGN50,TGN51,61..IDSUV200610-200808

IVORY,TRIM0#

main69206-0K020-E1iGGN50,KUN51,60,TGN51,61..IDSUV200808-201107

SAND BEIGE,TRIM4#

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-02070iKUN50200508-201109

BLACK

main69227-02130iGGN50,KUN51..LA200509-200910

LESS COLOR

main69227-06030iKUN51..IND200501-201108

*CR

sub69227-06031

main69227-06030iGGN50,60,KUN51,6#,TGN51,61..(SUVW,THSUV)..(ANCOM,GCC,GEN,IDN,MA,PHL,TH,VN)200808-201204

*CR,*299

sub69227-06031

main69227-0K020iKUN61,TGN61..LA200509-201009

BLACK

main69227-0K040iGGN50,KUN51,60,TGN51,61..IDSUV200610-201107

*CR

main69227-0K110iKUN51..IND201108-201201

*CR

main69227-12080iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-201108

*CR

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69227-02070iKUN50200508-201109

BLACK

main69227-02130iKUN51..LA200509-200910

LESS COLOR

main69227-06030iGGN50,60,KUN51,6#,TGN51,61..(SUVW,THSUV)..(ANCOM,GCC,GEN,IDN,MA,PHL,TH,VN)200808-201204

*CR,*299

sub69227-06031

main69227-06030iGGN50,KUN51..(SUVW,THSUV)..(ANCOM,GCC,GEN,PHL,TH);GGN60,KUN60,TGN51,61..SUVW..(ANCOM,GCC,IDN,MA,PHL,TH)200501-201108

*CR

sub69227-06031

main69227-0K020iKUN61,TGN61..5F..LA200509-201009

BLACK

main69227-0K040iGGN50,KUN51,60,TGN51,61..IDSUV200610-201107

*CR

main69227-0K110iKUN51..IND201108-201201

*CR

main69227-12080iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-201108

*CR

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-06040iGGN50,60,KUN51,6#,TGN51,61..(SUVW,THSUV)..(GEN,IDN,PHL,TH)200501-201204

PLATED

main69210-0K010iGGN50,KUN51,60,TGN51,61..IDSUV200610-201107

PLATED

main69210-0K030iKUN51..IND201108-201201

PLATED

main69210-12260iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-201108

PLATING

main69211-02130iKUN50200508-201109

NO PAINT REQ.

main69211-02180iGGN50,KUN51..LA200509-200910

PAINT REQ.

main69211-0K010iKUN61,TGN61..5F..LA200509-201009

NO PAINT REQ.

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69210-06040iKUN60,TGN51..VN200501-201204

PLATED

main69210-0K010iGGN50,KUN51,60,TGN51,61..IDSUV200610-201107

PLATED

main69210-0K030iKUN51..IND201108-201201

PLATED

main69210-12260iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-201108

PLATING

main69211-02130iKUN50200508-201109

NO PAINT REQ.

main69211-02180iGGN50,KUN51..LA200509-200910

PAINT REQ.

main69211-0K010iKUN61,TGN61..5F..LA200509-201009

NO PAINT REQ.

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-02050iKUN51,61,TGN61..LA200509-201009

main69241-02060iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-201108

main69241-06020iKUN51..IND200908-201112

main69241-06030iGGN60,KUN50..(5F,5FC)..(ANCOM,MA);GGN50,KUN51,60,TGN51,61..(SUVW,THSUV)..(ANCOM,GCC,GEN,IDN,MA,PHL,TH)200501-201109

main69241-42020iGGN50,TGN51,61..IDSUV200610-201201

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-02050iTGN61..4FC..LA200509-201009

main69242-02060iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-201108

main69242-06020iGGN50,60..ANCOM200501-201109

main69242-42010iKUN51..IND;GGN50,KUN51,60,TGN51,61..IDSUV200610-201201

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iGGN50,TGN51..IDSUV..GCC200504-201107

69330LOCK ASSY, REAR DOOR, RH

main69050-0K010iGGN50,KUN5#,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,TH)200501-201107

main69050-0K030iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

main69050-0K040iGGN50,60..5FC..SA;KUN51,61,LAN50,TGN51..SA;GGN50,KUN51,60,TGN51,61..IDSUV200602-201108

main69050-0K050iKUN51..IND200908

69340LOCK ASSY, REAR DOOR, LH

main69060-0K010iGGN50,KUN5#,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,TH)200501-201107

main69060-0K030iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

main69060-0K040iTGN61..IDSUV..IDN;GGN50,TGN51..IDSUV200602-201108

main69060-0K050iKUN51..IND200908

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-0K010iGGN60..GEN200501-201107

main69410-0K030iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

main69410-0K040iGGN50,60..5FC..SA;KUN51,61,LAN50,TGN51..SA;GGN50,KUN51,60,TGN51,61..IDSUV200602-201108

main69410-0K050iKUN51..IND200908

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-0K040iTGN61..IDSUV..(GCC,IDN);GGN50,KUN50,TGN51..GCC,GEN,IDN,MA,TH;KUN51,60,TGN61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)200501-201107

main69730-0K050iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-201108

main69730-0K060iGGN50,60,KUN51,61,TGN61..ANCOM,LA200509-200903

main69730-0K120iKUN51..IND200908

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-0K040iKUN50..4FC;GGN50,KUN51,6#,TGN51,61..GCC,GEN,IDN,MA,PHL,TH,VN200501-201107

main69730-0K050iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-201108

main69730-0K060iGGN50,60,KUN51,61,TGN61..ANCOM,LA200509-200903

main69730-0K120iKUN51..IND200908

69749BCLAMP, REAR DOOR LOCK LINK

main69749-32040iGGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)200501-201107

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69750-0K040iTGN61..IDSUV..(GCC,IDN);GGN50,KUN50,TGN51..GCC,GEN,IDN,MA,TH;KUN51,60,TGN61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)200501-201107

main69750-0K050iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-201108

main69750-0K060iGGN50,60,KUN51,61,TGN61..ANCOM,LA200509-200903

main69770-0K110iKUN51..IND200908

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69760-0K040iKUN50..4FC;GGN50,KUN51,6#,TGN51,61..GCC,GEN,IDN,MA,PHL,TH,VN200501-201107

main69760-0K050iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-201108

main69760-0K060iGGN50,60,KUN51,61,TGN61..ANCOM,LA200509-200903

main69780-0K110iKUN51..IND200908

9014860022

main90148-60022

90148T0010

main90148-T0010

90148T0015

main90148-T0015

9054104027

main90541-04027

26 parts on this diagram · 1 diagram in section
