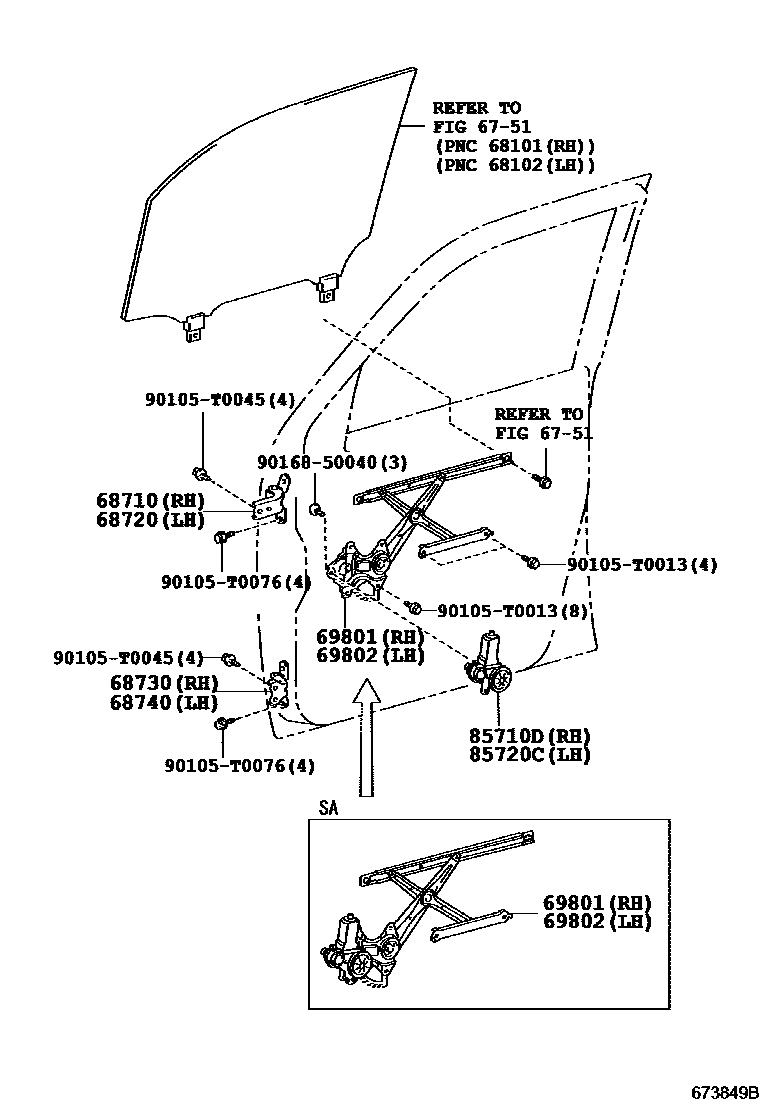

FRONT DOOR WINDOW REGULATOR & HINGE

6751

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02070iGGN50,60,KUN51,61,LAN50,TGN51..SA200810-201108

main68710-0D030iGGN50,KUN5#,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,TH)200501-200809

main68710-0K020iGGN50,TGN51,61..IDSUV200610-200808

main68710-0K030iKUN51..IND200908

main68710-12150iGGN50,60,KUN51,61,LAN50,TGN51,61..ANCOM,LA,SA200509-200609

main68710-12151iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200610-200903

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02070iGGN50,60,KUN51,61,LAN50,TGN51..SA200810-201108

main68720-0D030iGGN50,KUN5#,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,TH)200501-200809

main68720-0K020iGGN50,KUN51,60,TGN51,61..IDSUV200808-201107

main68720-0K030iKUN51..IND200908

main68720-12150iGGN50,60,KUN51,61,LAN50,TGN51,61..ANCOM,LA,SA200509-200609

main68720-12151iGGN50,60,KUN51,61,LAN50,TGN51..SA200610-200703

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02020iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810

main68730-0K020iGGN50,TGN51,61..IDSUV200610-200808

main68730-0K030iKUN51..IND200908

main68730-52010iGGN50,60,KUN50..RHD..(4FC,5FC);GGN50..(SUVW,THSUV)..(GCC,GEN);KUN51,6#,LAN50,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,SA,TH,VN)200808

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02020iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810

main68740-0K020iGGN50,TGN51,61..IDSUV200610-200808

main68740-0K030iKUN51..IND200908

main68740-52010iGGN60..GEN200808-201107

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-0K010iTGN61..IDSUV..(GCC,IDN);GGN50,KUN50,TGN51..GCC,GEN,IDN,MA,TH;KUN51,60,TGN61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)200501-200809

main69801-0K011iGGN50,KUN5#,6#,TGN51,61..GCC,GEN,IDN,IND,MA,PHL,TH,VN200909

main69801-0K050iGGN50,60,KUN51,61,TGN61..ANCOM,LA200509-200808

main69801-0K051iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200809-200903

main69801-0K052iGGN50,60,KUN51,61,TGN61..ANCOM,LA201004

main69810-0K040iGGN50,60,KUN51,61..SA200602-200710

main69810-0K041iKUN51,LAN50,TGN51..LHD..SA200903-201108

main69810-0K140iGGN50,60,KUN51,61..RHD..SA200710-200810

main69810-0K141iGGN50,60,KUN51,61,LAN50..RHD..SA200903-201108

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-0K010iKUN51,60..IDN,IND,PHL,TH;KUN50,61,TGN51,61..4FC..(IDN,MA,PHL,TH)200808-200909

main69802-0K011iGGN50,KUN5#,6#,TGN51,61..GCC,GEN,IDN,IND,MA,PHL,TH,VN200909

main69802-0K050iGGN50,60,KUN51,61,TGN61..ANCOM,LA200509-200808

main69802-0K051iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200809-200903

main69802-0K052iGGN50,60,KUN51,61,TGN61..ANCOM,LA201004

main69820-0K040iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200810

main69820-0K041iGGN50,60,KUN51,61,LAN50..RHD..SA200903-201108

main69820-0K140iKUN51,LAN50,TGN51..LHD..SA200810-200902

main69820-0K141iKUN51,LAN50,TGN51..LHD..SA200903-201108

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0K010iGGN60..GEN200808-201107

main85710-0K030iKUN60..SUVW..IDN;KUN5#,TGN51,61..IDN,MA,TH200501-200809

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0K010iKUN51,60,TGN61..PHL200808-200908

main85720-0K050iKUN51..LHD..(GEN,LA);GGN50,KUN61,TGN61..LA200808

90105T0013

main90105-T0013

90105T0045

main90105-T0045

90105T0076

main90105-T0076

9016850040

main90168-50040

13 parts on this diagram · 1 diagram in section
