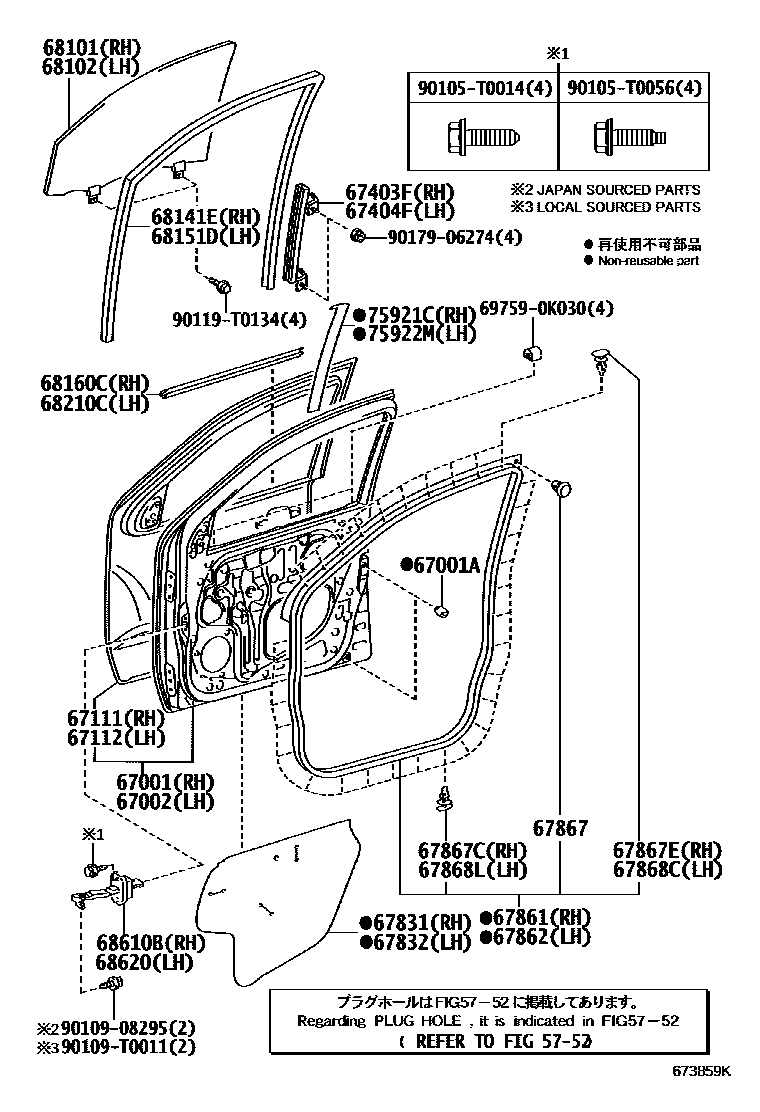

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5752HOLE PLUG

→ Go to FIG 57-52

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0K010iTGN61..IDSUV..(GCC,IDN);GGN50,KUN50,TGN51..GCC,GEN,IDN,MA,TH;KUN51,60,TGN61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)200501-201107

main67001-0K060iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-201108

main67001-0K070iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

67001ACUSHION, FRONT DOOR PANEL

main90541-09069iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0K010iTGN61..IDSUV..(GCC,IDN);GGN50,KUN50,TGN51..GCC,GEN,IDN,MA,TH;KUN51,60,TGN61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)200501-201107

main67002-0K060iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-201108

main67002-0K070iGGN50,60,KUN51,61,TGN61..ANCOM,LA200509-200903

67111PANEL, FRONT DOOR, OUTER RH

main67111-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

67112PANEL, FRONT DOOR, OUTER LH

main67112-0K010iGGN60..GEN200501-201107

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0K010iGGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)200501-201107

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0K010iGGN60..GEN200501-201107

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0K010iGGN60..GEN200501-201107

main67831-0K020iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-201108

main67831-0K030iGGN50,60,KUN51,61,TGN61..ANCOM,LA200509-200903

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-0K010iKUN50..4FC;GGN50,KUN51,6#,TGN51,61..GCC,GEN,IDN,IND,MA,PHL,TH,VN200501-201107

main67831-0K020iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-201108

main67831-0K030iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0K010iKUN51,60,TGN51,61200501-200506

main67861-0K011iKUN51,61,TGN61..LA200507-200909

main67861-0K012iGGN50,KUN51..GEN200512-200801

main67861-0K013iGGN60..GEN200910-201107

main67861-0K070iKUN51,61,TGN61..LA200802-200909

main67861-0K071iGGN50,KUN51,61,TGN61..LA200910

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0K010iKUN51,60,TGN51,61200501-200506

main67862-0K011iKUN51,61,TGN61..LA200507-200909

main67862-0K012iGGN50,KUN51..GEN200512-200801

main67862-0K013iGGN60..GEN200910-201107

main67862-0K070iKUN51,61,TGN61..LA200802-200909

main67862-0K071iGGN50,KUN51,61,TGN61..LA200910

67867CLIP, DOOR WEATHERSTRIP

main90467-06084iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

67867ERETAINER, FRONT DOOR LOWER PROTECTOR, RH

main67867-52040iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-52010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-12150iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0K010iTGN51..GCC,IDN,MA;GGN50,KUN5#,60,TGN61..GCC,GEN,IDN,MA,PHL,TH200501-201105

*TT,T=3.5,GREEN

main68101-0K011iKUN50,TGN51..MA201106-201109

*TT,T=3.5,GREEN

main68101-0K020iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-201105

*TT,T=3.5,GREEN

main68101-0K021iGGN50,60,KUN51,61,LAN50,TGN51..SA201106-201108

*TT,T=3.5,GREEN

main68101-0K030iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-201108

*TT,T=3.5,GREEN

main68101-0K031iGGN50,60,KUN51,61,TGN61..LHD201109

*TT,T=3.5,GREEN

main68101-0K110iGGN50,KUN51,6#,TGN51,61..GCC,GEN,IDN,PHL,TH,VN200801-201108

*TT,T=3.5,GREEN

main68101-0K111iKUN60,TGN51201109

*TT,T=3.5,GREEN

main68101-0K130iKUN51..IND200908-201105

*TEM,T=3.5,GREEN

main68101-0K131iKUN51..IND201106

*TEM,T=3.5,GREEN

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0K010iTGN51..TH200501-201105

*TT,T=3.5,GREEN

main68102-0K011iKUN50,TGN51..MA201106-201109

*TT,T=3.5,GREEN

main68102-0K020iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-201105

*TT,T=3.5,GREEN

main68102-0K021iGGN50,60,KUN51,61,LAN50,TGN51..SA201106-201108

*TT,T=3.5,GREEN

main68102-0K030iGGN50,60,KUN51,61,TGN61..ANCOM,LA200509-201108

*TT,T=3.5,GREEN

main68102-0K031iGGN50,60,KUN51,61,TGN61..LHD201109

*TT,T=3.5,GREEN

main68102-0K110iGGN50,KUN51,6#,TGN51,61..GCC,GEN,IDN,PHL,TH,VN200801-201108

*TT,T=3.5,GREEN

main68102-0K111iKUN60,TGN51201109

*TT,T=3.5,GREEN

main68102-0K130iKUN51..IND200908-201105

*TEM,T=3.5,GREEN

main68102-0K131iKUN51..IND201106

*TEM,T=3.5,GREEN

68141ERUN, FRONT DOOR GLASS, RH

main68141-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

68151DRUN, FRONT DOOR GLASS, LH

main68151-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68161-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68162-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0K010iGGN60,KUN50,61..(4FC,5FC)..(GEN,MA,TH);GGN50,KUN51,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,TH,VN)200501-201202

main68610-0K020iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-201108

main68610-0K030iGGN50,60,KUN51,61,TGN61..ANCOM,LA200509-201204

main68610-0K040iGGN50,KUN51,60,TGN51,61..IDSUV200610-201107

main68610-0K050iKUN51..IND200908-201201

68620CHECK ASSY, FRONT DOOR, LH

main68620-0K010iGGN50,KUN5#,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,TH)200501-201202

main68620-0K020iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-201108

main68620-0K030iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-201204

main68620-0K040iGGN50,KUN51,60,TGN51,61..IDSUV200610-201107

main68620-0K050iKUN51..IND200908-201201

75921CTAPE, BLACK OUT, NO.1 RH

main75921-0K010iTGN51..TH200501-201107

75922MTAPE, BLACK OUT, NO.1 LH

main75922-0K010iTGN51..TH200501-201107

697590K030SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-0K030

90105T0014

main90105-T0014

90105T0056

main90105-T0056

9010908295

main90109-08295

90109T0011

main90109-T0011

90119T0134

main90119-T0134

9017906274

main90179-06274

34 parts on this diagram · 2 diagrams in section
