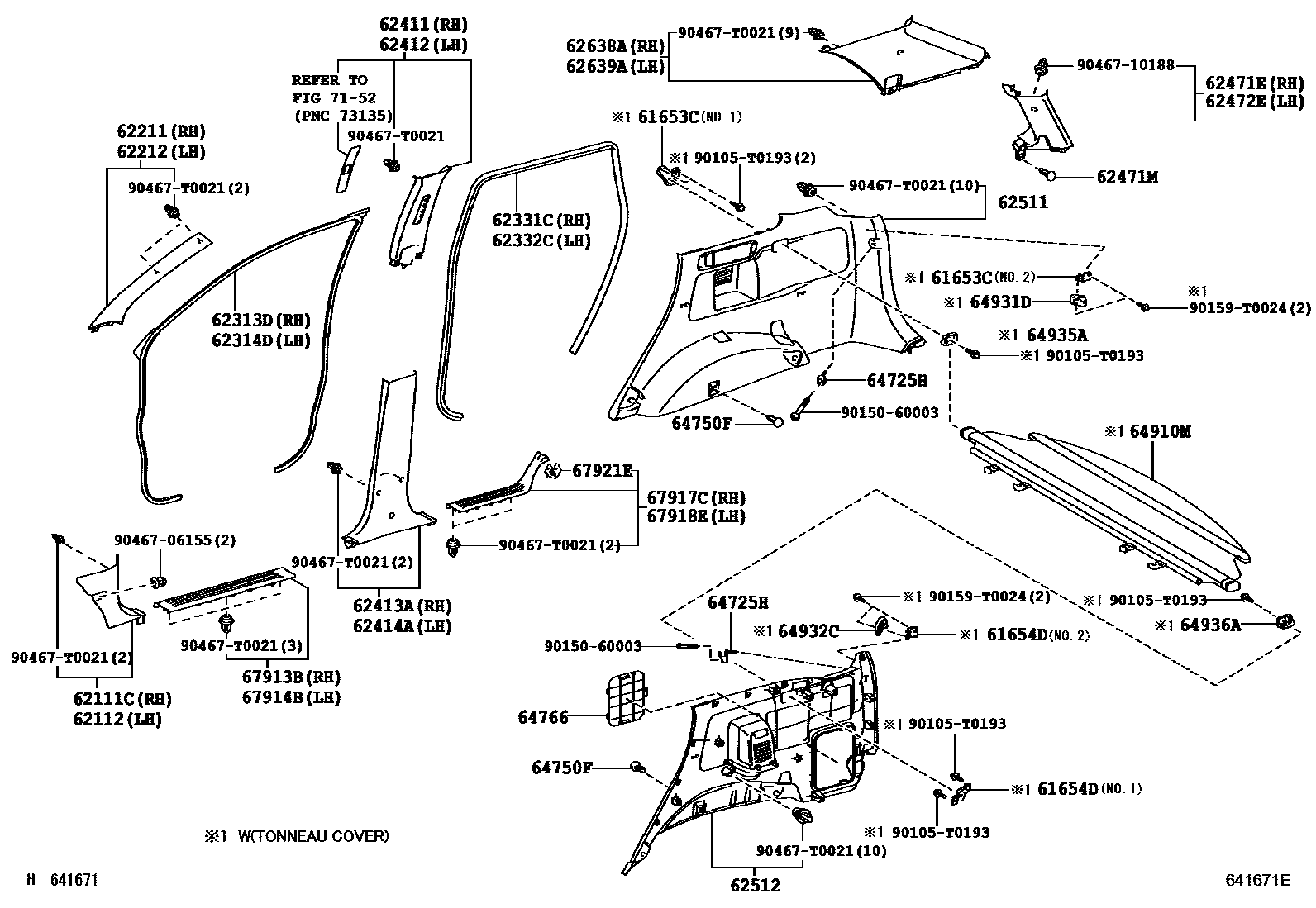

INSIDE TRIM BOARD

0001 1 0002 1 0003 1 0006 1

61653CBRACKET, DECK SIDE TRIM, RH

main61653-71010iKUN51..LA200509-200903

NO.1

main61653-71020iKUN51..LA200509-200903

NO.2

61654DBRACKET, DECK SIDE TRIM, NO.2

main61654-71010iKUN51..LA200509-200903

NO.1

main61654-71020iGGN60..ANCOM200509-200903

NO.2

62111CBOARD, COWL SIDE TRIM, RH

main62111-0K010-A0iGGN50,KUN5#,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,TH)200501-200809

IVORY,TRIM0#

sub62111-0K010

main62111-0K010-B0iKUN50,TGN51..MA200809-201109

GRAY,TRIM1#

sub62111-0K010

main62111-0K010-E0iGGN60,KUN50,61..(4FC,5FC)..(GEN,MA,TH);GGN50,KUN51,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,TH,VN)200808-201202

SAND BEIGE,TRIM4#

sub62111-0K010

main62111-0K020-A0iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200810

IVORY,TRIM0#

main62111-0K020-E0iGGN50,60,KUN51,61,LAN50,TGN51..SA200810-201108

SAND BEIGE,TRIM4#

main62111-0K030-A0iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

IVORY,TRIM0#

main62111-0K030-E0iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810-201204

SAND BEIGE,TRIM4#

main62111-0K060-A0iGGN50,TGN51,61..IDSUV..GCC200610-200808

IVORY,TRIM0#

main62111-0K060-E1iGGN50,KUN51,60,TGN51,61..IDSUV200808-201107

SAND BEIGE,TRIM4#

main62111-0K070-E1iKUN51..IND200908-201201

SAND BEIGE,TRIM4#

sub62111-0K070

62112BOARD, COWL SIDE TRIM, LH

main62112-0K010-A0iGGN50,KUN5#,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,TH)200501-200809

IVORY,TRIM0#

sub62112-0K010

main62112-0K010-B0iKUN50,TGN51..MA200809-201109

GRAY,TRIM1#

sub62112-0K010

main62112-0K010-E0iGGN60,KUN50,61..(4FC,5FC)..(GEN,MA,TH);GGN50,KUN51,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,TH,VN)200808-201202

SAND BEIGE,TRIM4#

sub62112-0K010

main62112-0K020-A0iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200810

IVORY,TRIM0#

main62112-0K020-E0iGGN50,60,KUN51,61,LAN50,TGN51..SA200810-201108

SAND BEIGE,TRIM4#

main62112-0K030-A0iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

IVORY,TRIM0#

main62112-0K030-E0iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810-201204

SAND BEIGE,TRIM4#

main62112-0K060-A0iGGN50,TGN51,61..IDSUV..GCC200610-200808

IVORY,TRIM0#

main62112-0K060-E1iGGN50,KUN51,60,TGN51,61..IDSUV200808-201107

SAND BEIGE,TRIM4#

main62112-0K070-E1iKUN51..IND200908-201201

SAND BEIGE,TRIM4#

sub62112-0K070

62211GARNISH, FRONT PILLAR, RH

main62211-0K020-A0iTGN51,61..IDSUV..GCC;GGN50,KUN50..GCC,GEN,MA;KUN51,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,TH)200501-200809

IVORY,TRIM0#

sub62211-0K020

main62211-0K020-B0iKUN50,TGN51..MA200809-201109

LT.GRAY,TRIM1#

sub62211-0K020

main62211-0K020-E0iKUN50..4FC;GGN50,60,KUN51,6#,TGN51,61..GCC,GEN,IDN,IND,MA,PHL,TH,VN200808-201202

SAND BEIGE,TRIM4#

sub62211-0K020

main62211-0K040-A0iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200810

IVORY,TRIM0#

main62211-0K040-E0iGGN50,60,KUN51,61,LAN50,TGN51..SA200810-201108

SAND BEIGE,TRIM4#

main62211-0K050-A0iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

IVORY,TRIM0#

main62211-0K050-E0iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810-201204

SAND BEIGE,TRIM4#

62212GARNISH, FRONT PILLAR, LH

main62212-0K020-A0iTGN51,61..IDSUV..IDN200501-200809

IVORY,TRIM0#

sub62212-0K020

main62212-0K020-B0iKUN50,TGN51..MA200809-201109

LT.GRAY,TRIM1#

sub62212-0K020

main62212-0K020-E0iKUN50..4FC;GGN50,60,KUN51,6#,TGN51,61..GCC,GEN,IDN,IND,MA,PHL,TH,VN200808-201202

SAND BEIGE,TRIM4#

sub62212-0K020

main62212-0K040-A0iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200810

IVORY,TRIM0#

main62212-0K040-E0iGGN50,60,KUN51,61,LAN50,TGN51..SA200810-201108

SAND BEIGE,TRIM4#

main62212-0K050-A0iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

IVORY,TRIM0#

main62212-0K050-E0iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810-201204

SAND BEIGE,TRIM4#

62313DTRIM, FRONT DOOR OPENING, RH

main62311-0K010iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH)200501-201107

main62311-0K050iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

sub62311-0K010

62314DTRIM, FRONT DOOR OPENING, LH

main62312-0K010iGGN50..GCC,GEN;GGN50,60,KUN50..RHD..(4FC,5FC);KUN51,6#,LAN50,TGN51,61..GCC,GEN,IDN,IND,MA,PHL,SA,TH,VN200501-201107

main62312-0K050iGGN50,60,KUN51,61,TGN61..ANCOM,LA200509-200903

sub62312-0K010

62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-0K020iGGN50..GCC,GEN;GGN50,60..5FC..SA;KUN51,6#,LAN50,TGN51,61..GCC,GEN,IDN,IND,PHL,SA,TH,VN200501-201108

main62331-0K060iGGN50,60,KUN51,61,TGN61..ANCOM,LA200509-200903

sub62331-0K230

62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-0K020iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH)200501-201108

main62332-0K060iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

sub62332-0K230

62411GARNISH, CENTER PILLAR, RH

main62411-0K010-A0iTGN51,61..IDSUV..IDN200501-200808

IVORY,TRIM0#

main62411-0K020-A0iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200810

IVORY,TRIM0#

main62411-0K030-A0iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

IVORY,TRIM0#

main62411-0K060-B0iKUN50,TGN51..MA200809-200909

LT.GRAY,TRIM1#

sub62411-0K060

main62411-0K060-E0iGGN50..GCC,GEN;GGN60..5FC..(GEN,SA);GGN50,KUN50..RHD..(4FC,5FC);KUN51,6#,LAN50,TGN51,61..GCC,GEN,IDN,IND,MA,PHL,SA,TH,VN200808-201202

SAND BEIGE,TRIM4#

sub62411-0K060

main62411-0K080-E0iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810-201204

SAND BEIGE,TRIM4#

62412GARNISH, CENTER PILLAR, LH

main62412-0K010-A0iTGN51,61..IDSUV..IDN200501-200808

IVORY,TRIM0#

main62412-0K020-A0iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200810

IVORY,TRIM0#

main62412-0K030-A0iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

IVORY,TRIM0#

main62412-0K060-B0iKUN50,TGN51..MA200809-200909

LT.GRAY,TRIM1#

sub62412-0K060

main62412-0K060-E0iGGN50..GCC,GEN;GGN60..5FC..(GEN,SA);GGN50,KUN50..RHD..(4FC,5FC);KUN51,6#,LAN50,TGN51,61..GCC,GEN,IDN,IND,MA,PHL,SA,TH,VN200808-201202

SAND BEIGE,TRIM4#

sub62412-0K060

main62412-0K080-E0iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810-201204

SAND BEIGE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-0K010-A0iTGN51..TH;TGN61..GCC,TH;GGN50,KUN51..GEN200501-200709

IVORY,TRIM0#

sub62413-0K011

main62413-0K011-A0iTGN51,61..IDSUV..GCC;TGN51,61..SUVW..(GCC,IDN,MA,PHL,TH);GGN50,KUN5#,60..GCC,GEN,IDN,MA,PHL,TH200709-200808

IVORY,TRIM0#

sub62413-0K011

main62413-0K011-E0iKUN50,TGN51..4FC..MA200808-201202

SAND BEIGE,TRIM4#

sub62413-0K011

main62413-0K020-A0iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200709

IVORY,TRIM0#

sub62413-0K021

main62413-0K021-A0iGGN50,60,KUN51,61,LAN50,TGN51..SA200710-200810

IVORY,TRIM0#

main62413-0K021-E0iGGN50,60,KUN51,61,LAN50,TGN51..SA200810-201108

SAND BEIGE,TRIM4#

main62413-0K030-A0iGGN50,60,KUN51,61,TGN61..ANCOM,LA200509-200709

IVORY,TRIM0#

sub62413-0K031

main62413-0K031-A0iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200710-200903

IVORY,TRIM0#

main62413-0K031-E0iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810-201204

SAND BEIGE,TRIM4#

main62413-0K070-E0iKUN50,TGN51..MA200909-201109

SAND BEIGE,TRIM4#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-0K010-A0iTGN51..GCC,IDN,MA;GGN50,KUN5#,60,TGN61..GCC,IDN,MA,PHL,TH200501-200709

IVORY,TRIM0#

sub62414-0K011

main62414-0K011-A0iTGN51,61..IDSUV..GCC;TGN51,61..SUVW..(GCC,IDN,MA,PHL,TH);GGN50,KUN5#,60..GCC,GEN,IDN,MA,PHL,TH200709-200808

IVORY,TRIM0#

sub62414-0K011

main62414-0K011-E0iKUN50,TGN51..4FC..MA200808-201202

SAND BEIGE,TRIM4#

sub62414-0K011

main62414-0K020-A0iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200709

IVORY,TRIM0#

sub62414-0K021

main62414-0K021-A0iGGN50,60,KUN51,61,LAN50,TGN51..SA200710-200810

IVORY,TRIM0#

main62414-0K021-E0iGGN50,60,KUN51,61,LAN50,TGN51..SA200810-201108

SAND BEIGE,TRIM4#

main62414-0K030-A0iGGN50,60,KUN51,61,TGN61..ANCOM,LA200509-200709

IVORY,TRIM0#

sub62414-0K031

main62414-0K031-A0iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200710-200903

IVORY,TRIM0#

main62414-0K031-E0iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810-201204

SAND BEIGE,TRIM4#

main62414-0K070-E0iKUN50,TGN51..MA200909-201109

SAND BEIGE,TRIM4#

62471EGARNISH, ROOF SIDE, INNER UPPER RH

main62471-0K020-A0iTGN51,61..IDSUV..IDN200501-200810

IVORY,TRIM0#

main62471-0K040-A0iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

IVORY,TRIM0#

main62471-0K100-E0iKUN51..RHD;GGN50,KUN51..LHD..(4FC,5F)..(GEN,PHL);KUN6#,LAN50,TGN51..IDN,MA,PHL,SA,TH,VN;GGN50,60,KUN50,TGN61..(4FC,5FC)..(GEN,IDN,MA,PHL,SA,TH)200808-201202

SAND BEIGE,TRIM4#

main62471-0K120-E0iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810-201204

SAND BEIGE,TRIM4#

62471MCLIP

main90467-T0004-A0iTGN51,61..IDSUV..IDN200501-200903

IVORY,TRIM0#

main90467-T0004-E1iKUN51..RHD;GGN50..5FC..SA;GGN60,KUN50..4FC,5FC;GGN50,KUN51..LHD..(ANCOM,GEN,LA,PHL);KUN6#,LAN50,TGN51,61..IDN,LA,MA,PHL,SA,TH,VN200808-201204

SAND BEIGE,TRIM4#

62472EGARNISH, ROOF SIDE, INNER UPPER LH

main62472-0K020-A0iTGN51,61..IDSUV..GCC;GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,MA,PHL,SA,TH)200501-200810

IVORY,TRIM0#

sub62472-0K020

main62472-0K020-E0iKUN51..RHD;GGN50,KUN51..LHD..(4FC,5F)..(GEN,PHL);KUN6#,LAN50,TGN51..IDN,MA,PHL,SA,TH,VN;GGN50,60,KUN50,TGN61..(4FC,5FC)..(GEN,IDN,MA,PHL,SA,TH)200808-201202

SAND BEIGE,TRIM4#

sub62472-0K020

main62472-0K040-A0iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

IVORY,TRIM0#

main62472-0K100-E0iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810-201204

SAND BEIGE,TRIM4#

62511BOARD, QUARTER INSIDE TRIM, RH

main62510-0K020-A0iTGN61..IDSUV..(GCC,IDN);GGN50,KUN50,TGN51..GCC,GEN,IDN,MA,TH;KUN51,60,TGN61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)200501-200809

IVORY,TRIM0#

main62510-0K050-A0iGGN50,60,KUN51..ANCOM,LA200509-200903

IVORY,TRIM0#

main62510-0K100-A0iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200810

IVORY,TRIM0#

main62510-0K110-A0iKUN61,TGN61..LA200509-200810

IVORY,TRIM0#

main62510-0K150-E0iGGN50..GCC200808-201107

AIR CONDITIONER-AUTO AIR CONDITIONER DUAL,SAND BEIGE,TRIM4#

sub62510-0K150

main62510-0K150-E0iKUN51..RHD..5F..SA200808-201202

SAND BEIGE,TRIM4#

sub62510-0K150

main62510-0K170-E0iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810-201204

SAND BEIGE,TRIM4#

62512BOARD, QUARTER INSIDE TRIM, LH

main62520-0K020-A0iTGN61..IDSUV..(GCC,IDN);GGN50,KUN50,TGN51..GCC,GEN,IDN,MA,TH;KUN51,60,TGN61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)200501-200809

IVORY,TRIM0#

main62520-0K020-E0iKUN50..4FC;GGN50,60,KUN51,6#,TGN51,61..GEN,IDN,IND,MA,PHL,TH,VN200808-201202

SAND BEIGE,TRIM4#

main62520-0K030-A0iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200810

IVORY,TRIM0#

main62520-0K030-E0iKUN51..4FC..SA;GGN50,60,KUN61,LAN50,TGN51..SA200810-201108

SAND BEIGE,TRIM4#

main62520-0K030-E0iKUN51..4FC..SA;GGN50,60,KUN61,LAN50,TGN51..SA200810-201108

AIR CONDITIONER-AIR CONDITIONER DUAL,SAND BEIGE,TRIM4#

main62520-0K040-A0iGGN50,60,KUN51..ANCOM,LA200509-200903

IVORY,TRIM0#

main62520-0K090-A0iKUN61,TGN61..LA200509-200810

IVORY,TRIM0#

main62520-0K130-E0iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810-201204

SAND BEIGE,TRIM4#

62638AGARNISH, QUARTER PILLAR, RH

main62638-0K020-A0iTGN51,61..IDSUV..IDN200501-200810

IVORY,TRIM0#

main62638-0K040-A0iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

IVORY,TRIM0#

main62638-0K070-E0iKUN51..RHD;GGN50,KUN51..LHD..(4FC,5F)..(GEN,PHL);KUN6#,LAN50,TGN51..IDN,MA,PHL,SA,TH,VN;GGN50,60,KUN50,TGN61..(4FC,5FC)..(GEN,IDN,MA,PHL,SA,TH)200808-201202

SAND BEIGE,TRIM4#

main62638-0K090-E0iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810-201204

SAND BEIGE,TRIM4#

62639AGARNISH, QUARTER PILLAR, LH

main62639-0K020-A0iTGN51,61..IDSUV..IDN200501-200810

IVORY,TRIM0#

main62639-0K040-A0iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

IVORY,TRIM0#

main62639-0K070-E0iKUN51..RHD;GGN50,KUN51..LHD..(4FC,5F)..(GEN,PHL);KUN6#,LAN50,TGN51..IDN,MA,PHL,SA,TH,VN;GGN50,60,KUN50,TGN61..(4FC,5FC)..(GEN,IDN,MA,PHL,SA,TH)200808-201202

SAND BEIGE,TRIM4#

main62639-0K080-E0iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810-201204

SAND BEIGE,TRIM4#

64725HHOOK, QUARTER TRIM,

main64725-0K010-A0iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

IVORY,TRIM0#

sub64725-0K010

main64725-0K010-E1iKUN51..RHD..5F..SA200808-201107

AIR CONDITIONER-AUTO AIR CONDITIONER DUAL,SAND BEIGE,TRIM4#

sub64725-0K010

main64725-0K010-E1iKUN51..RHD..5F..SA200808-201204

SAND BEIGE,TRIM4#

sub64725-0K010

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-T0003-A0iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

IVORY,TRIM0#

main90467-T0003-E1iKUN51..RHD..5F..SA200808-201204

SAND BEIGE,TRIM4#

main90467-T0003-E1iKUN51..RHD..5F..SA200808-201107

AIR CONDITIONER-AUTO AIR CONDITIONER DUAL,SAND BEIGE,TRIM4#

64766COVER SUB-ASSY, QUARTER TRIM JACK

main64766-0K010-A0iTGN61..IDSUV..(GCC,IDN);GGN50,KUN50,TGN51..GCC,GEN,IDN,MA,TH;KUN51,60,TGN61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)200501-200809

IVORY,TRIM0#

sub64766-0K010

main64766-0K010-E0iKUN50..4FC;GGN50,60,KUN51,6#,TGN51,61..GEN,IDN,IND,MA,PHL,TH,VN200808-201202

SAND BEIGE,TRIM4#

sub64766-0K010

main64766-0K020-A0iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200810

IVORY,TRIM0#

main64766-0K020-E0iKUN51..4FC..SA;GGN50,60,KUN61,LAN50,TGN51..SA200810-201108

AIR CONDITIONER-AIR CONDITIONER DUAL,SAND BEIGE,TRIM4#

main64766-0K020-E0iKUN51..RHD..5F..SA200810-201108

SAND BEIGE,TRIM4#

main64766-0K030-A0iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

IVORY,TRIM0#

main64766-0K030-E0iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810-201204

SAND BEIGE,TRIM4#

64910MCOVER ASSY, TONNEAU

main64910-71010-A1iKUN51..LA200509-200903

IVORY,TRIM0#

64931DHANGER, TONNEAU COVER, RH

main64931-71010-A0iKUN51..LA200509-200903

IVORY,TRIM0#

sub64931-71010

64932CHANGER, TONNEAU COVER, LH

main64932-71010-A0iKUN51..LA200509-200903

IVORY,TRIM0#

sub64932-71010

64935AHOLDER, TONNEAU COVER

main64935-71010-A0iGGN50..ANCOM200509-200903

IVORY,TRIM0#

sub64935-71010

64936AHOLDER, TONNEAU COVER, LH

main64936-71010-A0iKUN51..LA200509-200903

IVORY,TRIM0#

sub64936-71010

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-0K010-A0iTGN51,61..IDSUV..IDN200501-200809

IVORY,TRIM0#

main67913-0K010-B0iKUN50,TGN51..MA200809-200909

GRAY,TRIM1#

main67913-0K010-E0iGGN50,60,KUN51,6#,TGN51,61..GCC,GEN,IDN,IND,PHL,TH,VN200808-201202

SAND BEIGE,TRIM4#

main67913-0K020-A0iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200810

IVORY,TRIM0#

main67913-0K020-E0iGGN50,60,KUN51,61,LAN50,TGN51..SA200810-201108

SAND BEIGE,TRIM4#

main67913-0K030-A0iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

IVORY,TRIM0#

main67913-0K030-E0iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810-201204

SAND BEIGE,TRIM4#

main67913-0K100-E0iKUN50,TGN51..MA200909-201109

SAND BEIGE,TRIM4#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-0K010-A0iTGN51,61..IDSUV..IDN200501-200809

IVORY,TRIM0#

sub67914-0K010

main67914-0K010-B0iKUN50,TGN51..MA200809-200909

GRAY,TRIM1#

sub67914-0K010

main67914-0K010-E0iKUN50,TGN51..4FC..MA200808-201202

SAND BEIGE,TRIM4#

sub67914-0K010

main67914-0K020-A0iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200810

IVORY,TRIM0#

main67914-0K020-E0iGGN50,60,KUN51,61,LAN50,TGN51..SA200810-201108

SAND BEIGE,TRIM4#

main67914-0K030-A0iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

IVORY,TRIM0#

main67914-0K030-E0iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810-201204

SAND BEIGE,TRIM4#

main67914-0K100-E0iKUN50,TGN51..MA200909-201109

SAND BEIGE,TRIM4#

67917CPLATE, REAR DOOR SCUFF, RH

main67917-0K040-A0iTGN51,61..IDSUV..IDN200501-200809

IVORY,TRIM0#

sub67917-0K040

main67917-0K040-E0iKUN50..4FC;GGN50,60,KUN51,6#,TGN51,61..GCC,GEN,IDN,IND,MA,PHL,TH,VN200808-201202

SAND BEIGE,TRIM4#

sub67917-0K040

main67917-0K050-A0iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200810

IVORY,TRIM0#

main67917-0K050-E0iGGN50,60,KUN51,61,LAN50,TGN51..SA200810-201108

SAND BEIGE,TRIM4#

main67917-0K060-A0iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

IVORY,TRIM0#

main67917-0K060-E0iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810-201204

SAND BEIGE,TRIM4#

67918EPLATE, REAR DOOR SCUFF, LH

main67918-0K040-A0iTGN51,61..IDSUV..IDN200501-200809

IVORY,TRIM0#

sub67918-0K040

main67918-0K040-E0iKUN50..4FC;GGN50,60,KUN51,6#,TGN51,61..GCC,GEN,IDN,IND,MA,PHL,TH,VN200808-201202

SAND BEIGE,TRIM4#

sub67918-0K040

main67918-0K050-A0iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200810

IVORY,TRIM0#

main67918-0K050-E0iGGN50,60,KUN51,61,LAN50,TGN51..SA200810-201108

SAND BEIGE,TRIM4#

main67918-0K060-A0iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

IVORY,TRIM0#

main67918-0K060-E0iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810-201204

SAND BEIGE,TRIM4#

67921ERETAINER, REAR DOOR SCUFF PLATE

main67921-71010iTGN51,61..IDSUV..IDN200501-201107

7152

90105T0193

main90105-T0193

9015060003

main90150-60003

90159T0024

main90159-T0024

9046706155

main90467-06155

9046710188

main90467-10188

90467T0021

main90467-T0021

41 parts on this diagram · 4 diagrams in section
