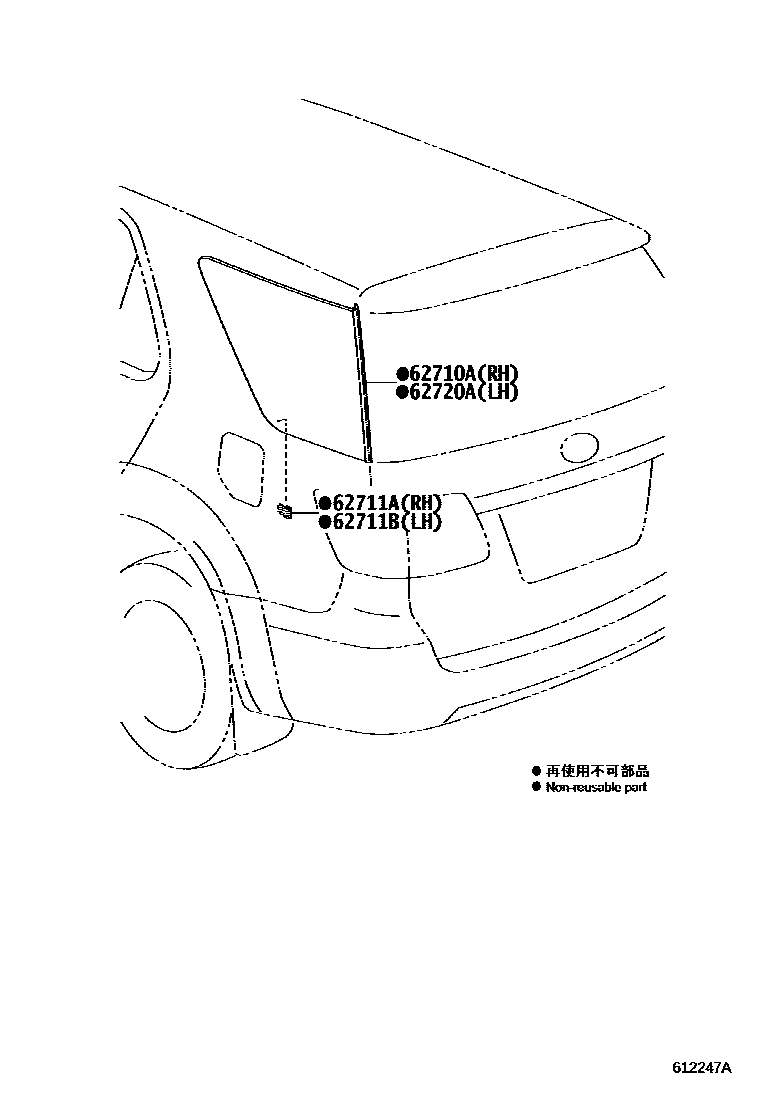

SIDE WINDOW
62710AWINDOW ASSY, QUARTER, RH
*TT,T=3.1,GREEN
*TT,T=3.1,GREEN
*TT,T=3.1,PRIVACY
*TT,T=3.1,PLIVACY
*TT,T=3.1,GREEN
main62710-0K081iKUN51..LHD..SA;KUN50,LAN50..5F;KUN51..SUVW..(PHL,TH);KUN60,TGN51,61..SUVW..(MA,PHL,SA,TH)200807-200810
*TT,T=3.1,GREEN
*TT,T=3.5,GREEN
*TT,T=3.1,GREEN; *TT,T=3.1,GREEN,AIR CONDITIONER-AIR CONDITIONER DUAL; *TT,T=3.1,GREEN,AIR CONDITIONER-AUTO AIR CONDITIONER DUAL
*TT,T=3.5,GREEN
*TT,T=3.1,PRIVACY
main62710-0K200iKUN50,61,TGN61..4FC..(MA,PHL,TH);KUN51..(IDSUV,SUVW)..(GEN,PHL,TH);KUN60,LAN50,TGN51..MA,PHL,SA,TH,VN200808-201204
*TT,T=3.1,GREEN
*TT,T=3.1,GREEN
62711ASPACER, QUARTER WINDOW GLASS, NO.1
62711BSPACER, QUARTER WINDOW GLASS, NO.2
62720AWINDOW ASSY, QUARTER, LH
main62720-0K030iKUN51..LHD..SA;LAN50,TGN51..GCC,MA,SA,TH;GGN50,KUN5#,60,TGN61..GCC,GEN,MA,PHL,TH200501-200806
*TT,T=3.1,GREEN
main62720-0K031iKUN50..4FC;KUN51..LHD..SA;LAN50,TGN51..GCC,MA,SA,VN;GGN50,KUN51,6#,TGN61..GCC,GEN,PHL,TH,VN200808-201204
*TT,T=3.1,GREEN
*TT,T=3.1,PRIVACY
*TT,T=3.1,PRIVACY
*TT,T=3.5,GREEN
*TT,T=3.1,GREEN
4 parts on this diagram · 1 diagram in section
