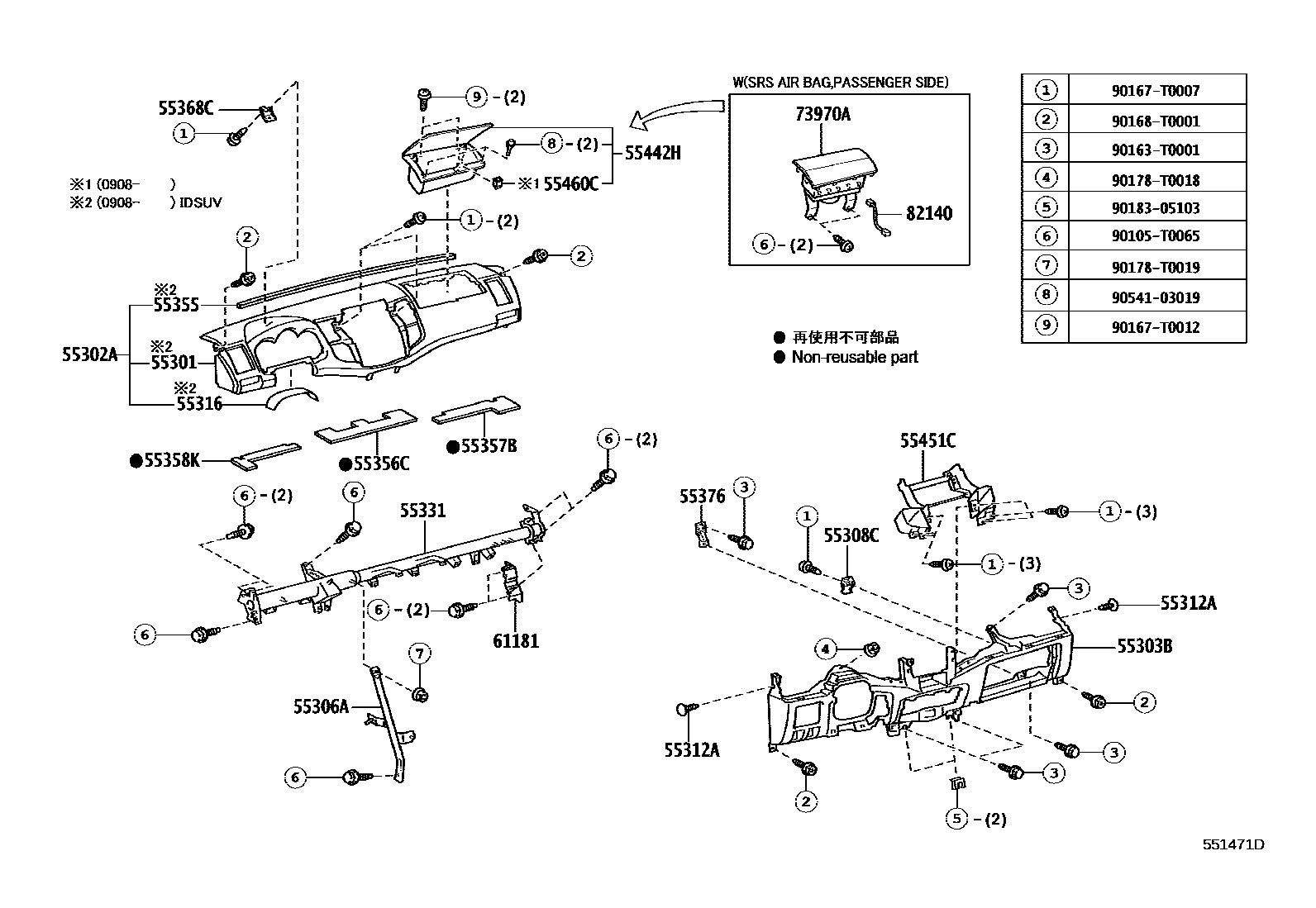

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1DRIVER SIDE 0005 1CENTER 0006 1CENTER 0007 1PASSENGER SIDE 0008 1PASSENGER SIDE

55301PANEL SUB-ASSY, INSTRUMENT

main55311-0K140-E0iGGN50,KUN51,60,TGN51,61..LHD..IDSUV200908-201107

ASH BROWN,TRIM4#

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-0K010-B0iKUN50,TGN51..MA200809-201109

DK.GRAY,TRIM1#

main55302-0K010-E0iKUN51,TGN51,61..RHD;GGN50,60,KUN50,6#,LAN50..RHD..SUVW..(5F,5FC)200501-200810

SANDAL WOOD,TRIM0#

main55302-0K010-E1iKUN51,6#,LAN50..RHD;GGN50,60,KUN50,TGN51,61..RHD..(4FC,5FC)200808-201201

ASH BROWN,TRIM4#

main55302-0K020-E0iTGN61..5F..LA;TGN61..IDSUV..GCC;KUN51..LHD..(SUVW,THSUV);GGN50,KUN61,LAN50,TGN51..LHD;GGN60,KUN60,TGN61..LHD..SUVW..SR200504-200812

SANDAL WOOD,TRIM0#

main55302-0K020-E1iGGN50,60,KUN51,6#,LAN50,TGN51,61..LHD..(SUVW,THSUV)200808-201204

ASH BROWN,TRIM4#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-0K010-A0iKUN51,TGN51,61..RHD;GGN50,60,KUN50,6#,LAN50..RHD..SUVW..(5F,5FC)200501-200810

IVORY,TRIM0#

main55303-0K010-B0iKUN50,TGN51..MA200809-201109

GRAY,TRIM1#

main55303-0K010-E0iKUN51,6#,LAN50..RHD;GGN50,60,KUN50,TGN51,61..RHD..(4FC,5FC)200808-201201

SAND BEIGE,TRIM4#

main55303-0K020-A0iTGN61..5F..LA;TGN61..IDSUV..GCC;KUN51..LHD..(SUVW,THSUV);GGN50,KUN61,LAN50,TGN51..LHD;GGN60,KUN60,TGN61..LHD..SUVW..SR200504-200812

IVORY,TRIM0#

main55303-0K020-E0iGGN50,KUN51,60,TGN51,61..LHD..IDSUV200808-200908

SAND BEIGE,TRIM4#

main55303-0K120-E0iGGN50,KUN51,60,TGN51,61..LHD..IDSUV200908-201107

SAND BEIGE,TRIM4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0K010iKUN51,TGN51,61..RHD;GGN50,60,KUN50,6#,LAN50..RHD..SUVW..(5F,5FC)200501-200810

main55306-0K020iTGN61..5F..LA;TGN61..IDSUV..GCC;KUN51..LHD..(SUVW,THSUV);GGN60,KUN60,TGN61..SUVW..(ANCOM,GCC,PHL);GGN50,KUN61,LAN50,TGN51..LHD..(ANCOM,GCC,GEN,LA,SA)200504-200903

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-0K010iKUN51,TGN51,61..RHD;GGN50,60,KUN50,6#,LAN50..RHD..SUVW..(5F,5FC)200501-200810

main55308-0K020iGGN50,60,KUN51,6#,LAN50,TGN51,61..LHD200808

55312ACLIP, INSTRUMENT PANEL

main90467-T0002-A0×2iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR200501-200812

IVORY,TRIM0#

main90467-T0002-B0×2iKUN50200809-201109

GRAY,TRIM1#

main90467-T0002-E1×2iGGN50..LHD;GGN50..5FC..SA;GGN60,KUN50..4FC,5FC;KUN51,6#,LAN50,TGN51,61200808-201204

SAND BEIGE,TRIM4#

55316SPACER, INSTRUMENT PANEL, NO.2

main55316-0K010iGGN50,KUN51,60,TGN51,61..LHD..IDSUV200908-201107

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-0K010iGGN50,60,KUN5#,6#..RHD..SUVW..5F..(IDN,MA,SA)200504-200810

main55330-0K020iKUN50,TGN51..MA200809-201109

main55330-0K030supersedes 55330-0K070iGGN50,KUN51,60..(SUVW,THSUV)..5F..(ANCOM,GEN,LA,PHL)200504-200903

main55330-0K040supersedes 55330-0K310iKUN51..4FC..LA;GGN50,60..5FC..ANCOM200810

main55330-0K050iLAN50..RHD;KUN51..5F..TH200501-200810

main55330-0K220iKUN51,6#..RHD..5F..(IDN,IND,SA)200808

main55330-0K230iGGN50,60,KUN51,6#,TGN51,61..RHD..(4FC,5FC)..(GEN,IDN,SA,TH)200808-201108

main55330-0K240supersedes 55330-0K280iGGN50,KUN51,60..5F..(GEN,PHL,VN)200808

main55330-0K250supersedes 55330-0K290iGGN50,60,KUN51,60,TGN51,61..LHD..(4FC,5FC)..(GEN,PHL,VN)200808

main55330-0K260iKUN51..5F..TH;KUN60,LAN50..RHD..(SA,TH)200808-201108

main55330-0K311iKUN51..4FC..LA201011

ANTI-THEFT SYSTEM-*IM & TRACKING&BLOCKING SYS & *SEH

main55330-0K060iTGN51,61..TH200501-200808

SRS AIR BAG-WITH(DRIVER ONLY)

main55330-0K300iKUN51..5F..LA200910-201011

ANTI-THEFT SYSTEM-*IM & TRACKING&BLOCKING SYS & *SEH

main55330-0K301iKUN51..5F..LA201011

ANTI-THEFT SYSTEM-*IM & TRACKING&BLOCKING SYS & *SEH

main55330-0K320iTGN61..5F..LA200910-201010

ANTI-THEFT SYSTEM-*IM & TRACKING&BLOCKING SYS & *SEH

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-0K010iGGN50,KUN51,60,TGN51,61..LHD..IDSUV200908-201107

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-0K010iGGN50,KUN51,60,TGN51,61..GCC,IDN,PHL,TH200501-200603

main55356-0K020iGGN50,KUN51,61,TGN61..LA200910

main55356-0K030iGGN50,KUN51,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)200603-200808

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55358-0K020iGGN60..ANCOM;GGN50,TGN51,61..IDSUV..(GCC,IDN);GGN60,KUN51,TGN51..(4FC,5F)..(LA,MA,SA);GGN50,KUN50,61,LAN50,TGN61..(5F,5FC)..(ANCOM,LA,MA,SA)200501-200812

main55358-0K040iGGN50,60,KUN51,6#,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)200808-201107

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-0K010iGGN60..ANCOM;GGN50,TGN51,61..IDSUV..(GCC,IDN);GGN60,KUN51,TGN51..(4FC,5F)..(LA,MA,SA);GGN50,KUN50,61,LAN50,TGN61..(5F,5FC)..(ANCOM,LA,MA,SA)200501-200812

main55358-0K030iGGN50,60,KUN51,6#,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)200808-201107

55368CBRACKET, METER MOUNTING

main55368-0K010iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR200501-200812

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-0K010iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR200501-200812

55442HDOOR, INSTRUMENT PANEL

main55042-0K010-E0iLAN50..RHD;KUN51..5F..TH200501-200810

SANDAL WOOD,TRIM0#

main55042-0K010-E1iKUN51..5F..TH;KUN60,LAN50..RHD..(SA,TH)200808-201108

ASH BROWN,TRIM4#

main55042-0K020-E0iKUN51..LHD..SA;GGN50,KUN61,LAN50,TGN51,61..LHD..(GCC,LA,SA)200507-200810

SANDAL WOOD,TRIM0#

main55042-0K020-E1iKUN61,TGN61..5F..LA;GGN50,KUN51,LAN50,TGN51,61..LHD..(GCC,SA)200808-201110

ASH BROWN,TRIM4#

55451CBOX, INSTRUMENT PANEL, NO.1

main55451-0K010iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR200501-200812

55460CLOCK ASSY, INSTRUMENT PANEL BOX

main55460-0K010iLAN50..RHD;KUN51..5F..TH200501-200810

61181BRACKET, INSTRUMENT PANEL SIDE

main61181-0K010iKUN51,6#,LAN50..RHD;GGN50,60,KUN50,TGN51,61..RHD..(4FC,5FC)200808

main61181-0K020iTGN61..5F..LA;TGN61..IDSUV..GCC;KUN51..LHD..(SUVW,THSUV);GGN60,KUN60,TGN61..SUVW..(ANCOM,GCC,PHL);GGN50,KUN61,LAN50,TGN51..LHD..(ANCOM,GCC,GEN,LA,SA)200504-200903

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-0K010-E0iKUN51,TGN51..4FC200501-200503

SRS AIR BAG-WITH(DRIVER ONLY),SANDAL WOOD,TRIM0#

main73970-0K011-B0iKUN50,TGN51..MA200809-201109

DK.GRAY,TRIM1#

sub73970-0K012

main73970-0K011-E0iGGN50,60,KUN51,61..SA200504-200710

SANDAL WOOD,TRIM0#

sub73970-0K012

main73970-0K011-E1iKUN51,60..RHD..(GEN,IDN,IND);KUN5#,61,TGN51,61..4FC..(IDN,MA,TH)200808-201201

ASH BROWN,TRIM4#

sub73970-0K012

main73970-0K021-E0iGGN60..ANCOM;GGN50,KUN51,60,TGN61..(SUVW,THSUV)..SR..(ANCOM,GEN,LA,PHL)200504-200812

SANDAL WOOD,TRIM0#

sub73970-0K022

main73970-0K021-E1iTGN61..4FC..(LA,PHL);GGN50,60,KUN51,60,TGN51..LHD..(ANCOM,GEN,LA,PHL,VN)200808-201204

ASH BROWN,TRIM4#

sub73970-0K022

main73970-0K070-E0iKUN51..RHD..SA200710-200810

SRS AIR BAG-WITHOUT,SANDAL WOOD,TRIM0#

sub73970-0K071

main73970-0K070-E1iLAN50..RHD200810-201108

ASH BROWN,TRIM4#

sub73970-0K071

main73970-0K080-E0iKUN51,LAN50,TGN51..LHD..SA200710-200810

SRS AIR BAG-WITH(DRIVER & PASSENGER),SANDAL WOOD,TRIM0#

main73970-0K080-E1iKUN51,LAN50,TGN51..LHD..SA200810-201108

SRS AIR BAG-WITH(DRIVER & PASSENGER),ASH BROWN,TRIM4#

82140WIRE ASSY, INSTRUMENT PANEL

main82140-0K010iKUN51,TGN51,61..4FC..(IDN,TH);GGN50,60,KUN51,6#..RHD..SUVW..(IDN,SA)200501-200810

main82140-0K020iGGN60..ANCOM;GGN50,KUN51,60,TGN61..(SUVW,THSUV)..SR..(ANCOM,GEN,LA,PHL)200504-200812

90105T0065

main90105-T0065

90163T0001

main90163-T0001

90167T0007

main90167-T0007

90167T0012

main90167-T0012

90168T0001

main90168-T0001

90178T0018

main90178-T0018

90178T0019

main90178-T0019

9018305103

main90183-05103

9054103019

main90541-03019

29 parts on this diagram · 8 diagrams in section
