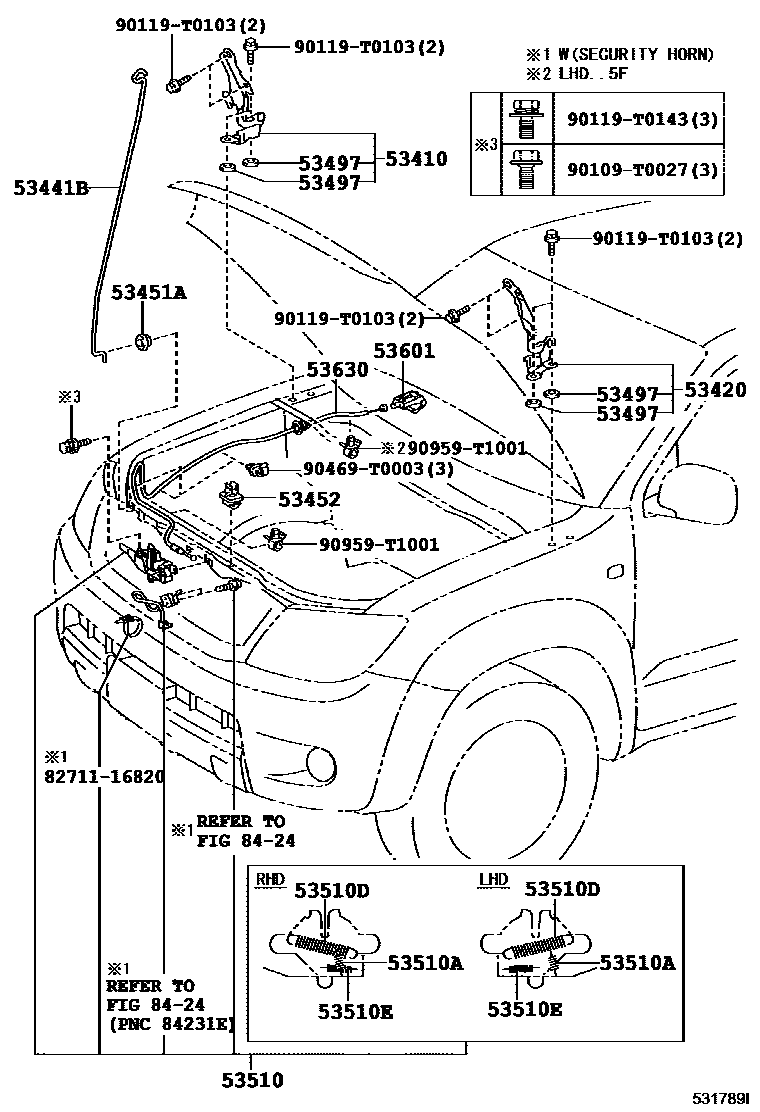

HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
main53420-0K100iTGN61..IDSUV..(GCC,IDN);GGN50,KUN50,TGN51..GCC,GEN,IDN,MA,TH;KUN51,60,TGN61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)200501-200809
53441BSUPPORT, HOOD
main53441-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)200501-200903
53451AGROMMET(FOR HOOD SUPPORT ROD)
main90480-T0006iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)200501-200903
53452HOLDER, HOOD STAY
main53452-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)200501-200903
53497PAD, HOOD HINGE, NO.1
T=1.0
T=2.0
T=0.5
main53497-20070×4iTGN61..5F..LA;TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..ANCOM,GCC,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GCC,GEN,LA,MA);KUN51,60,TGN61..(SUVW,THSUV)..SR..(GCC,GEN,IDN,LA,PHL,TH)200501-200903
T=2.0
T=0.5
53510LOCK ASSY, HOOD
ANTI-THEFT SYSTEM-WITHOUT
ANTI-THEFT SYSTEM-WITHOUT
ANTI-THEFT SYSTEM-WITHOUT
ANTI-THEFT SYSTEM-IMMOBILIZER & SECURITY HORN(FOR SA)
ANTI-THEFT SYSTEM-IMMOBILIZER & SECURITY HORN(FOR SA)
ANTI-THEFT SYSTEM-IMMOBILIZER & SECURITY HORN(FOR SA)
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=1.2,CW=8.5
WD=1.2,CW=8.5,FOR SOUTH AFRICA
WD=1.2,CW=8.5,ANTI-THEFT SYSTEM-WITHOUT,EXCEPT SOUTH AFRICA; WD=1.2,CW=8.5,EXCEPT SOUTH AFRICA
WD=1.2,CW=8.5
53510DSPRING, TENSION(FOR HOOD LOCK)
WD=1.8,CW=13
WD=1.8,CW=13
WD=1.8,CW=13
53510ESPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=21
WD=0.9,CW=21
main90506-T0005supersedes 90080-50412iGGN50,KUN51,6#,TGN51,61..GCC,GEN,IDN,IND,PHL,TH,VN200808-201204
WD=0.9,CW=21
WD=0.9,CW=21
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
IVORY,TRIM0#
GRAY,TRIM1#
main53601-52010-E6iGGN50..LHD;GGN50..5FC..SA;GGN60,KUN50..4FC,5FC;KUN51,6#,LAN50,TGN51,61200808-201204
SAND BEIGE,TRIM4#
53630CABLE ASSY, HOOD LOCK CONTROL
main53630-0K010iKUN61..5F..SA;GGN50,60..5FC..ANCOM;TGN61..IDSUV..(GCC,IDN);GGN50,LAN50,TGN51..GCC,GEN,IDN,SA,TH;GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH)200501-200903
8424ANTI-THEFT DEVICE
8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16820
90109T0027
main90109-T0027
90119T0103
main90119-T0103
90119T0143
main90119-T0143
90469T0003
main90469-T0003
90959T1001
main90959-T1001
19 parts on this diagram · 1 diagram in section
