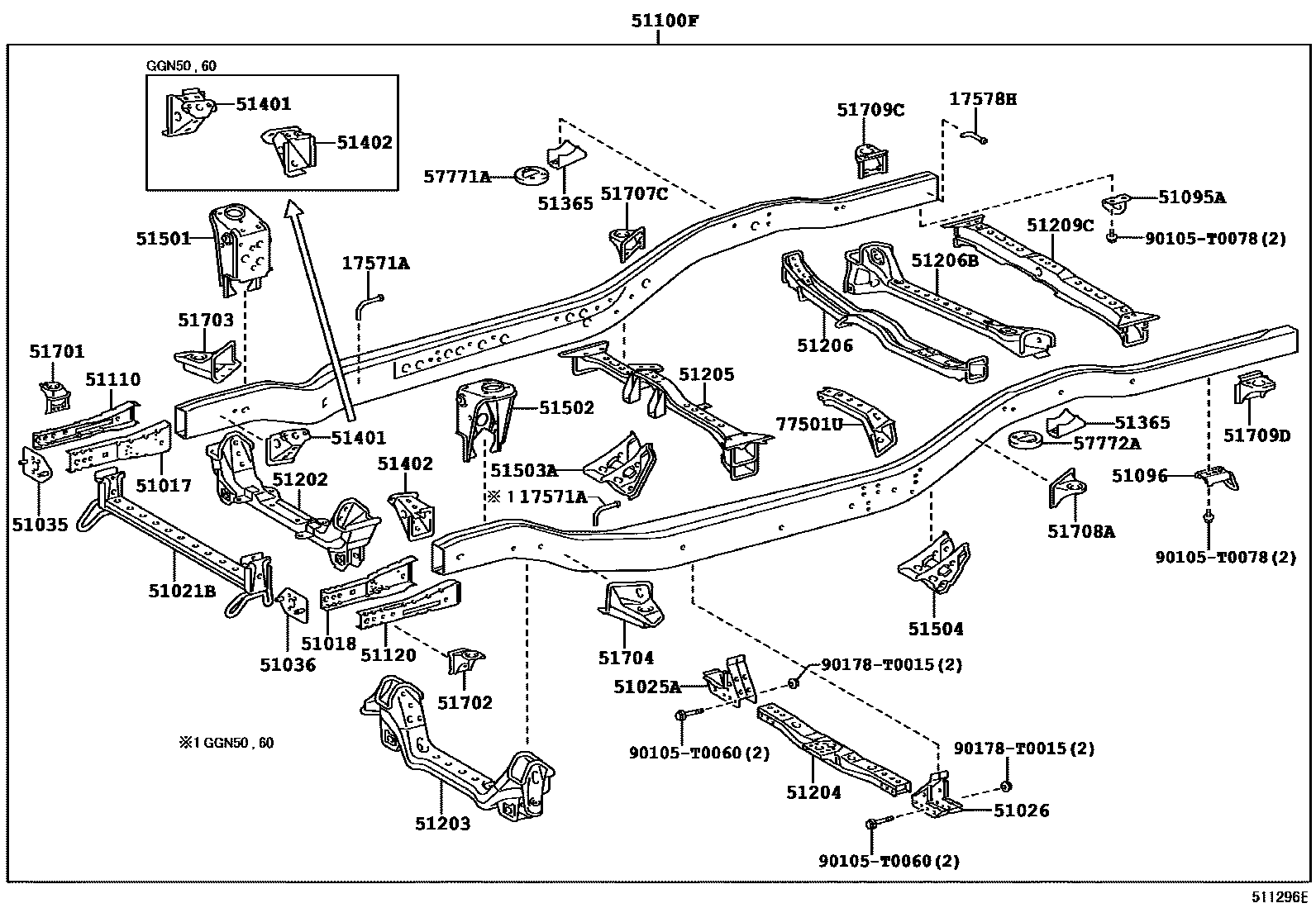

FRAME

0001 1 0002 1PROPELLER SHAFT GUARD

17571ABRACKET, EXHAUST PIPE SUPPORT, NO.9

main17571-0L010×2i1GRFE..GGN50;1GRFE..GGN60..5F;1GRFE..GGN60..ANCOM200507-200903

17578HBRACKET, EXHAUST PIPE SUPPORT, NO.10

main17505-0L010i2TRFE..TGN51..GCC,IDN,MA,SA,TH;2TRFE..TGN61..IDSUV..(GCC,IDN);1GRFE,2TRFE..GGN60,TGN61..(5F,5FC)..(ANCOM,LA);1GRFE,1KDFTV,2KDFTV,5LE..GGN50,KUN50,61,LAN50..5F,5FC;1200501-200903

51017REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH

main51017-0K020iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

51018REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH

main51018-0K020iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

51021BCROSSMEMBER SUB-ASSY, FRAME AUXILIARY

main51021-0K020iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

51025ABRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, RH

main51025-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

main51025-0K030iGGN60..SA;GGN50,KUN5#,6#,LAN50,TGN51,61..GCC,GEN,IDN,IND,MA,PHL,SA,TH,VN201102-201204

51026BRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, LH

main51026-0K010iGGN60..GEN200808-201008

main51026-0K030iGGN60..SA;GGN50,KUN5#,6#,LAN50,TGN51,61..GCC,GEN,IDN,IND,MA,PHL,SA,TH,VN201102-201204

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-0K010iGGN60..GEN200808-201008

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-0K010iGGN60..GEN200808-201008

51095AHOOK SUB-ASSY, TRANSPORT, REAR RH

main51095-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

51096HOOK SUB-ASSY, TRANSPORT, REAR LH

main51096-0K010iGGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)200808-201204

51100FFRAME SUB-ASSY

main51001-0K410iTGN51200501-200504

main51001-0K411iTGN51..RHD200504-200711

main51001-0K413iTGN51..RHD200712-200809

main51001-0K420iKUN51200501-200504

main51001-0K421iKUN51..LA200504-200705

main51001-0K423iKUN5#..SUVW..(MA,PHL,TH)200712-200809

main51001-0K431iLAN50200605-200711

main51001-0K433iLAN50200712-200810

main51001-0K501iTGN61..IDN,PHL,TH200504-200711

main51001-0K503iTGN61..IDN,PHL,TH200712-200808

main51001-0K511iTGN61..LA200509-200712

main51001-0K521iKUN60200504-200711

main51001-0K523iKUN60200712-200808

main51001-0K611iGGN50..5F..ANCOM200602-200705

main51001-0K621iGGN60..ANCOM200602-200705

main51001-0K661iGGN50..5FC..ANCOM200602-200705

main51001-0K701iTGN51..LHD200507-200711

main51001-0K702iTGN51..LHD200712-200810

sub47355-0K020

sub47903-0K020

sub90119-T0126

main51001-0K711iKUN51..GEN,SA200602-200711

main51001-0K712iKUN51..GEN,LA,SA200712-200810

sub47355-0K020

sub47903-0K020

sub90119-T0126

main51001-0K721iGGN50..5FC..ANCOM200705-200711

main51001-0K723iGGN50..5FC200712-200903

sub47355-0K020

sub47903-0K020

sub90119-T0126

main51001-0K731iGGN50..5F..(GCC,GEN,SA)200507-200711

main51001-0K733iGGN50..5F200712-200903

sub47355-0K020

sub47903-0K020

sub90119-T0126

main51001-0K741iKUN61..SA200602-200711

main51001-0K742iKUN61..5F200712-200810

sub47355-0K020

sub47903-0K020

sub90119-T0126

main51001-0K751iGGN60..ANCOM200705-200711

main51001-0K753iGGN60..5F;GGN60..ANCOM200712-200812

sub47355-0K020

sub47903-0K020

sub91674-80825

main51001-0KB20iTGN61..5F..GCC200708-200711

main51001-0KB21iTGN61..5F200712-200810

main51001-0KB80iTGN61..4FC..GCC200708-200711

main51001-0KB81iTGN61..4FC..GCC200712-200808

main51001-0KC01iTGN61..IDN,PHL,TH200808-201008

main51001-0KC02iTGN61..IDN,PHL,TH201008-201101

main51001-0KC03iTGN61..IDN,PHL,TH201102-201107

main51001-0KC11iTGN51..IDN,MA,VN200808-201008

main51001-0KC12iTGN51..IDN,MA,VN201008-201101

main51001-0KC13iTGN51..IDN,MA,VN201102-201204

sub51001-0KC14

main51001-0KC21iKUN50..4FC;KUN51..PHL,TH200808-201008

main51001-0KC22iKUN5#..MA,PHL,TH201008-201101

main51001-0KC24iKUN5#..MA,PHL,TH201102-201109

main51001-0KC31iKUN6#..IDN,PHL,TH,VN200808-201008

main51001-0KC32iKUN60201112-201204

main51001-0KC34iKUN6#..IDN,PHL,TH,VN201102-201112

main51001-0KC50iTGN51..GCC200808-201008

main51001-0KC51iTGN51..GCC201008-201101

main51001-0KC52iTGN51..GCC201102-201107

sub51001-0KC53

main51001-0KC60iKUN51..GEN200808-201008

main51001-0KC61iKUN51..LA201102-201204

sub51001-0KC62

main51001-0KC71iLAN50200810-201010

main51001-0KC72iLAN50201010-201101

main51001-0KC73iLAN50201102-201108

sub51001-0KC74

main51001-0KC80iTGN61..4FC..LA200808-201009

main51001-0KC90iTGN61..5F..LA200808-201101

main51001-0KC91iTGN61..LA201102-201204

sub51001-0KC92

main51001-0KD00iKUN61..LA200810-201204

main51001-0KD10iGGN50..5FC..(ANCOM,LA)200808-201101

main51001-0KD11iGGN50..5FC..(ANCOM,LA)201102-201204

sub51001-0KD12

main51001-0KD20iGGN50..5F..ANCOM200808-201101

main51001-0KD21iGGN50..5F..ANCOM201102-201204

main51001-0KD30iGGN60..GEN200808-201008

main51001-0KD31iGGN60..ANCOM201102-201204

sub51001-0KD32

main51001-0KD80iTGN51..SA200810-201010

main51001-0KD81iTGN51..SA201010-201101

main51001-0KD82iTGN51..SA201102-201108

sub51001-0KD83

main51001-0KD90iKUN51..SA200810-201010

main51001-0KD91iKUN51..SA201010-201101

main51001-0KD93iKUN51..SA201102-201108

main51001-0KE00iKUN61..SA200810-201010

main51001-0KE01iKUN61..SA201010-201101

main51001-0KE03iKUN61..SA201102-201108

main51001-0KE10iGGN50..SA200810-201010

main51001-0KE11iGGN50..SA201010-201101

main51001-0KE12iGGN50..SA201102-201108

main51001-0KE20iGGN60..SA200810-201010

main51001-0KE21iGGN60..SA201010-201101

main51001-0KE22iGGN60..SA201102-201108

main51001-0KJ40iKUN51..IND201009-201101

main51001-0KJ42iKUN51..GEN,IND201102-201201

main51001-0KJ50iTGN61..4FC..GCC201008-201101

main51001-0KJ51iTGN61..4FC..GCC201102-201107

main51001-0KJ60iTGN61..5F..GCC201008-201101

main51001-0KJ61iTGN61..5F..GCC201102-201107

main51001-0KJ70iGGN50..5FC..(GCC,GEN)201008-201101

main51001-0KJ71iGGN50..5FC..(GCC,GEN)201102-201107

main51001-0KJ80iGGN50..5F..(GCC,GEN)201008-201101

main51001-0KJ81iGGN50..5F..(GCC,GEN)201102-201107

sub51001-0KJ82

51110EXTENSION ASSY, SIDE RAIL, RH

main51110-0K020iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

51120EXTENSION ASSY, SIDE RAIL, LH

main51120-0K020iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

51202CROSSMEMBER SUB-ASSY, FRAME, NO.1

main51201-0K030iKUN50..4FC;GGN50,60,KUN51,6#,TGN51,61..ANCOM,GCC,GEN,IDN,IND,LA,MA,PHL,TH,VN200808-200911

main51201-0K031iGGN60..ANCOM;GGN50,KUN5#,6#,TGN51,61..ANCOM,GCC,GEN,IDN,IND,LA,MA,PHL,TH,VN200912-201204

main51201-0K060iGGN50,60,KUN51,61,LAN50,TGN51..SA200810-200911

main51201-0K061iGGN50,60,KUN51,61,LAN50,TGN51..SA200912-201108

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-0K030iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51203-0K010iKUN6#;GGN60,TGN61..(IDSUV,SUVW)..(4FC,5FC)200808-201204

main51203-0K020iKUN5#;GGN50..5FC200501-200711

main51203-0K021iKUN50..5F;GGN50..5FC;KUN51..SUVW,THSUV200712-200903

main51203-0K030iTGN61..5F200808-201204

main51203-0K050iGGN50,LAN50,TGN51..4FC,5F200501-200711

main51203-0K051iLAN50,TGN51;GGN50..5F..(GCC,GEN)200808-201102

main51203-0K090iGGN50..5FC..(GCC,GEN,SA);KUN5#..GEN,IND,MA,PHL,SA,TH201102-201204

main51203-0K100iGGN50,LAN50,TGN51..(4FC,5F)..(GCC,GEN,IDN,MA,SA,VN)201102-201204

sub51203-0K101

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-0K030iKUN51,TGN51200501-200504

main51204-0K031iGGN50,KUN5#,LAN50,TGN51200504-200711

main51204-0K032iGGN50..LHD;KUN51,LAN50,TGN51;GGN50,KUN50..RHD..(4FC,5FC)200808-201204

main51204-0K051iTGN61..SR;GGN60,KUN6#200504-200711

main51204-0K052iGGN60..ANCOM;TGN61..IDSUV..(GCC,IDN);KUN61,TGN61..5F..(LA,SA);GGN60,KUN60,TGN61..SUVW..(4FC,5F)..SR200712-200812

51206CROSSMEMBER SUB-ASSY, FRAME, NO.5

main51205-0K040iGGN50,60,KUN51,61..ANCOM,LA200501-200705

main51205-0K060iGGN50,60,KUN51,61..ANCOM,LA200705-200903

51206BCROSSMEMBER SUB-ASSY, FRAME, NO.6

main51206-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

main51206-0K021iGGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)200808-201204

51209CCROSSMEMBER SUB-ASSY, FRAME, REAR

main51209-0K010iGGN60..GEN200808-201008

51365STOPPER, REAR BUMPER

main57081-0K010×2iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-0K010iTGN51;TGN61..SUVW;TGN61..IDSUV..(GCC,IDN)200501-200810

main51401-0K020iKUN51,6#;KUN50..4FC200808-201204

sub51401-0K050

main51401-0K030iLAN50200810-201108

main51401-0K040iGGN50..LHD;GGN50..5FC..SA;GGN60..SUVW..5FC200808-201204

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-0K010iTGN51;TGN61..SUVW;TGN61..IDSUV..(GCC,IDN)200501-200810

main51402-0K020iKUN51,6#;KUN50..4FC200808-201204

sub51402-0K050

main51402-0K030iLAN50200605-200810

main51402-0K040iGGN50;GGN60..5F;GGN60..ANCOM200507-200903

51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH

main51501-0K020iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH

main51502-0K020iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

51503ABRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, RH

main51503-0K020iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

51504BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, LH

main51504-0K020iGGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)200808-201204

51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH

main51701-0K020iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

sub51701-KK010

51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH

main51701-0K020iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

sub51701-KK010

51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

main51703-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

main51704-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

51707CBRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH

main51707-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

51708ABRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH

main51708-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

51709CBRACKET SUB-ASSY, CAB MOUNTING, NO.5 RH

main51709-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

51709DBRACKET SUB-ASSY, CAB MOUNTING, NO.5 LH

main51709-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

57771APLATE, REAR SPRING, RH

main57771-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

sub57771-KK010

57772APLATE, REAR SPRING, LH

main57771-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

sub57771-KK010

77501UBRACKET SUB-ASSY, FUEL TANK

main77501-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

90105T0060

main90105-T0060

90105T0078

main90105-T0078

90178T0015

main90178-T0015
