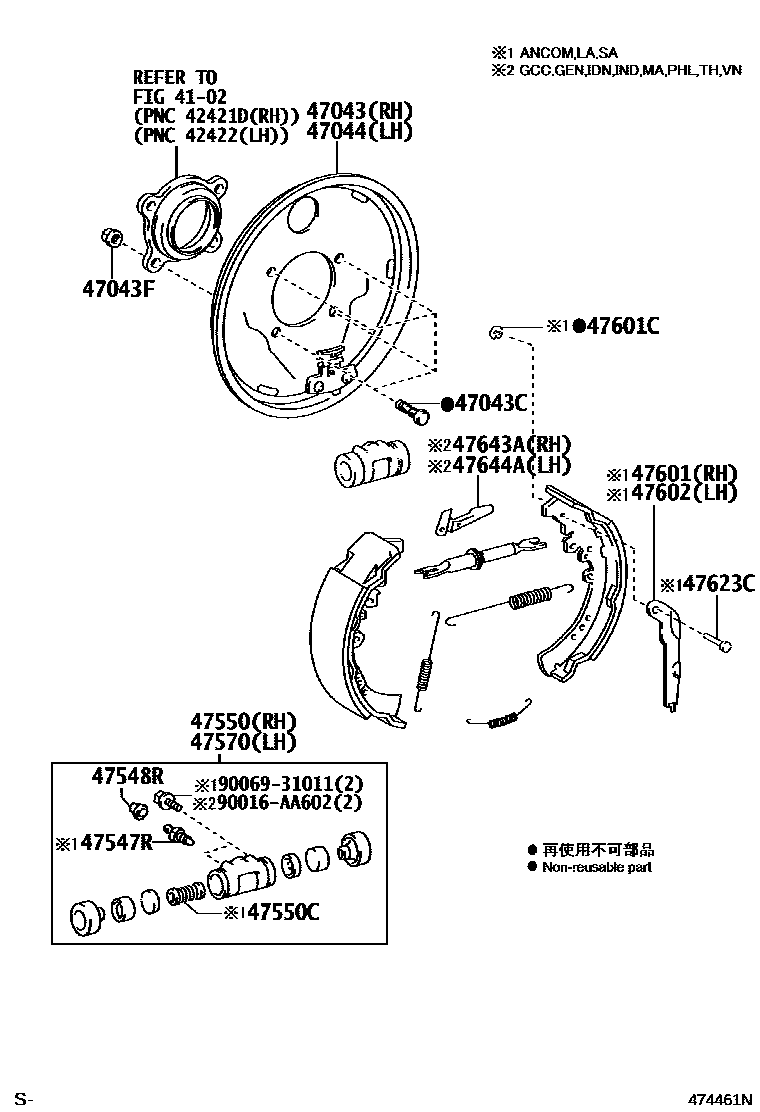

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

4102

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-0K050iTGN61..IDSUV..(GCC,IDN);GGN50,KUN50,TGN51..GCC,GEN,IDN,MA,TH;KUN51,60,TGN61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)200501-200809

main47043-0K060iGGN50,60,KUN51,61,LAN50,TGN51..SA200810-201108

main47043-0K070iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810-201204

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90114-10002×8iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR200501-200812

*10-1.25PX37-18.5

main90114-T0006×8iGGN50..5FC..SA;KUN51,6#,LAN50,TGN61;GGN60,KUN50..4FC,5FC;GGN50,TGN51..ANCOM,GCC,GEN,IDN,LA,MA,VN200808-201204

*10-1.25PX41-18

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90178-10026×8iGGN50,KUN5#,60,TGN51,61..GCC,IDN,MA,PHL,TH200509-200609

main90178-T0075×8iGGN50,KUN51,60,TGN51,61200501-200508

main90178-T0077×8iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR200610-200812

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-0K050iGGN60..GEN200808-201107

main47044-0K060iGGN50,60,KUN51,61,LAN50,TGN51..SA200810-201108

main47044-0K070iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main90069-0K072×2iGGN60..ANCOM;GGN60,KUN61,TGN61..5F..(LA,SA);GGN50,KUN51,LAN50,TGN51..ANCOM,LA,SA200509-200903

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-0K010×2iKUN50..4FC;GGN50,KUN51,6#,TGN51,61..GCC,GEN,IDN,IND,MA,PHL,TH,VN200808-201204

main31478-0K020×2iGGN50,60,KUN51,61,LAN50,TGN51..SA200810-201108

main31478-0K030×2iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810-201204

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-09070iGGN60..GEN200808-201107

main47550-09080iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810-201204

main47550-09090iGGN50,60,KUN51,61,LAN50,TGN51..SA200810-201108

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90069-51002×2iGGN60..ANCOM;GGN60,KUN61,TGN61..5F..(LA,SA);GGN50,KUN51,LAN50,TGN51..ANCOM,LA,SA200509-200903

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-09070iTGN61..IDSUV..(GCC,IDN);GGN50,KUN50,TGN51..GCC,GEN,IDN,MA,TH;KUN51,60,TGN61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)200501-200809

main47550-09080iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

main47550-09090iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200810

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47611-0K060iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200810

main47611-0K070iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

47601CWASHER, C(FOR REAR BRAKE)

main90069-52023×2iGGN50,60,KUN51,61,LAN50,TGN51,61..ANCOM,LA,SA200810-201204

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47612-0K060iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200810

main47612-0K070iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200903

47623CPIN, PARKING BRAKE LEVER

main90069-35000×2iGGN50,60,KUN51,61,LAN50,TGN51,61..LA,SA200509-200810

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-0K050iTGN61..IDSUV..(GCC,IDN);GGN50,KUN50,TGN51..GCC,GEN,IDN,MA,TH;KUN51,60,TGN61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)200501-200809

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-0K050iTGN61..IDSUV..(GCC,IDN);GGN50,KUN50,TGN51..GCC,GEN,IDN,MA,TH;KUN51,60,TGN61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)200501-200809

90016AA602

main90016-AA602

9006931011

main90069-31011

18 parts on this diagram · 2 diagrams in section
