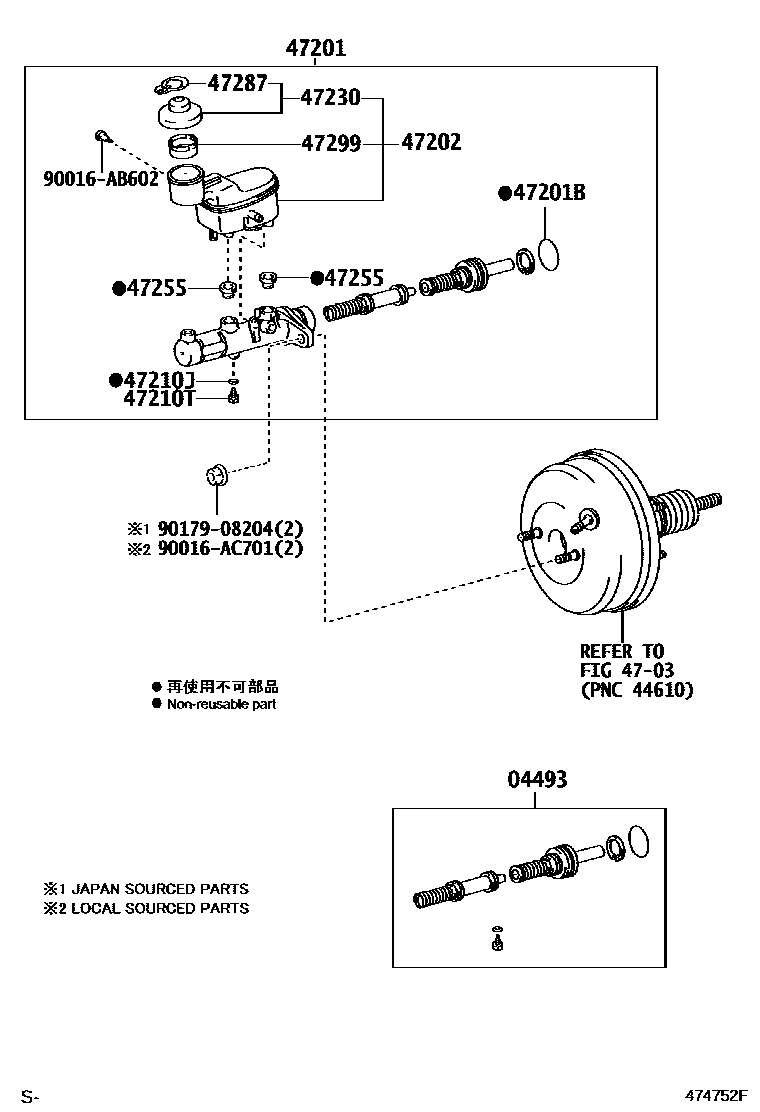

BRAKE MASTER CYLINDER

0001 1 0005 1W(VSC) 0008 1

04493CYLINDER KIT, BRAKE MASTER

main04493-0K010iKUN51..IND200908

*283 TYPE B:REF ILL.

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-09200iGGN50..5FC..SA200602-200810

main47201-09210iKUN51,61,LAN50,TGN51,61..LHD..5F..(LA,SA)200810

main47201-09220iKUN51..IND200908-201106

*283 TYPE A:REF ILL.

main47201-09230iKUN51,61..RHD..5F..SA200810-201108

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH(ABS & EBD & VSC & BA)

main47201-09240supersedes 47201-09240iGGN50,KUN51,TGN61..(4FC,5FC)..LA200810

main47201-0K010iKUN51,TGN51,61..RHD..4FC200501-200809

main47201-0K020iKUN51,60..5F..(IDN,TH)200808

main47201-0K030iTGN61..IDSUV..4FC..GCC;KUN51..(SUVW,THSUV)..4FC..(GEN,PHL);GGN50,TGN51..(4FC,5FC)..(ANCOM,GCC,GEN);GGN60,KUN60,TGN61..LHD..SUVW..(4FC,5FC)..SR200504-200903

main47201-0K040iGGN50,KUN51,60,TGN51,61..5F..(ANCOM,GCC,GEN,PHL,VN)200808

main47201-0K140iGGN50,60..SA201010-201108

sub47201-0K141

main47201-0K150iKUN51,61..RHD..5F..SA200810-201108

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH(ABS & EBD & VSC & BA)

sub47201-0K151

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iGGN50,60..SA201010-201108

main90016-AH901iKUN51..5F..(GEN,TH);KUN51..4FC..(GEN,PHL);GGN60,KUN50..(4FC,5FC)..(ANCOM,MA);GGN50,KUN60,TGN51,61..ANCOM,GCC,GEN,IDN,MA,PHL,TH,VN200808

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-09070iGGN50,KUN51,TGN61..(4FC,5FC)..LA200810

main47220-09080iKUN51..IND200908-201106

*283 TYPE A:REF ILL.

main47220-0K010iGGN50,KUN51..(4FC,5FC)..(ANCOM,GCC,GEN,PHL);GGN60,KUN50,60,TGN51,61..(4FC,5FC)..(ANCOM,GCC,IDN,MA,PHL,TH,VN)200808

main47220-0K020iKUN51..IND200908

*283 TYPE B:REF ILL.

main47220-0K080iGGN50,60..SA201010-201108

main47220-0K090iKUN51,61..RHD..5F..SA200810-201108

ABS (ANTI-LOCK BRAKE SYSTEM)-WITH(ABS & EBD & VSC & BA)

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iTGN61..IDSUV..(GCC,IDN);GGN60,TGN51..ANCOM,GCC,IDN,MA,TH;GGN50,KUN50..(5F,5FC)..(ANCOM,GCC,GEN,MA);KUN51,60,TGN61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)200501-200903

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iKUN51..IND201106

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D010iGGN50,60..SA201010-201108

main47230-0K010iKUN51..IND200908-201106

*283 TYPE A:REF ILL.

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010×2iGGN50,60..5FC..SA200808-201010

main90016-AT001×2iKUN51,61..4FC..(SA,TH)200808-201108

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-0K010iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

90016AB602

main90016-AB602

90016AC701

main90016-AC701

9017908204

main90179-08204
