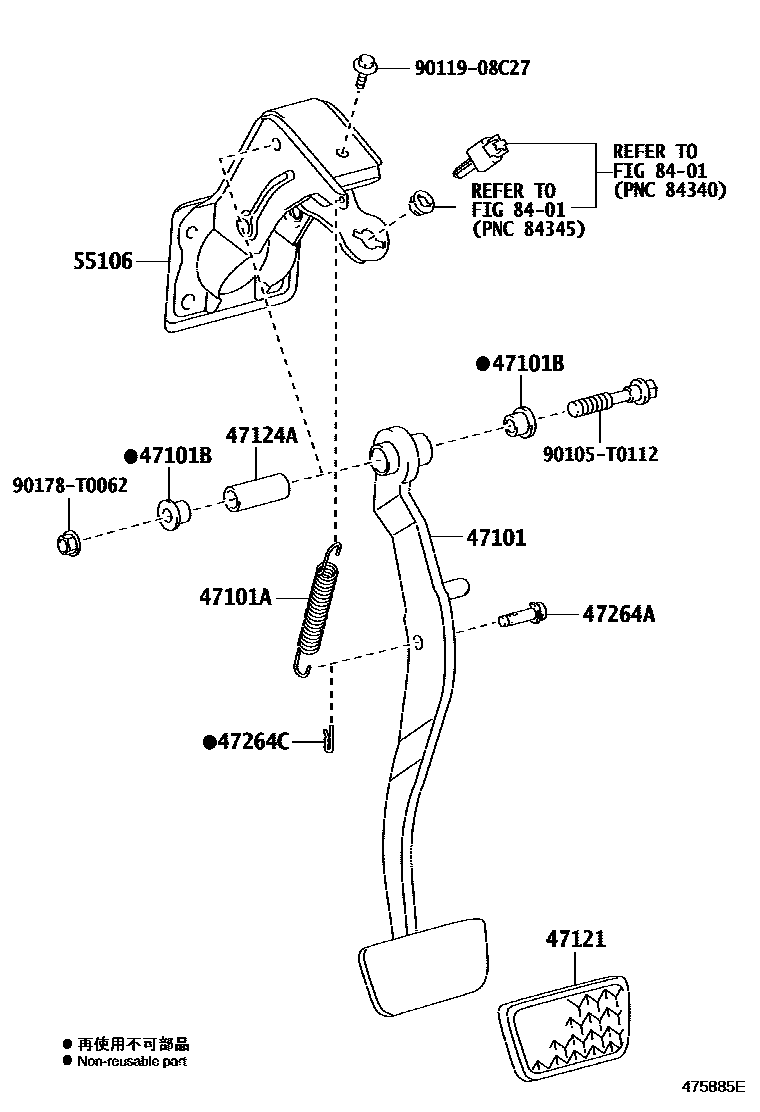

BRAKE PEDAL & BRACKET

0001 1 0006 1W(VSC)

47101PEDAL SUB-ASSY, BRAKE

main47101-0K010iKUN5#,60..SUVW..5F..(IDN,MA,TH)200501-200809

main47101-0K020iGGN50,KUN51,60,TGN51,61..5F..(GCC,GEN,PHL)200504-200808

main47101-0K030iGGN50,KUN51,61,TGN61..5F..(ANCOM,LA)200810

main47101-0K040iKUN51,61,LAN50..RHD..5F..SA200810-201108

main47101-0K050iKUN51,LAN50,TGN51..LHD..SA200605-200810

main47101-0K060iKUN51,TGN51,61..RHD..4FC200501-200809

main47101-0K070iGGN60..GEN200808-201107

sub47101-0K350

main47101-0K080iGGN50,KUN51,60,TGN51,61..LHD..IDSUV..(4FC,5FC)200808-201107

main47101-0K090iGGN50,60,KUN51,TGN61..(4FC,5FC)..(ANCOM,LA)200810

main47101-0K100iGGN50..5FC..SA200602-200810

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-T0002iGGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)200808

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iGGN50,60..5FC..SA200808-201010

47121PAD, BRAKE PEDAL

main31321-02010iGGN50,KUN51,61,TGN61..5F..(ANCOM,LA)200810

main31321-52010iKUN60..SUVW..5F;GGN50,60,KUN5#,61,LAN50,TGN51,61..5F..(GCC,GEN,MA,SA,TH)200501-200810

main47121-02010iGGN50,60,KUN51..(4FC,5FC)..(ANCOM,LA)200509-200903

main47121-52010iGGN60..GEN200808-201107

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iGGN60..GEN200808-201107

main90387-10121iGGN50,60,KUN51,61..(4FC,5FC)..(SA,TH)201011-201108

VSC-WITH

main90440-14008iGGN50,60..SA201010-201011

47264APIN(FOR PUSH ROD)

main47148-35010iGGN50,60..5FC..SA200808-201010

main90240-06025iGGN50,60..SA201010-201108

47264CCLIP(FOR PUSH ROD CLEVIS PIN)

main90468-16012iGGN50,60..5FC..SA200808-201010

main90468-16142iKUN51,61..4FC..(SA,TH)200808-201108

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-0K010iKUN61..5F;GGN50..5FC..SA;GGN50..ANCOM,LA;GGN60..SUVW..5FC;KUN60..IDSUV..5F..IDN;KUN51,LAN50,TGN51,61..IND,LA,SA200808-201010

main55106-0K011iTGN51..VN201009

main55106-0K030iGGN50,60,KUN51,61,TGN61..ANCOM,LA201010

main55106-71010iKUN51,61..RHD..4FC200808-201008

main55106-71011iGGN50,60..SA201010-201108

8401

90105T0112

main90105-T0112

9011908C27

main90119-08C27

90178T0062

main90178-T0062

12 parts on this diagram · 2 diagrams in section
