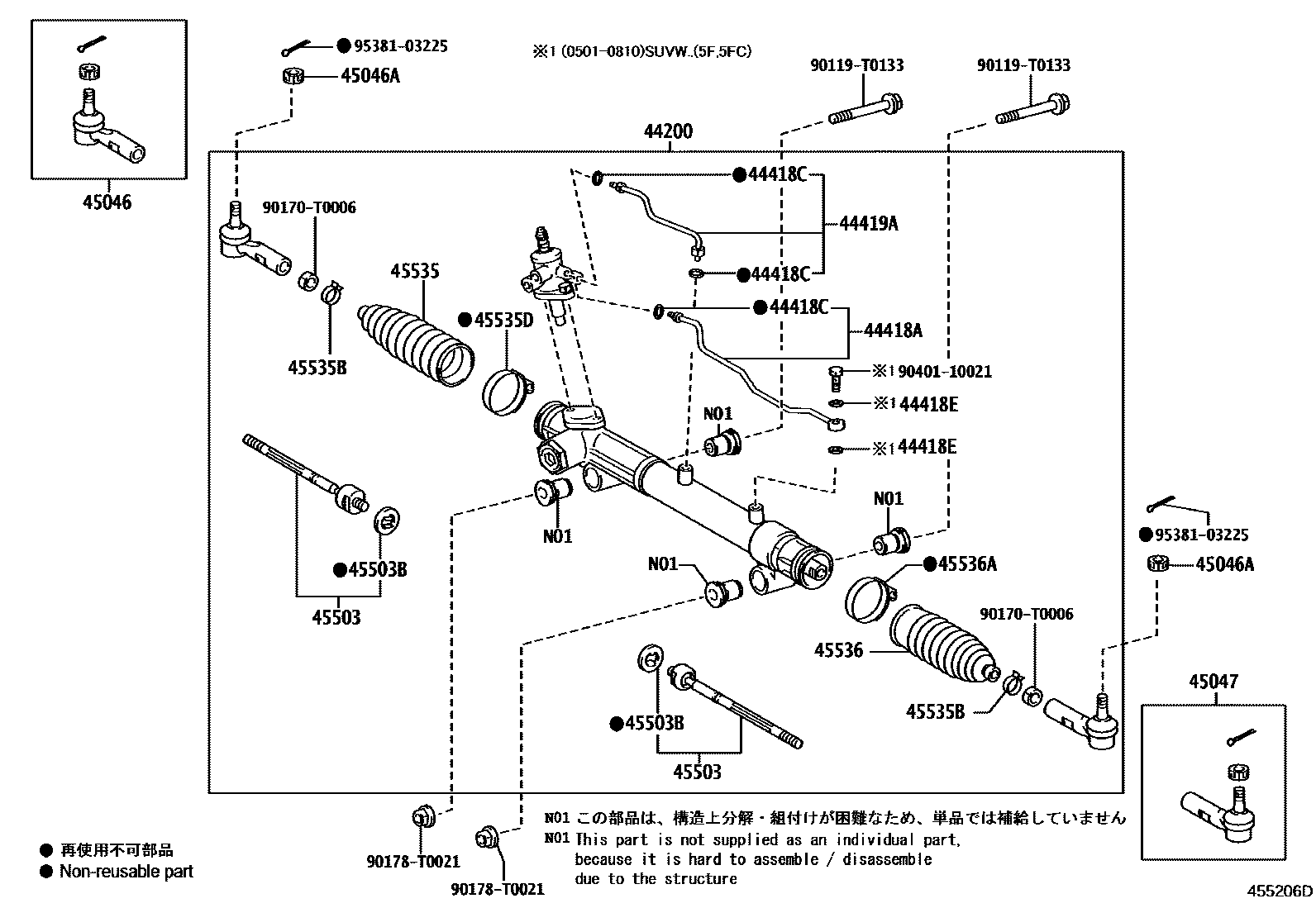

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

44200LINK ASSY, POWER STEERING

main44200-0K030iKUN51,TGN51,61..RHD;GGN50,60,KUN50,6#,LAN50..RHD..SUVW..(5F,5FC)200501-200810

sub44200-0K220

main44200-0K040iGGN50,TGN51,61..SUVW..GCC200808-201101

main44200-0K080iKUN61,TGN61..5F..LA200810-201110

sub44200-0K270

main44200-0K160iKUN51,6#..RHD;GGN50,60,KUN50,TGN51,61..RHD..(4FC,5FC)200808-201101

main44200-0K170iKUN51..LHD..(GEN,PHL,SA);GGN50,60,KUN60,TGN51,61..ANCOM,GEN,PHL,VN200808-201101

TIRE & DISC WHEEL-265/65R17 7.5J ALMINUM

main44200-0K180iGGN50,KUN51..LA200810-201110

sub44200-0K330

main44200-0K190iKUN51..LHD..SA200904-201102

TIRE & DISC WHEEL-265/70R16 7J

main44200-0K230iGGN50,TGN51,61..SUVW..GCC201102-201107

sub44200-0K390

main44200-0K310supersedes 44200-0K280iGGN50,60,KUN5#,6#,TGN51,61..RHD201102-201201

sub44200-0K470

main44200-0K320iGGN50,60,KUN51,60,TGN61..LHD..(ANCOM,GEN,PHL,SA)201102-201203

W(LABEL)

sub44200-0K480

main44200-0K340iKUN51..LHD..SA201103-201108

TIRE & DISC WHEEL-265/70R16 7J

sub44200-0K500

main44200-0K560iKUN60,TGN51201201-201202

W/O(LABEL)

sub44200-0K580

44418ATUBE, STEERING RIGHT TURN PRESSURE

main44418-0K140supersedes 44418-0K170iKUN51,TGN51,61..RHD;GGN50,60,KUN50,6#,LAN50..RHD..SUVW..(5F,5FC)200501-200810

main44418-0K150supersedes 44418-0K180iKUN60,TGN51..VN200808-201201

main44418-0K160iGGN50,KUN51,61,TGN61..LA200810-201110

main44418-0K180iKUN60,TGN51201201-201202

44418CRING, O(FOR STEERING TURN PRESSURE TUBE)

main90301-T0032×3supersedes 90301-T0032iKUN60,TGN51..VN200808-201201

44418EGASKET(FOR STEERING TURN PRESSURE TUBE)

main90430-10008×2iKUN51,TGN51,61..RHD;GGN50,60,KUN50,6#,LAN50..RHD..SUVW..(5F,5FC)200501-200810

44419ATUBE, STEERING LEFT TURN PRESSURE

main44419-0K140supersedes 44419-0K170iKUN51,TGN51,61..RHD;GGN50,60,KUN50,6#,LAN50..RHD..SUVW..(5F,5FC)200501-200810

main44419-0K150supersedes 44419-0K180iKUN60,TGN51..VN200808-201201

main44419-0K160iGGN50,KUN51,61,TGN61..LA200810-201110

main44419-0K180iKUN60,TGN51201201-201202

45046END SUB-ASSY, TIE ROD, RH

main45046-09281iTGN51;GGN60..ANCOM;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(ANCOM,GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,T200501-200812

main45046-09310iKUN51,61,TGN61..LA200509-200810

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-T0002×2iGGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)200808

45047END SUB-ASSY, TIE ROD, LH

main45046-09281iTGN51;GGN60..ANCOM;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(ANCOM,GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,T200501-200812

main45046-09310iKUN51,61,TGN61..LA200509-200810

45503END SUB-ASSY, STEERING RACK

main45503-09321×2supersedes 45503-09331iTGN61..SUVW..SR;GGN60..SUVW..5FC;TGN61..IDSUV..(IDN,PHL);KUN51,6#..GEN,IDN,IND,PHL,SA,TH;GGN50,KUN50,TGN51..RHD..(4FC,5FC);GGN50,TGN51..(SUVW,THSUV)..(ANCOM,GCC,GEN200808-201204

main45503-09331×2iKUN60,TGN51201201-201204

main45503-09340×2iKUN51,61,TGN61..LA200509-200810

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-T0001×2supersedes 90214-T0002iGGN60..GEN200808-201107

OD=43

main90214-T0002×2iKUN60,TGN51201201-201204

OD=43

45535BOOT, STEERING RACK, NO.1

main45535-0K010iGGN60..GEN200808-201107

45535BCLIP(FOR STEERING RACK BOOT)

main90080-46370×2iKUN51,61,TGN61..LA200509-200810

main90466-T0004×2supersedes 90466-T0005iGGN60..GEN200808-201107

main90466-T0005×2iKUN60,TGN51201201-201204

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90080-46371iKUN51,61,TGN61..LA200509-200810

main90460-T0001iTGN51;GGN60..ANCOM;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(ANCOM,GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,T200501-200812

45536BOOT, STEERING RACK, NO.2

main45536-0K010iGGN60..GEN200808-201107

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90080-46371iGGN50,KUN51,61,TGN61..LA200810-201204

main90460-T0001iGGN60..GEN200808-201107

90119T0133

main90119-T0133

90170T0006

main90170-T0006

90178T0021

main90178-T0021

9040110021

main90401-10021

9538103225

main95381-03225

20 parts on this diagram · 4 diagrams in section
