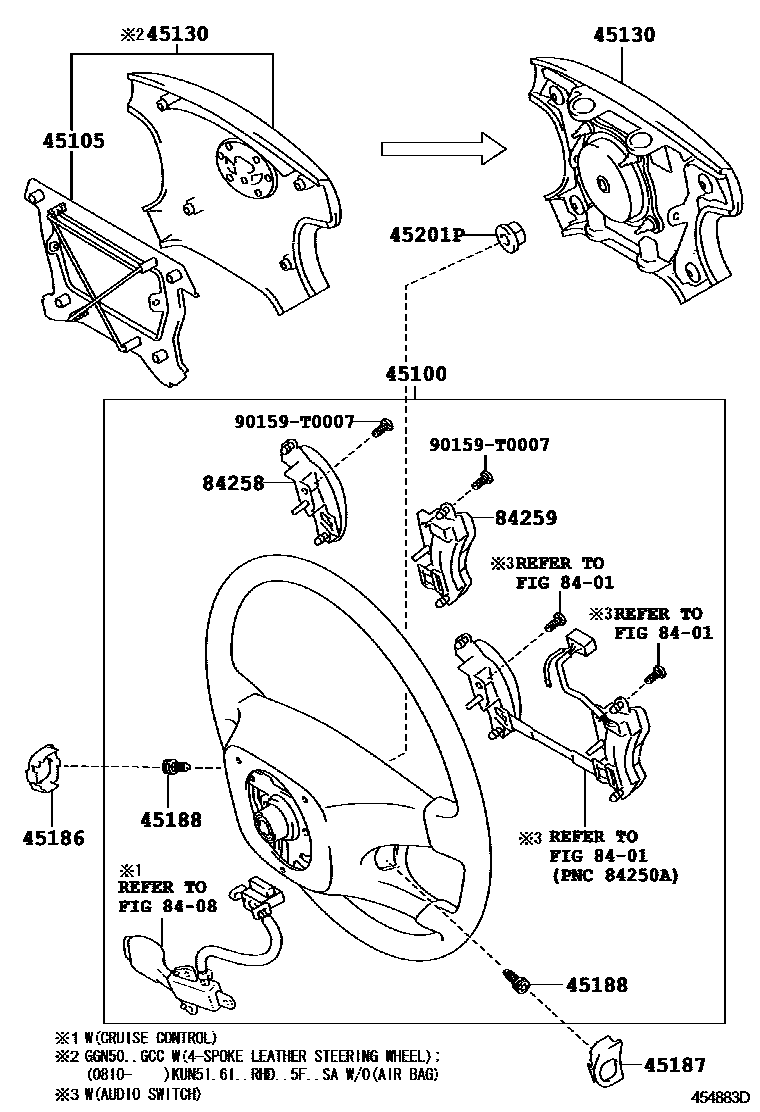

STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE,URETHANE,SANDAL WOOD,TRIM0#
4-SPOKE,URETHANE,DK.GRAY,TRIM1#
4-SPOKE,URETHANE,SANDAL WOOD,TRIM0#
main45100-0K020-E1supersedes 45100-02090-E4iKUN50..4FC;KUN51..5F..TH;GGN50,60,KUN60..GEN,TH,VN200808-201202
4-SPOKE,URETHANE,ASH BROWN,TRIM4#
4-SPOKE,LEATHER,SANDAL WOOD,TRIM0#
3-SPOKE,URETHANE,SANDAL WOOD,TRIM0#
3-SPOKE,URETHANE,ASH BROWN,TRIM4#
4-SPOKE,URETHANE,SANDAL WOOD,TRIM0#
4-SPOKE,URETHANE,ASH BROWN,TRIM4#
4-SPOKE,LEATHER,SANDAL WOOD,TRIM0#
4-SPOKE,LEATHER,SANDAL WOOD,TRIM0#
sub45100-0K320
main45100-0K161-E1supersedes 45100-0K161-E1iTGN51,61..IDN,PHL,TH,VN;KUN51,60..(IDSUV,SUVW)..(GEN,IDN,IND,PHL)200808-201202
4-SPOKE,LEATHER,ASH BROWN,TRIM4#
sub45100-0K320
4-SPOKE,LEATHER,SANDAL WOOD,TRIM0#
main45100-0K310-E0supersedes 45100-0K330-E0iKUN61..SR;KUN51..RHD..SA;KUN51..4FC..TH;GGN50,60..5FC..SA200808-201108
4-SPOKE,LEATHER,ASH BROWN,TRIM4#,WITH(CRUISE CONTROL)
sub45100-0K330
4-SPOKE,LEATHER,SEAT COVER MATERIAL-LEATHER,SANDAL WOOD,TRIM0#
4-SPOKE,LEATHER,SRS AIR BAG-WITH(DRIVER & PASSENGER),ASH BROWN,TRIM4#
4-SPOKE,LEATHER,SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),ASH BROWN,TRIM4#
4-SPOKE,LEATHER,SEAT COVER MATERIAL-LEATHER,SANDAL WOOD,TRIM0#
4-SPOKE,URETHANE,SRS AIR BAG-WITH(DRIVER & PASSENGER),ASH BROWN,TRIM4#
4-SPOKE,LEATHER,SEAT COVER MATERIAL-LEATHER,SANDAL WOOD,TRIM0#
4-SPOKE,LEATHER,SEAT COVER MATERIAL-LEATHER,SANDAL WOOD,TRIM0#
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45130BUTTON ASSY, HORN
ASH BROWN,TRIM4#
DK.GRAY,TRIM1#
main45130-0K010-E0supersedes 45130-06120-E0iKUN51..5F..(GEN,TH);KUN51..(SUVW,THSUV)..4FC..(GEN,PHL);GGN50,KUN50,60,TGN51,61..(SUVW,THSUV)..(GEN,MA,PHL)200501-200809
SANDAL WOOD,TRIM0#
ASH BROWN,TRIM4#
SANDAL WOOD,TRIM0#
ASH BROWN,TRIM4#
SANDAL WOOD,TRIM0#
main45130-0K060-E1supersedes 45130-06190-E2iKUN51..THSUV;KUN51..5F..LA;KUN60..IDN,PHL;KUN51..4FC..(LA,PHL,TH);KUN51..RHD..(GEN,IND,SA);KUN61,TGN61..IDN,PHL,SA,TH;GGN50,60,TGN51..(4FC,5FC)..(IDN,LA,SA,VN)200808-201202
ASH BROWN,TRIM4#
SANDAL WOOD,TRIM0#
sub45130-0K320
ASH BROWN,TRIM4#
sub45130-0K320
SEAT COVER MATERIAL-LEATHER,SANDAL WOOD,TRIM0#
SRS AIR BAG-WITH(DRIVER & PASSENGER),ASH BROWN,TRIM4#
sub45130-0K310
45186COVER, STEERING WHEEL, LOWER NO.2
SANDAL WOOD,TRIM0#
main45186-06090-E2supersedes 45186-06090-E2iKUN51..5F..(GEN,LA);TGN51,61..IDN,PHL,TH,VN;GGN50,KUN51,60..(IDSUV,SUVW)..(GCC,GEN,IDN,IND,PHL)200808-201202
ASH BROWN,TRIM4#
main45186-06100-E1iKUN61..SR;KUN51..RHD..SA;KUN51..THSUV..4FC;KUN51..4FC..(LA,TH);GGN50,60..5FC..(LA,SA)200808-201110
ASH BROWN,TRIM4#
45187COVER, STEERING WHEEL, LOWER NO.3
SANDAL WOOD,TRIM0#
main45187-06050-E2supersedes 45187-06050-E2iKUN51..THSUV;KUN51..5F..LA;KUN51..4FC..(LA,PHL,TH);KUN51..RHD..(GEN,IND,SA);KUN61,TGN61..IDN,PHL,SA,TH;GGN50,KUN60..GCC,IDN,LA,PHL;GGN50,60,TGN51..(4FC,5FC)..(IDN,S200808-201202
ASH BROWN,TRIM4#
45188SCREW, STEERING WHEEL PAD ATTACHING
main45188-0K010×2iGGN60,KUN51..ANCOM,LA;GGN60,KUN51..RHD..5F..SA;GGN50,KUN61..(5F,5FC)..(ANCOM,SA)200509-200812
L=18
main45188-60010×2iKUN6#..SR;KUN51..RHD;GGN50..5FC..(GEN,LA,SA);GGN50,KUN51..LHD..(4FC,5F)..(GEN,LA,PHL);GGN60,KUN50,TGN51,61..(4FC,5FC)..(GEN,IDN,MA,PHL,SA,TH,VN)200808-201202
L=18
45201PNUT, STEERING WHEEL SET
main90179-12071iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR200501-200812
8401
8408
84258COVER, STEERING PAD, RH
SEAT COVER MATERIAL-LEATHER,SANDAL WOOD,TRIM0#
84259COVER, STEERING PAD, LH
SEAT COVER MATERIAL-LEATHER,SANDAL WOOD,TRIM0#
90159T0007
main90159-T0007
12 parts on this diagram · 2 diagrams in section
