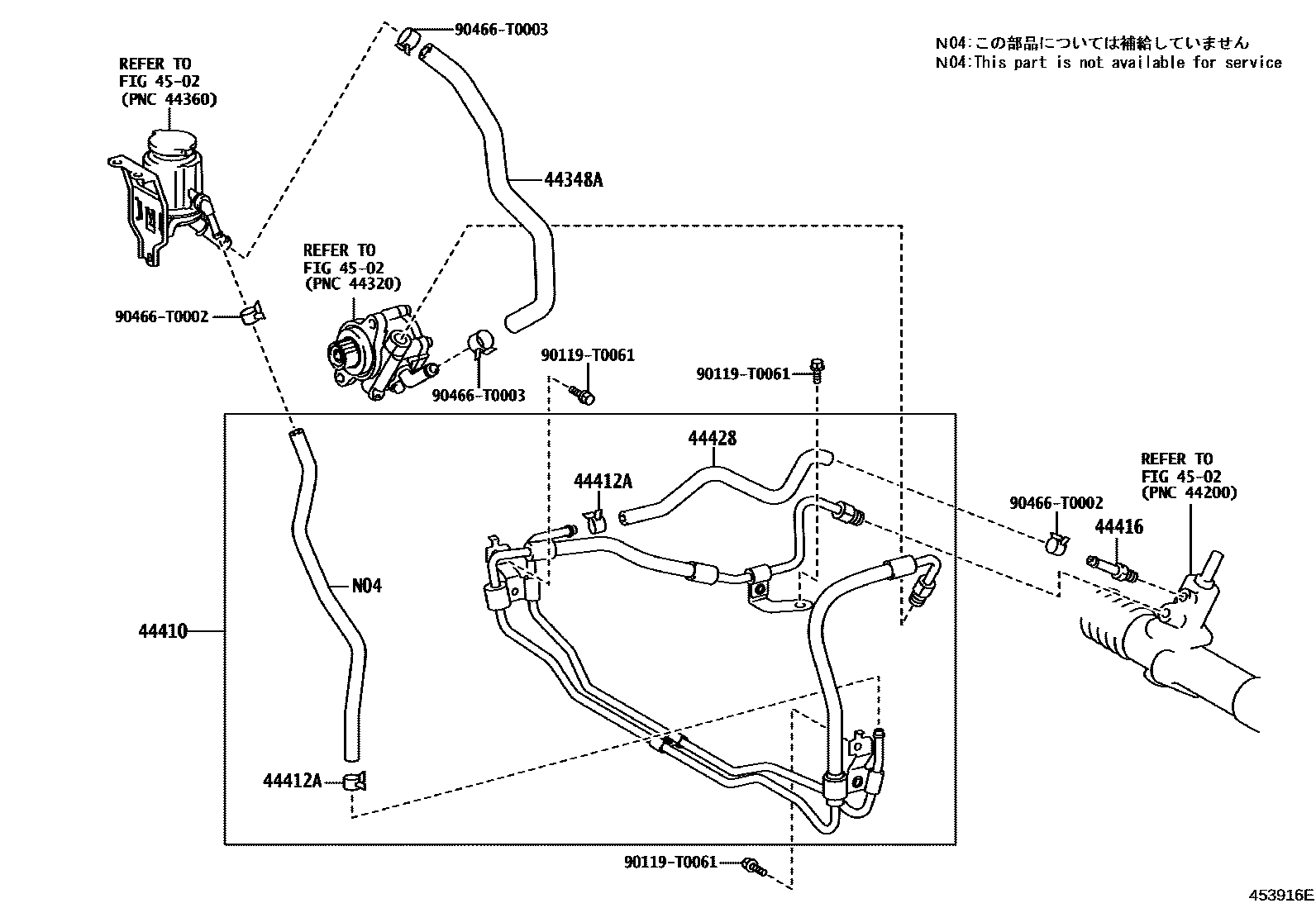

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-0K010iKUN51,6#;KUN50..4FC200501-200810

main44348-0K030iLAN50200605-201108

main44348-0K040iGGN50..LHD;GGN50..5FC..SA;GGN60..SUVW..5FC200507-201107

44410TUBE ASSY, PRESSURE FEED

main44410-0K090iTGN51,61..RHD200501-201109

main44410-0K120iKUN51..RHD;KUN50,6#..RHD..SUVW..5F200501-200810

main44410-0K140iLAN50..RHD200605-201108

main44410-0K150iGGN50..GCC200507-200808

main44410-0K160iGGN60..ANCOM;GGN50..ANCOM,GEN200602-201107

44412ACLAMP, RUBBER HOSE COMPLETE (FOR RETURN HOSE)

main90466-T0002iTGN51,61..RHD;KUN51,60..SUVW,THSUV;GGN50,60,KUN50,61,LAN50..(5F,5FC)..(GCC,LA,MA,SA)200501-201202

main90466-T0006iLAN50..RHD200810-201108

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-0K010iTGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR200501-201107

44428HOSE, RETURN, NO.2

main44428-0K030iKUN51,6#..LHD..(SUVW,THSUV)200504-201202

main44428-0K040iLAN50..LHD200605-201108

main44428-0K050iGGN50,60..SA200602-201108

main44428-0K100iTGN51,61..RHD200501-201109

main44428-0K110iKUN51..RHD;KUN50,6#..RHD..SUVW..5F200501-201201

main44428-0K120iLAN50..RHD200605-201108

main44428-0K130iGGN50..GCC,LA200507-201110

4502

90119T0061

main90119-T0061

90466T0002

main90466-T0002

90466T0003

main90466-T0003

9 parts on this diagram · 8 diagrams in section
