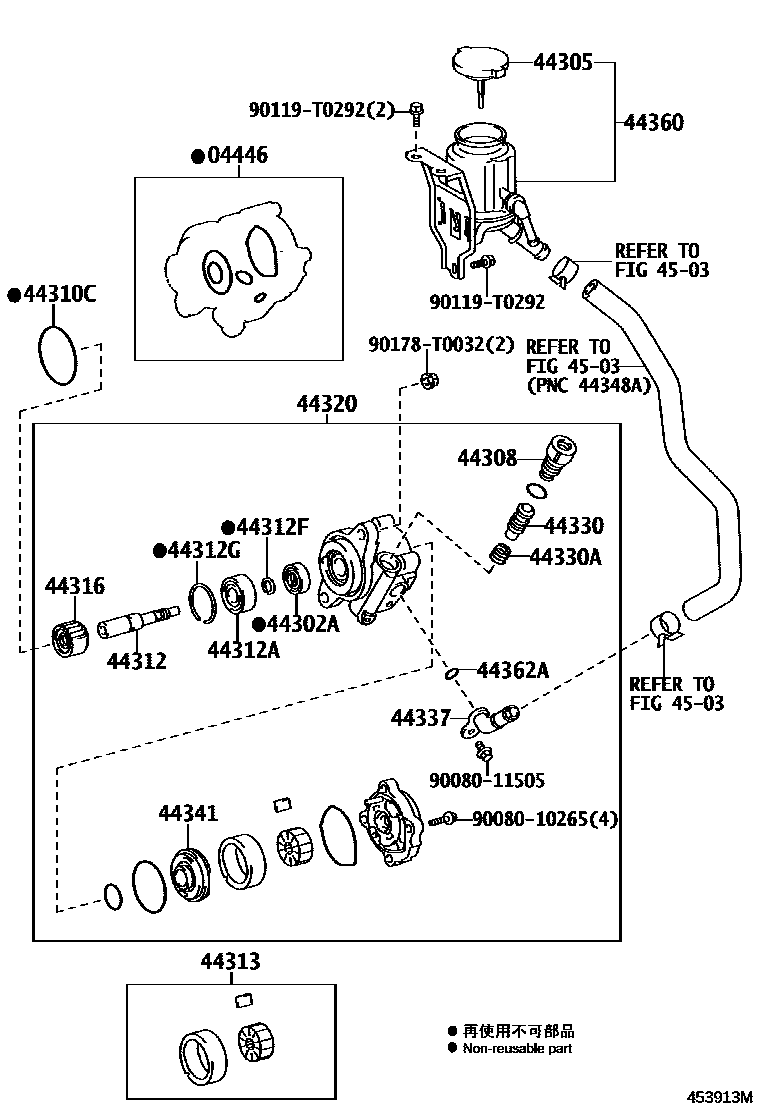

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1 0004 1

04446GASKET KIT, POWER STEERING PUMP

main04446-06060iGGN50,60,TGN51,61200501-200803

main04446-06110iTGN51,61;GGN60..5FC;GGN50..LHD;GGN50..5FC..SA200804-201204

main04446-0B030iLAN50200605-201108

main04446-0B040iKUN5#,6#200501-200804

sub04446-0K010

main04446-0K010iKUN51,6#;KUN50..4FC200804-201202

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-04050iLAN50200605-200810

44302ASEAL, OIL, NO.1(FOR VANE PUMP HOUSING)

main90316-T0001iKUN50,61..5F;KUN51,60..SUVW,THSUV200501-200810

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-0K020iGGN50,60,KUN5#,6#,LAN50200501-200709

sub44305-0K040

main44305-0K040iGGN60..ANCOM;GGN50,KUN50,61,LAN50..5F,5FC;GGN60,KUN51,60..(SUVW,THSUV)..(4FC,5F)200710-201102

sub44305-0K041

main44305-0K041iGGN60..SUVW;GGN50,KUN5#,6#,LAN50201103-201204

sub44305-0K042

main44305-22040iTGN51,61200501-200801

sub44305-22060

main44305-22060iTGN51;TGN61..SUVW;TGN61..IDSUV..(GCC,IDN)200802-201204

sub44305-22061

44308UNION SUB-ASSY, PRESSURE PORT

main44308-0K040iTGN51,61;GGN60..5FC;GGN50..LHD;GGN50..5FC..SA200501-200812

main44308-0K050iKUN51,6#;KUN50..4FC200501-200810

main44308-0K060iLAN50200605-201108

44310CRING, O(FOR VANE PUMP)

main90301-T0014iKUN50,61..5F;KUN51,60..SUVW,THSUV200501-200810

44312SHAFT, VANE PUMP

main44312-06030iLAN50200605-201108

OD=17.999-18.004

main44312-06040iLAN50200605-201108

OD=17.994-17.999

main44312-0K010iKUN51,6#;KUN50..4FC200501-200810

44312ABEARING(FOR VANE PUMP SHAFT)

main90363-T0005iKUN50,61..5F;KUN51,60..SUVW,THSUV200501-200810

44312FRING, SNAP, NO.1(FOR VANE PUMP SHAFT BEARING)

main90520-T0001iKUN50,61..5F;KUN51,60..SUVW,THSUV200501-200810

44312GRING, SNAP, NO.2(FOR VANE PUMP SHAFT BEARING)

main90520-T0002iKUN50,61..5F;KUN51,60..SUVW,THSUV200501-200810

44313ROTOR, VANE PUMP

main44313-09010iKUN50,61..5F;KUN51,60..SUVW,THSUV200501-200810

main44313-09030iGGN50,TGN51;TGN61..IDSUV..(GCC,IDN);GGN60,TGN61..SUVW..(4FC,5F)..SR;GGN60,TGN61..(5F,5FC)..(ANCOM,LA)200501-201107

main44313-09040iLAN50200605-201108

44316GEAR, VANE PUMP

main44316-0K010iKUN51,6#;KUN50..4FC200501-200810

44320PUMP ASSY, VANE

main44310-0K030iTGN51,61200501-200810

main44310-0K040iKUN51,6#;KUN50..4FC200501-200810

main44310-0K060iGGN50;GGN60..5F;GGN60..ANCOM200507-200812

main44320-0K020iLAN50200605-201108

44330VALVE ASSY, FLOW CONTROL

main44330-04010iLAN50200605-201108

MARK A

main44330-04020iLAN50200605-201108

MARK B

main44330-04030iLAN50200605-201108

MARK C

main44330-04040iLAN50200605-201108

MARK D

main44330-04050iLAN50200605-201108

MARK E

main44330-04060iLAN50200605-201108

MARK F

main44330-0K010iTGN51,61;GGN60..5FC;GGN50..LHD;GGN50..5FC..SA200501-200812

MARK A

main44330-0K020iGGN50,TGN51;TGN61..IDSUV..(GCC,IDN);GGN60,TGN61..SUVW..(4FC,5F)..SR;GGN60,TGN61..(5F,5FC)..(ANCOM,LA)200501-200812

MARK B

main44330-0K030iGGN50,TGN51;TGN61..IDSUV..(GCC,IDN);GGN60,TGN61..SUVW..(4FC,5F)..SR;GGN60,TGN61..(5F,5FC)..(ANCOM,LA)200501-200812

MARK C

main44330-0K040iGGN50,TGN51;TGN61..IDSUV..(GCC,IDN);GGN60,TGN61..SUVW..(4FC,5F)..SR;GGN60,TGN61..(5F,5FC)..(ANCOM,LA)200501-200812

MARK D

main44330-0K050iTGN51,61;GGN60..5FC;GGN50..LHD;GGN50..5FC..SA200501-200812

MARK E

main44330-0K060iGGN50,TGN51;TGN61..IDSUV..(GCC,IDN);GGN60,TGN61..SUVW..(4FC,5F)..SR;GGN60,TGN61..(5F,5FC)..(ANCOM,LA)200501-200812

MARK F

main44330-0K130iKUN51,6#;KUN50..4FC200501-200810

MARK A

main44330-0K140iKUN50,61..5F;KUN51,60..SUVW,THSUV200501-200810

MARK B

main44330-0K150iKUN50,61..5F;KUN51,60..SUVW,THSUV200501-200810

MARK C

main44330-0K160iKUN51,6#;KUN50..4FC200501-200810

MARK D

main44330-0K170iKUN50,61..5F;KUN51,60..SUVW,THSUV200501-200810

MARK E

main44330-0K180iKUN50,61..5F;KUN51,60..SUVW,THSUV200501-200810

MARK F

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90080-50247iLAN50200605-201108

main90501-T0001iGGN50..LHD;GGN50..5FC..SA;KUN51,6#,TGN51,61;GGN60,KUN50..4FC,5FC200501-200812

44337UNION, POWER STEERING SUCTION PORT

main44337-06060iGGN60..ANCOM;GGN50,KUN50,61..5F,5FC;GGN60,KUN51,60..(SUVW,THSUV)..(4FC,5F)200501-200812

main44337-0K020iLAN50200605-201108

44341PLATE, VANE PUMP SIDE, FRONT

main44341-06010iTGN51;GGN50,KUN50,61..5F,5FC;TGN61..IDSUV..(GCC,IDN);GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR200501-200812

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-0K010iKUN50,61,LAN50..5F;KUN51,60..SUVW,THSUV200501-200810

sub44360-0K011

main44360-0K030iGGN50;GGN60..5F;GGN60..ANCOM200507-200812

sub44360-0K031

44362ARING, O(FOR VANE PUMP OIL RESERVOIR)

main90080-30093iTGN51;GGN50,KUN50,61..5F,5FC;TGN61..IDSUV..(GCC,IDN);GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR200501-200812

4503

9008010265

main90080-10265

9008011505

main90080-11505

90119T0292

main90119-T0292

90178T0032

main90178-T0032

24 parts on this diagram · 4 diagrams in section
