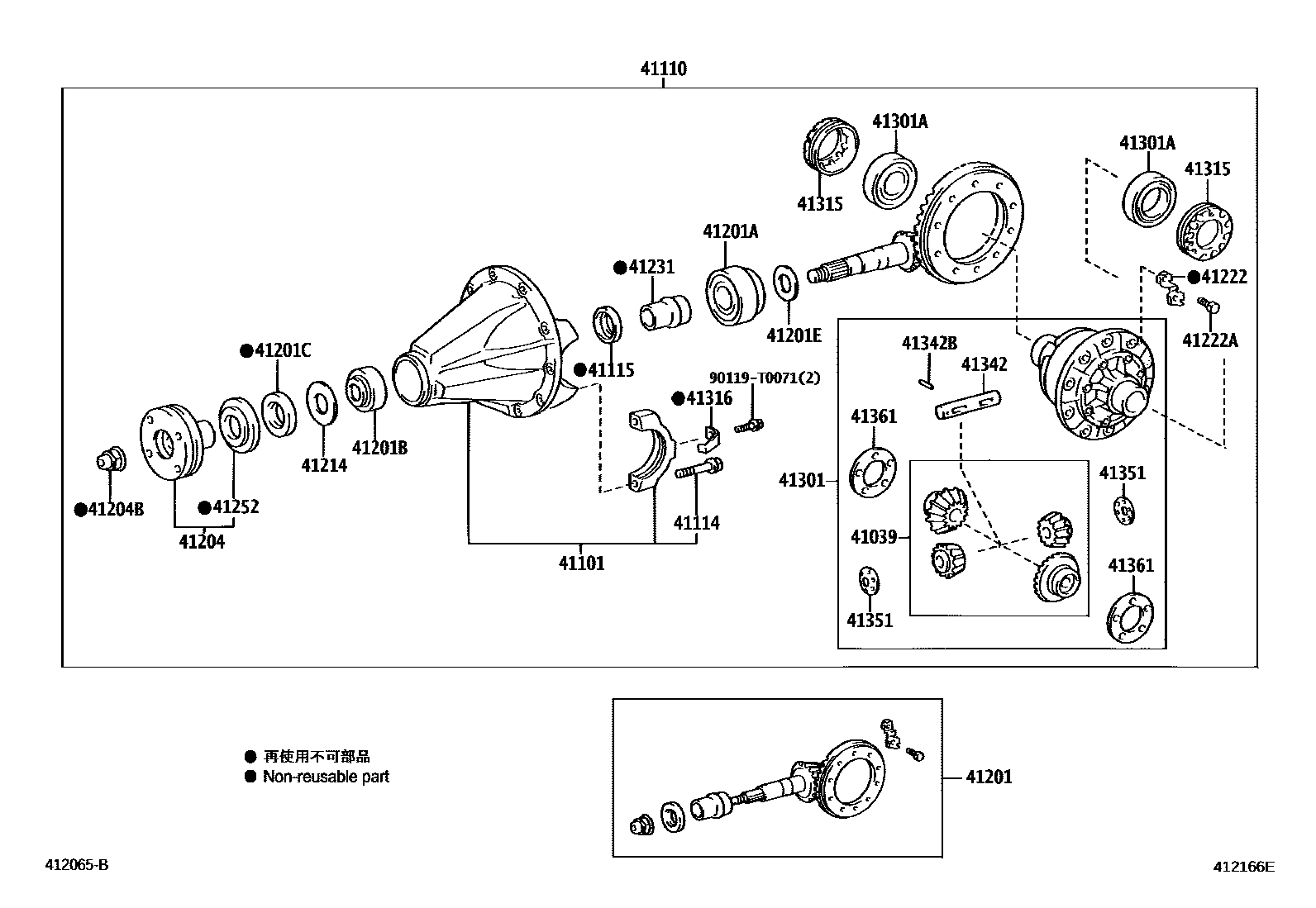

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0003 1W(REAR DIFFRENTIAL LOCK) 0005 1W(REAR DIFFRENTIAL LOCK) 0007 1 0008 1 0010 1BRAZIL SPEC 0011 1

41039GEAR KIT, DIFFERENTIAL, REAR

main41039-34060iGGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN)200808

main41039-34070iKUN61..LA;TGN61..4FC..LA200810

BRAZIL SPEC

main41039-71010iTGN61..SUVW..SR;TGN51..GCC,IDN,MA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN5#,60..(SUVW,THSUV)..(GEN,IDN,MA,PHL,TH)200501-200809

main41039-71011iGGN50..GCC201012-201107

DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-0K010iTGN61..SUVW..SR;TGN51..GCC,IDN,MA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN5#,60..(SUVW,THSUV)..(GEN,IDN,MA,PHL,TH)200501-200809

main41101-0K040iGGN50,60,KUN51..ANCOM,LA;LAN50,TGN51,61..5F..(LA,SA)200509-200812

main41101-35150iGGN50,60,KUN51,61..GCC,SA200507-200810

sub41101-35151

main41101-35170iKUN61..LA200509-200810

main41101-35171iKUN61..LA;TGN61..4FC..LA200908

BRAZIL SPEC

sub41101-35172

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-0K010iGGN50..GCC200808-201005

*FGR=43:12=3.583,DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)

main41110-0K011supersedes 41110-71270iGGN50,60,KUN51..(5F,5FC)..(GEN,IND,TH)201005-201201

*FGR=43:12=3.583

sub41110-0K012

main41110-0K030iKUN50,60..SUVW;KUN51..(SUVW,THSUV)..4FC..(GEN,PHL,TH)200501-200809

*FGR=43:11=3.909

main41110-0K031iKUN6#..IDN,PHL,TH,VN;KUN51..4FC..(GEN,PHL,TH)201005-201202

*FGR=43:11=3.909

sub41110-0K032

main41110-0K050iTGN51..4FC;TGN61..SUVW..4FC;TGN61..IDSUV..4FC..(GCC,IDN)200501-200809

*FGR=41:9=4.555

main41110-0K051iTGN51,61..4FC..(GCC,IDN,MA,PHL,TH)201005-201109

*FGR=41:9=4.555

sub41110-0K052

main41110-0K110iGGN50,60,KUN51..(5F,5FC)..(ANCOM,LA)200509-200705

*FGR=43:12=3.583

main41110-0K120iKUN51..4FC..LA200509-200705

*FGR=43:11=3.909

main41110-0K400iGGN50,60,KUN51..(5F,5FC)..(ANCOM,LA)200705-200812

*FGR=43:12=3.583

main41110-0K420iKUN51..4FC..LA200810-201110

*FGR=43:11=3.909

main41110-3D410iTGN61..4FC..LA200810-200903

*FGR=41:9=4.555

sub41110-3D411

main41110-6A340iKUN61..4FC..SA200810-200903

*FGR=43:11=3.909

sub41110-6A341

main41110-6A370iTGN51..VN200902-201003

*FGR=41:9=4.555

sub41110-6A371

main41110-71010iKUN61..LA200509-200810

*FGR=43:12=3.583

main41110-71050iGGN50,60,KUN51,61..GCC,SA200507-200810

*FGR=43:12=3.583

sub41110-71051

main41110-71270iGGN50,60,KUN51,61..(5F,5FC)..SA200903-201108

*FGR=43:12=3.583

sub41110-71271

main41110-71280iKUN51,61..4FC..SA200903-201108

*FGR=43:11=3.909

sub41110-71281

main41110-71300supersedes 41110-0K490iTGN51..VN201003-201202

*FGR=41:9=4.555

sub41110-71301

main41110-71310iKUN61..LA200905-201110

*FGR=43:12=3.583

sub41110-71311

main41110-71340iTGN61..4FC..LA200903-201009

*FGR=41:9=4.555

sub41110-71341

main41110-3D390supersedes 41110-0K430iTGN61..5F..LA200810-200903

*FGR=41:10=4.100,BRAZIL SPEC

sub41110-3D391

main41110-6A350supersedes 41110-0K480iTGN51..SA200808-200903

*FGR=41:10=4.100,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)

sub41110-6A351

main41110-71290supersedes 41110-0K041iTGN51,61..5F..GCC201003-201108

*FGR=41:10=4.100,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)

sub41110-71291

main41110-71330supersedes 41110-0K430iTGN61..LA201012-201110

*FGR=41:10=4.100,BRAZIL SPEC

sub41110-71331

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90080-10301×4iGGN50,60,KUN51..ANCOM,LA;LAN50,TGN51,61..5F..(LA,SA)200509-200812

main90105-12053×4iKUN61..5F;GGN50,60,KUN51..GCC,SA200507-200810

main90105-T0081×4iTGN51,61..GCC,IDN,MA,PHL,TH;GGN50,KUN51,6#..GEN,IDN,IND,PHL,TH,VN200808

41115RING, DIFFERENTIAL OIL STORAGE

main41115-0K010iGGN50..GCC200808-201107

DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)

main41115-35010iKUN61..5F;GGN50,60,KUN51..GCC,SA200507-200810

main90080-20103iGGN50,60,KUN51..ANCOM,LA;LAN50,TGN51,61..5F..(LA,SA)200509-200812

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-09010iGGN50..GCC200808-201005

*FGR=43:12=3.583,DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)

sub41201-09F30

main41201-09340iKUN50,60..SUVW;KUN51..(SUVW,THSUV)..4FC..(GEN,PHL,TH)200501-200809

*FGR=43:11=3.909

sub41201-09341

main41201-09450iTGN51..4FC;TGN61..SUVW..4FC;TGN61..IDSUV..4FC..(GCC,IDN)200501-200809

*FGR=41:9=4.556

sub41201-09F20

main41201-09620iGGN50,60,KUN51..(5F,5FC)..(ANCOM,LA)200810-201204

*FGR=43:12=3.583

sub41201-80765

main41201-09630iTGN51,61..5F..(LA,SA)200810-201110

*FGR=41:10=4.100

main41201-09650iKUN51..4FC..LA200810-201110

*FGR=43:11=3.909

sub41201-80764

main41201-09A50iGGN50,60,KUN51..(5F,5FC)..(ANCOM,LA)200711-200812

*FGR=43:12=3.583

main41201-09A70iKUN51..4FC..LA200711-200810

*FGR=43:11=3.909

main41201-09A90iTGN51,61..LA,SA200711-200810

*FGR=41:10=4.100

main41201-09B20iKUN50201005-201107

*FGR=43:11=3.909

sub41201-09B21

main41201-09B40iTGN51,61..4FC..(GCC,IDN,MA,PHL,TH)201005-201109

*FGR=41:9=4.555

sub41201-09D70

main41201-09B50supersedes 41201-80725iGGN50,60,KUN51..(5F,5FC)..(GEN,IND,TH)201005-201201

*FGR=43:12=3.583

sub41201-09D80

main41201-69456iTGN51..VN200902-200912

*FGR=41:9=4.555

sub41201-69457

main41201-79406iGGN50,60,KUN51,61..(5F,5FC)..SA200905-201001

*FGR=43:12=3.583

main41201-79407iKUN61..LA200905-201001

*FGR=43:12=3.583

main41201-79418iTGN61..4FC..LA200905-201001

*FGR=41:9=4.555

sub41201-79455

main41201-80178iKUN61..4FC..SA200810-200903

*FGR=43:11=3.909

sub41201-80736

main41201-80182iTGN61..4FC..LA200810-200903

*FGR=41:9=4.556

sub41201-80732

main41201-80208iKUN61..LA200810-200905

*FGR=43:12=3.583

main41201-80224iKUN51,61..5F..SA;GGN50,60..5FC..SA200808-200903

*FGR=43:12=3.583

main41201-80570iKUN61..4FC..SA200905-201001

*FGR=43:11=3.909

sub41201-80737

main41201-80725iGGN50,60,KUN51,61..(5F,5FC)..SA201001-201108

*FGR=43:12=3.583

sub41201-80798

main41201-80726iKUN61..LA201001-201110

*FGR=43:12=3.583

sub41201-80797

main41201-80727iKUN51,61..4FC..SA201001-201108

*FGR=43:11=3.909

main41201-80731supersedes 41201-09A30iTGN51..VN201003-201202

*FGR=41:9=4.555

sub41201-79445

main41201-80733iTGN61..4FC..LA201001-201009

*FGR=41:9=4.555

sub41201-79455

main41201-79415iTGN51..SA200905-201001

*FGR=41:10=4.100,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)

sub41201-79425

main41201-79416iTGN61..5F..LA200905-201001

*FGR=41:10=4.100,BRAZIL SPEC

sub41201-79435

main41201-79417supersedes 41201-09A30iLAN50200905-201001

*FGR=41:9=4.555,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)

sub41201-79445

main41201-80179iTGN61..5F..LA200810-200903

*FGR=41:10=4.100,BRAZIL SPEC

sub41201-80724

main41201-80180iTGN51..SA200808-200903

*FGR=41:10=4.100,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)

sub41201-80739

main41201-80729supersedes 41201-09B10iTGN51..SA201001-201108

*FGR=41:10=4.100,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)

sub41201-79425

main41201-80730iTGN61..5F..LA201001-201009

*FGR=41:10=4.100,BRAZIL SPEC

sub41201-79435

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90080-36216iGGN50,60,KUN51..ANCOM,LA;LAN50,TGN51,61..5F..(LA,SA)200810-201204

main90366-35087iKUN51..SA;GGN50..GCC;KUN61..LA,SA;TGN61..4FC..LA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN)200808-201202

main90366-T0016iTGN61..SUVW..SR;TGN51..GCC,IDN,MA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN5#,60..(SUVW,THSUV)..(GEN,IDN,MA,PHL,TH)200501-200809

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90080-36214iGGN50,60,KUN51..ANCOM,LA;LAN50,TGN51,61..5F..(LA,SA)200509-200812

main90366-30067iKUN51..SA;GGN50..GCC;KUN61..LA,SA;TGN61..4FC..LA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN)200808-201202

main90366-T0013iGGN50..GCC200808-201107

DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90080-31109iLAN50,TGN51..SA;GGN50,60,KUN51,TGN61..ANCOM,LA200509-200711

main90080-31110iGGN50,60,KUN51..ANCOM,LA;LAN50,TGN51,61..5F..(LA,SA)200810-201204

main90311-41009iKUN61..5F;GGN50,60,KUN51..GCC,SA200507-200810

main90311-41014iTGN61..4FC..LA;GGN50,60,KUN51,61..SA200903-201204

main90311-T0013iGGN50..GCC200808-201005

DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)

main90311-T0034iGGN50..GCC201005-201107

DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)

41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)

main90564-35109iGGN50..GCC200808-201107

OD=52,T=1.70,DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)

main90564-35110iGGN50..GCC200808-201107

OD=52,T=1.73,DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)

main90564-35111iGGN50..GCC200808-201107

OD=52,T=1.76

main90564-35112iTGN61..SUVW..SR;TGN51..GCC,IDN,MA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN5#,60..(SUVW,THSUV)..(GEN,IDN,MA,PHL,TH)200501-200809

OD=52,T=1.79

main90564-35113iGGN50..GCC200808-201107

OD=52,T=1.82

main90564-35114iTGN61..SUVW..SR;TGN51..GCC,IDN,MA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN5#,60..(SUVW,THSUV)..(GEN,IDN,MA,PHL,TH)200501-200809

OD=52,T=1.85

main90564-35115iGGN50..GCC200808-201107

OD=52,T=1.88,DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)

main90564-35116iGGN50..GCC200808-201107

OD=52,T=1.91,DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)

main90564-35117iTGN61..SUVW..SR;TGN51..GCC,IDN,MA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN5#,60..(SUVW,THSUV)..(GEN,IDN,MA,PHL,TH)200501-200809

OD=52,T=1.94

main90564-35118iGGN50..GCC200808-201107

OD=52,T=1.97

main90564-35119iGGN50..GCC200808-201107

OD=52,T=2.00

main90564-35120iGGN50..GCC200808-201107

OD=52,T=2.03

main90564-35121iTGN61..SUVW..SR;TGN51..GCC,IDN,MA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN5#,60..(SUVW,THSUV)..(GEN,IDN,MA,PHL,TH)200501-200809

OD=52,T=2.06

main90564-35123iTGN61..SUVW..SR;TGN51..GCC,IDN,MA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN5#,60..(SUVW,THSUV)..(GEN,IDN,MA,PHL,TH)200501-200809

OD=52,T=2.09

main90564-35124iGGN50..GCC200808-201107

OD=52,T=2.12,DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)

main90564-35125iGGN50..GCC200808-201107

OD=52,T=2.15

main90564-35126iGGN50..GCC200808-201107

OD=52,T=2.18,DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)

main90564-35127iGGN50..GCC200808-201107

OD=52,T=2.21

main90564-35128iGGN50..GCC200808-201107

OD=52,T=2.24,DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)

main90564-35129iGGN50..GCC200808-201107

OD=52,T=2.27

main90564-35130iTGN61..SUVW..SR;TGN51..GCC,IDN,MA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN5#,60..(SUVW,THSUV)..(GEN,IDN,MA,PHL,TH)200501-200809

OD=52,T=2.30

main90564-35131iGGN50..GCC200808-201107

OD=52,T=2.33,DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-0K010iGGN50..GCC200808-201005

DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK),(L)

main41204-0K050iGGN50,60,KUN51..ANCOM,LA;LAN50,TGN51,61..5F..(LA,SA)200810-201204

main41204-0K060iKUN50201005-201107

DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK),(L)

main41204-35100iLAN50,TGN51..SA200808-200903

DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)

main41204-71020iKUN50201005-201107

DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK),(J)

41204BNUT (FOR REAR DRIVE PINION)

main90080-17204iGGN50,60,KUN51..ANCOM,LA;LAN50,TGN51,61..5F..(LA,SA)200509-200812

OD=40.2

main90177-22003iKUN50..4FC200808-201107

OD=39.5

main90177-T0004iTGN51,61..5F..GCC200507-200808

OD=39.5

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-0K030iGGN50,60,KUN51..ANCOM,LA;LAN50,TGN51,61..5F..(LA,SA)200509-200812

main41214-26011iGGN60,KUN50..(4FC,5FC)..(GEN,MA)200808-201107

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-0K010×5iTGN61..SUVW..SR;TGN51..GCC,IDN,MA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN5#,60..(SUVW,THSUV)..(GEN,IDN,MA,PHL,TH)200501-200809

main41222-35020×5iKUN61..LA200509-200810

main41222-60010×5iGGN50,60,KUN51,61..GCC,SA200507-200810

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90080-10292×10iGGN50,60,KUN51..ANCOM,LA;LAN50,TGN51,61..5F..(LA,SA)200810

main90101-11353×10iGGN60,KUN50..(4FC,5FC)..(GEN,MA)200808-201107

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-0K010iGGN50,60,KUN51..ANCOM,LA;LAN50,TGN51,61..5F..(LA,SA)200810

main41231-24010iGGN60,KUN50..(4FC,5FC)..(GEN,MA)200808-201107

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-0K040iGGN50,60,KUN51..ANCOM,LA;LAN50,TGN51,61..5F..(LA,SA)200509-200812

main41252-35041iKUN51..5F..TH200509-200810

41301CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-0K010iTGN61..SUVW..SR;TGN51..GCC,IDN,MA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN5#,60..(SUVW,THSUV)..(GEN,IDN,MA,PHL,TH)200501-200809

main41301-0K011iGGN50..GCC201012-201107

DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)

main41301-0K090iGGN50,60,KUN51..ANCOM,LA;LAN50,TGN51,61..5F..(LA,SA)200509-200812

main41301-60060iGGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN)200808

sub41301-60061

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90080-36215×2iGGN50,60,KUN51..ANCOM,LA;LAN50,TGN51,61..5F..(LA,SA)200810-201204

main90366-50007iGGN50,60,KUN51,61..GCC,SA200507-200810

RH

main90366-75001iGGN50,60,KUN51,61..GCC,SA200507-200810

LH

main90366-T0010×2iTGN61..SUVW..SR;TGN51..GCC,IDN,MA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN5#,60..(SUVW,THSUV)..(GEN,IDN,MA,PHL,TH)200501-200809

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-0K010×2iGGN50..GCC200808-201107

DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)

main41315-35020iGGN50,60,KUN51,61..GCC,SA200507-200810

RH

main41315-60010iGGN50,60,KUN51,61..GCC,SA200507-200810

LH

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-0K010×2iTGN51,61..GCC,IDN,MA,PHL,TH;GGN50,KUN51,6#..GEN,IDN,IND,PHL,TH,VN200808

main41316-35010×2iKUN61..5F;GGN50,60,KUN51..GCC,SA200507-200810

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-0K010iTGN61..SUVW..SR;TGN51..GCC,IDN,MA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN5#,60..(SUVW,THSUV)..(GEN,IDN,MA,PHL,TH)200501-200809

sub41342-0K040

main41342-0K050iKUN50201012-201107

DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)

41342BPIN, STRAIGHT (FOR REAR DIFFERENTIAL PINION SHAFT)

main90250-T0006iTGN61..SUVW..SR;TGN51..GCC,IDN,MA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN5#,60..(SUVW,THSUV)..(GEN,IDN,MA,PHL,TH)200501-200809

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-0K010×2iTGN61..SUVW..SR;TGN51..GCC,IDN,MA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN5#,60..(SUVW,THSUV)..(GEN,IDN,MA,PHL,TH)200501-200809

main41351-30060×4iKUN61..5F;GGN50,60,KUN51..GCC,SA200507-200810

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-0K020×2iGGN50..GCC200808-201107

T=1.55,DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)

main41361-0K030×2iGGN50..GCC200808-201107

T=1.60

main41361-0K040×2iGGN50..GCC200808-201107

T=1.65

main41361-0K050×2iGGN50..GCC200808-201107

T=1.70,DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)

main41361-0K060×2iGGN50..GCC200808-201107

T=1.75,DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)

main41361-0K070×2iTGN51,61..GCC,IDN,MA,PHL,TH;GGN50,KUN51,6#..GEN,IDN,IND,PHL,TH,VN200808

T=1.80

main41361-0K080×2iTGN51,61..GCC,IDN,MA,PHL,TH;GGN50,KUN51,6#..GEN,IDN,IND,PHL,TH,VN200808

T=1.85

main41361-0K090×2iGGN50..GCC200808-201107

T=1.90,DIFFERENTIAL-WITHOUT(DEFFERENTIAL LOCK)

main41361-35161×6iKUN61..LA;TGN61..4FC..LA200810

T=1.8

main41361-35291×2iKUN61..LA200509-200810

T=1.70,MARK N

main41361-35310iGGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN)200808

T=0.9,RH,ID=46

main41361-35320iGGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN)200808

T=1.0,RH,ID=46

main41361-35330iGGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN)200808

T=1.1,RH,ID=46

main41361-35340iGGN50,60,KUN51,61..GCC,SA200507-200810

T=1.2,RH,ID=46

main41361-35350iGGN50,60,KUN51,61..GCC,SA200507-200810

T=1.3,RH,ID=46

main41361-60290×2iGGN50,60,KUN51,61..GCC,SA200507-200810

T=0.90,RH & LH,ID=54

main41361-60300×2iGGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN)200808

T=1.00,RH & LH,ID=54

main41361-60310×2iGGN50,60,KUN51,61..GCC,SA200507-200810

T=1.10,RH & LH,ID=54

main41361-60320×2iGGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN)200808

T=1.20,RH & LH,ID=54

main41361-60330×2iGGN50,60,KUN51,61..GCC,SA200507-200810

T=1.30,RH & LH,ID=54

90119T0071

main90119-T0071

26 parts on this diagram · 7 diagrams in section
