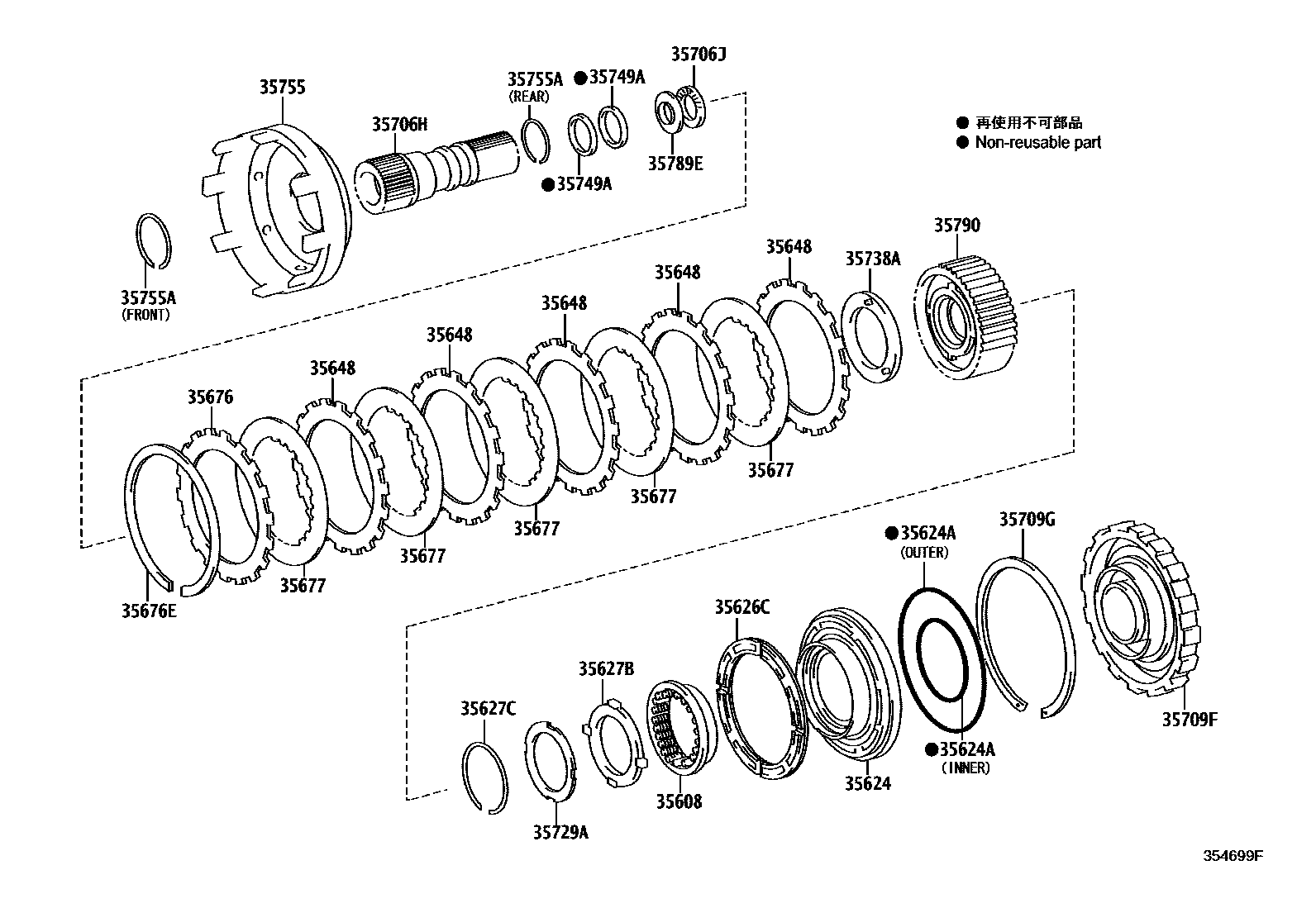

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

0001 1A340E,A340F,A343E,A343F 0002 1A750E,A750F

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-30010iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

35624PISTON, 2ND BRAKE

main35624-30010iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

main35624-60010iGGN50,60..5FC200808

35624ARING, O (FOR 2ND BRAKE PISTON)

main90301-85001iKUN5#,6#,TGN51,61..4FC200808

INNER

main90301-99038iKUN5#,6#,TGN51,61..4FC200808

OUTER

main90301-99095iGGN50,60..5FC200808

INNER

main90301-99115iGGN50..5FC;GGN60..ANCOM200507-200903

OUTER

35626CSLEEVE, 2ND BRAKE PISTON

main35626-30030iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

35627BSEAT, 2ND BRAKE PISTON RETURN SPRING

main35627-30010iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

35627CRING, SHAFT SNAP(FOR 2ND BRAKE PISTON RETURN SPRING SEAT)

main90520-54001iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

35648PLATE, CLUTCH (FOR 2ND BRAKE)

main35647-30020×4iKUN5#,6#,TGN51,61..4FC200808

T=2.5

main35647-30030iKUN5#,6#,TGN51,61..4FC200808

T=1.8

35676FLANGE, BRAKE (FOR 2ND BRAKE)

main35676-30020iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

T=3.0

35676ERING, HOLE SNAP (FOR 2ND BRAKE)

main90521-99032iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35667-30080×5iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-30061iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-27009iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

35709FDRUM SUB-ASSY, 2ND BRAKE

main35709-30061iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

35709GRING, HOLE SNAP (FOR 2ND BRAKE DRUM)

main90521-99044iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

35729AWASHER, PLANETARY CARRIER THRUST, NO.4

main35729-30010iKUN5#,6#,TGN51,61..4FC200808

35738AWASHER, 1 WAY CLUTCH THRUST, NO.1

main35738-30040iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

35749ARING, SUN GEAR SHAFT OIL SEAL

main35749-30010×2iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

35755DRUM, SUN GEAR INPUT

main35755-50010iKUN5#,6#,TGN51,61..4FC200808

35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)

main90520-46002iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

ID=46.0,T=1.2,REAR

main90520-49001iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

ID=49.0,WD=2.3,FRONT

35789ERACE, THRUST BEARING (FOR PLANETARY SUN GEAR)

main35789-30240iKUN5#,6#,TGN51,61..4FC200808

35790CLUTCH ASSY, 1 WAY

main35790-30050iKUN50,60,TGN51,61..4FC200808

main35790-30060iKUN51,61..4FC200808

main35790-50020iGGN50..5FC;GGN60..ANCOM200507-200903

21 parts on this diagram · 2 diagrams in section
