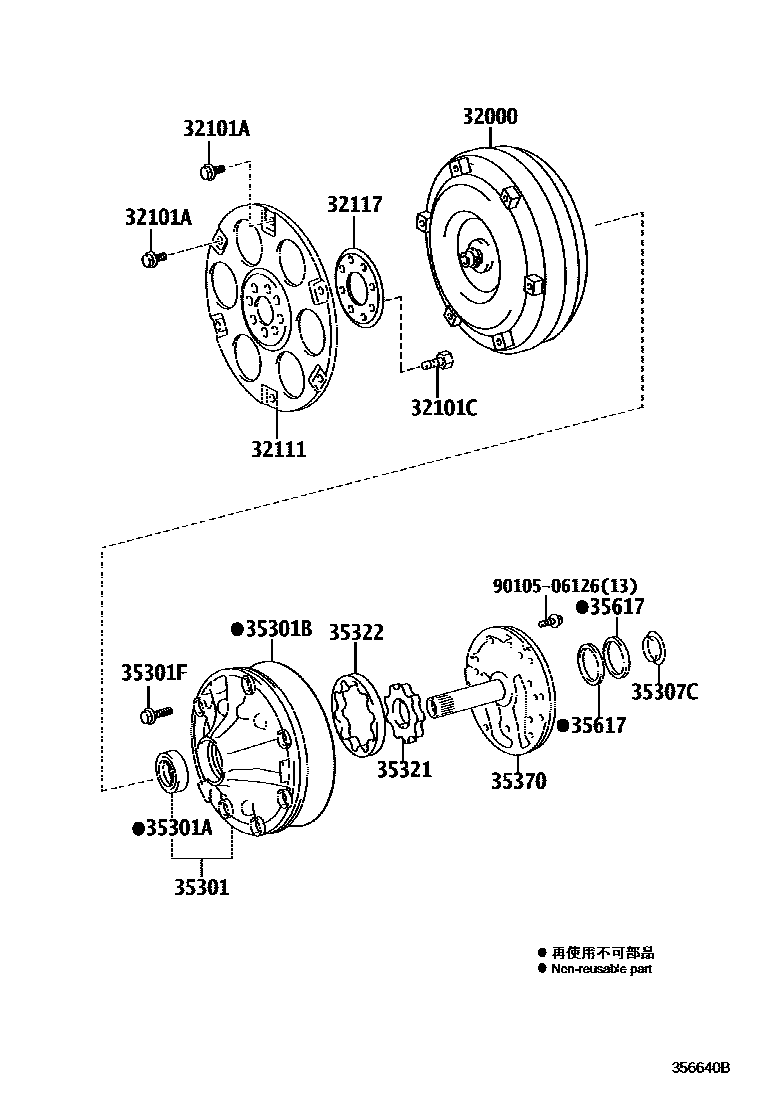

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1A340E,A340F 0002 1A343E,A343F 0003 1A750E,A750F

32000CONVERTER ASSY, TORQUE

main32000-35240iKUN51..(SUVW,THSUV)..4FC200501-200810

main32000-60240iTGN51..4FC;TGN61..SUVW..4FC;TGN61..IDSUV..4FC..(GCC,IDN)200501-200809

main32000-71010iKUN50,60..4FC200808-201109

main32000-71020iGGN50..5FC;GGN60..ANCOM200507-200903

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-26010iTGN51..4FC;TGN61..SUVW..4FC;TGN61..IDSUV..4FC..(GCC,IDN)200501-200809

main32101-60060iGGN50..5FC;GGN60..ANCOM200507-200903

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90105-10413×5iKUN51..(SUVW,THSUV)..4FC200501-200810

*10-1.5PX11-8,SILVER WHITE

main90105-10414iKUN51..4FC200501-200502

*10-1.5PX11-7.9,WHITE

main90105-10546iKUN51..(SUVW,THSUV)..4FC200503-200810

*10-1.5PX11-8,BLACK

main90119-09009×5iTGN51..MA200508-200809

*9-1.25PX12.8-8.8,SILVER WHITE

main90119-09010iTGN51..MA200508-200809

*9-1.25PX12.8-9,BLACK

main90119-09026iKUN60..4FC200504-200808

*9-1.25PX12.8-9,BLACK

main90119-09027×5iGGN50,60,KUN50,60,TGN51,61..4FC,5FC200808

*9-1.25PX12.8-8.8,YELLOW OR SILVER

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10276×10iTGN51..4FC;TGN61..SUVW..4FC;TGN61..IDSUV..4FC..(GCC,IDN)200501-200809

*10-1.25PX30-17.5

main90105-10543×8iGGN50..5FC;GGN60..ANCOM200507-200903

*10-1.25PX22-15

main90105-T0113×8iKUN51,60..(SUVW,THSUV)..4FC200501-200810

*13-1.5PX43.5-23.5

32111PLATE, PUMP IMPELLER DRIVE

main32111-35030iKUN51..4FC..(GEN,PHL,TH)200501-200808

main32111-60050iKUN60..4FC200504-200808

main32111-60080iKUN51,61..4FC201010

sub32111-71010

32117SPACER, DRIVE PLATE, REAR

main32117-26010iTGN51..4FC;TGN61..SUVW..4FC;TGN61..IDSUV..4FC..(GCC,IDN)200501-200809

main32117-60050iKUN51,60..(SUVW,THSUV)..4FC200501-200810

main32117-60060iGGN50..5FC;GGN60..ANCOM200507-200903

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-50020iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

main35301-60030iGGN50..5FC;GGN60..ANCOM200507-200903

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38083iGGN50..5FC;GGN60..ANCOM200507-200903

main90311-38087iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99033iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

main90301-99139iGGN50,60..5FC200808

OUTER

main90301-99148iGGN50..5FC;GGN60..ANCOM200507-200903

INNER

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08091×7iKUN5#,6#,TGN51,61..4FC200808

*8-1.25PX35-35

main90105-08451×10iGGN50,60..5FC200808

*8-1.25PX40-30

main91511-K0840×10iGGN50,60..5FC200507-200610

*8-1.25PX40-30

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-30340iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

T=3.7

35321GEAR, FRONT OIL PUMP DRIVE

main35321-30030iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

T=11.690-11.699

main35321-30040iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

T=11.700-11.709

main35321-30050iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

T=11.710-11.720

main35321-30060iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

T=11.721-11.730

main35321-30070iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

T=11.731-11.740

main35321-50010iGGN50,60..5FC200808

T=10.736-10.742

main35321-50020iGGN50,60..5FC200808

T=10.743-10.749

main35321-50030iGGN50,60..5FC200808

T=10.750-10.756

main35321-50040iGGN50..5FC;GGN60..ANCOM200507-200903

T=10.757-10.763

main35321-50050iGGN50..5FC;GGN60..ANCOM200507-200903

T=10.764-10.770

main35321-50060iGGN50..5FC;GGN60..ANCOM200507-200903

T=10.771-10.777

main35321-50070iGGN50,60..5FC200808

T=10.778-10.784

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-30020iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

T=11.690-11.699

main35322-30030iKUN5#,6#,TGN51,61..4FC200808

T=11.700-11.709

main35322-30040iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

T=11.710-11.720

main35322-30050iKUN5#,6#,TGN51,61..4FC200808

T=11.721-11.730

main35322-30060iTGN51..4FC;TGN61..IDSUV..4FC..(GCC,IDN);KUN51,60,TGN61..(SUVW,THSUV)..4FC200501-200810

T=11.731-11.740

main35322-50010iGGN50..5FC;GGN60..ANCOM200507-200903

T=10.736-10.742

main35322-50020iGGN50..5FC;GGN60..ANCOM200507-200903

T=10.743-10.749

main35322-50030iGGN50..5FC;GGN60..ANCOM200507-200903

T=10.750-10.756

main35322-50040iGGN50,60..5FC200808

T=10.757-10.763

main35322-50050iGGN50,60..5FC200808

T=10.764-10.770

main35322-50060iGGN50..5FC;GGN60..ANCOM200507-200903

T=10.771-10.777

main35322-50070iGGN50..5FC;GGN60..ANCOM200507-200903

T=10.778-10.784

35370SHAFT ASSY, STATOR

main35370-30060iKUN5#,6#,TGN51,61..4FC200808

main35370-50030iGGN50..5FC;GGN60..ANCOM200507-200903

35617RING, CLUTCH DRUM OIL SEAL

main35617-30020×2iKUN5#,6#,TGN51,61..4FC200808

main35617-50030×3iGGN50,60..5FC200808

main35617-60020×3iGGN50,60..5FC200507-200709

9010506126

main90105-06126

16 parts on this diagram · 3 diagrams in section
