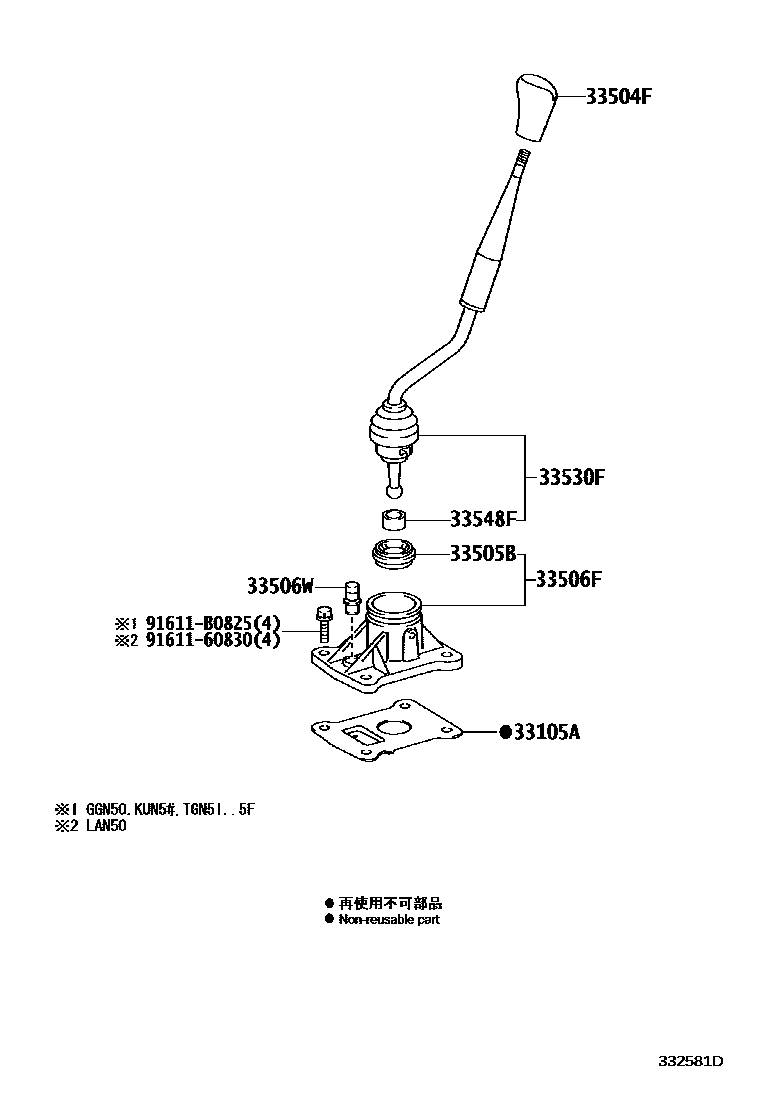

SHIFT LEVER & RETAINER

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1

33105ADEFLECTOR SUB-ASSY, EXTENSION HOUSING OIL(MTM)

main33144-35030iGGN50,KUN51,TGN51..(SUVW,THSUV)..5F..(GCC,GEN,TH)200808-201107

TYPE B:REFER 33-01

main33144-60050iLAN50200810-201108

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-02070-E0iGGN50,60,KUN51,61..5F..SA200602-200610

SANDAL WOOD,TRIM0#

main33504-0D050-E0iGGN50,KUN5#,61,TGN51,61..5F..(ANCOM,GCC,GEN,LA,MA,TH)200501-200903

SANDAL WOOD,TRIM0#

main33504-0D050-E1iGGN50..5F..(ANCOM,GEN);KUN51,6#,TGN51,61..5F..(GCC,GEN,LA,TH)200808-201112

ASH BROWN,TRIM4#

main33504-0D170-E0iGGN50..5FC..(GCC,SA);GGN60,KUN51,6#,TGN51,61..(IDSUV,SUVW)..(4FC,5FC)..(GEN,IDN,MA,PHL,SA,TH,VN)201008-201202

ASH BROWN,TRIM4#

main33504-0K010-B0iKUN50200809-201109

DK.GRAY,TRIM1#

main33504-0K010-E0iGGN50,KUN51,60,TGN51,61..(4FC,5FC)..(IDN,PHL,SA,TH)200501-200608

SANDAL WOOD,TRIM0#

main33504-0K010-E1iKUN51,TGN51,61..LHD..4FC..(GCC,GEN,LA);GGN50,60,KUN50..(4FC,5FC)..(ANCOM,GEN,LA,MA)200808-201204

ASH BROWN,TRIM4#

main33504-22140-E2supersedes 33504-02070-E0iKUN51..5F..(GEN,LA)200610-200810

SRS AIR BAG-WITH(DRIVER & PASSENGER),SANDAL WOOD,TRIM0#

main33504-22140-E4supersedes 33504-02070-E1iKUN51,61..RHD..5F..(IND,SA);GGN50,KUN60..5F..(GCC,IDN,PHL,VN)200808-201202

ASH BROWN,TRIM4#

main33504-35060-E0iTGN61..IDSUV..IDN;GGN50,TGN51..(4FC,5FC)..(IDN,SA,TH);KUN51,60,TGN61..SUVW..4FC..(IDN,PHL,TH)200608-200810

SANDAL WOOD,TRIM0#

main33504-35060-E1supersedes 33504-35060-E1iGGN50..LA;KUN51..4FC..(GEN,LA)200808-201007

SEAT COVER MATERIAL-LEATHER,ASH BROWN,TRIM4#

33505BSEAT SUB-ASSY, SHIFT LEVER

main33505-0K010iKUN6#,TGN61..5F201007-201204

TYPE D:REFER 33-01

main33505-35020iLAN50200810-201108

main33505-35030iKUN51,60..(SUVW,THSUV)..5F..(GEN,IDN,PHL)200902-201204

TYPE C:REFER 33-01

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-0K010iGGN50..IDSUV..5F;GGN50,KUN5#..5F..(ANCOM,LA,MA,SA,TH)200501-200808

TYPE C:REFER 33-01

sub33506-0K011

main33506-0K020iGGN50,KUN51,TGN51..(SUVW,THSUV)..5F..(GCC,GEN)200507-200808

TYPE B:REFER 33-01

sub33506-0K021

main33506-60060iKUN51..5F..TH200808-201107

TYPE A:REFER 33-01

sub33506-60061

main33506-60110iLAN50200810-201108

main33570-0K010iKUN61200509-200808

TYPE C:REFER 33-01

sub33019-71010

sub33019-71020

sub33019-71060

sub36149-60070

sub87616-0K010

sub96132-51000

main33570-0K020iTGN61..SUVW..5F..GCC200708-200808

sub33019-71010

sub33019-71020

sub33019-71060

sub36149-60070

sub87616-0K010

sub96132-51000

main33570-0K030iKUN6#,TGN61..5F201007-201204

TYPE D:REFER 33-01

main33570-0K040iTGN61..SUVW..5F..GCC200906-201204

TYPE C:REFER 33-01

main33570-71010iKUN60..5F200504-200505

TYPE A:REFER 33-01

main33570-71030iKUN6#,TGN61..5F200808-201007

TYPE D:REFER 33-01

33506WPLUG, BREATHER (FOR SHIFT LEVER RETAINER)

main90930-03075iGGN50..IDSUV..5F;GGN50,KUN5#..5F..(ANCOM,LA,MA,SA,TH)200501-200808

TYPE C:REFER 33-01

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-0K072iLAN50..RHD200605-200612

main33530-0K073iLAN50..RHD200701-200807

sub33530-0K074

main33530-0K082iLAN50..LHD200605-200612

main33530-0K083iLAN50..LHD200701-200807

sub33530-0K084

main33530-0K090iKUN60..5F..PHL200504-200607

sub33530-0K091

main33530-0K092iKUN61..LA200610-200701

sub33530-0K094

main33530-0K100iKUN60..IDN200504-200511

main33530-0K101iKUN6#..RHD200512-200604

main33530-0K102iKUN60..IDN200605-200807

sub33530-0K103

sub33530-0K104

main33530-0K110iTGN61..LA200509-200511

main33530-0K111iTGN61..LA200512-200604

main33530-0K112iTGN61..5F..GCC200605-200807

sub33530-0K113

sub33530-0K114

main33530-0K130iKUN51..5F..LA200509-200511

main33530-0K131iKUN51..5F..LA200512-200604

main33530-0K132iKUN51..LHD..5F200605-200807

sub33530-0K133

sub33530-0K134

main33530-0K140iKUN5#..RHD..5F200501-200511

main33530-0K141iKUN5#..RHD..5F200512-200604

main33530-0K142iKUN5#..RHD..5F200605-200807

sub33530-0K144

main33530-0K150iTGN51..5F200507-200511

main33530-0K151iTGN51..5F200512-200604

main33530-0K152iTGN51..5F200605-200807

sub33530-0K154

main33530-0K171iGGN60..SA200602-200604

main33530-0K172iGGN60..SA200605-200711

sub33530-0K174

main33530-0K180iGGN50..5F200507-200511

main33530-0K181iGGN50..LHD..5F200512-200604

main33530-0K182iGGN50..LHD..5F200605-200807

sub33530-0K184

main33530-0K191iGGN50..5F..SA200602-200604

main33530-0K192iGGN50..5F..SA200605-200807

sub33530-0K194

main33530-0K210iKUN61..LA200701-200808

sub33530-0K212

main33530-0K220iTGN61..LA200701-200808

sub33530-0K222

main33530-0K250iKUN61..SA200711-200808

sub33530-0K252

main33530-0K270iGGN60..SA200711-200808

sub33530-0K272

main33530-0K390iLAN50..RHD200810-201108

sub33530-0K391

main33530-0K400iLAN50..LHD200808-200810

sub33530-0K401

main33530-0K411iKUN61..SA200808-200810

sub33530-0K412

main33530-0K421iKUN60..LHD..5F200808

sub33530-0K422

main33530-0K441iTGN61..LA200808-200810

sub33530-0K442

main33530-0K451iKUN5#..RHD..5F..(MA,SA)200808-200810

sub33530-0K452

main33530-0K461iKUN51..LHD..5F200808

sub33530-0K462

main33530-0K481iTGN51..5F200808-201108

sub33530-0K482

main33530-0K491iGGN60..SA200808-200810

sub33530-0K492

main33530-0K501iGGN50..5F..SA200808-200810

sub33530-0K502

main33530-0K511iGGN50..LHD..5F200808

sub33530-0K512

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-04010iGGN50..LHD..5F;KUN51,6#,LAN50,TGN51,61..5F..SR200808

9161160830

main91611-60830

91611B0825

main91611-B0825

9 parts on this diagram · 6 diagrams in section
