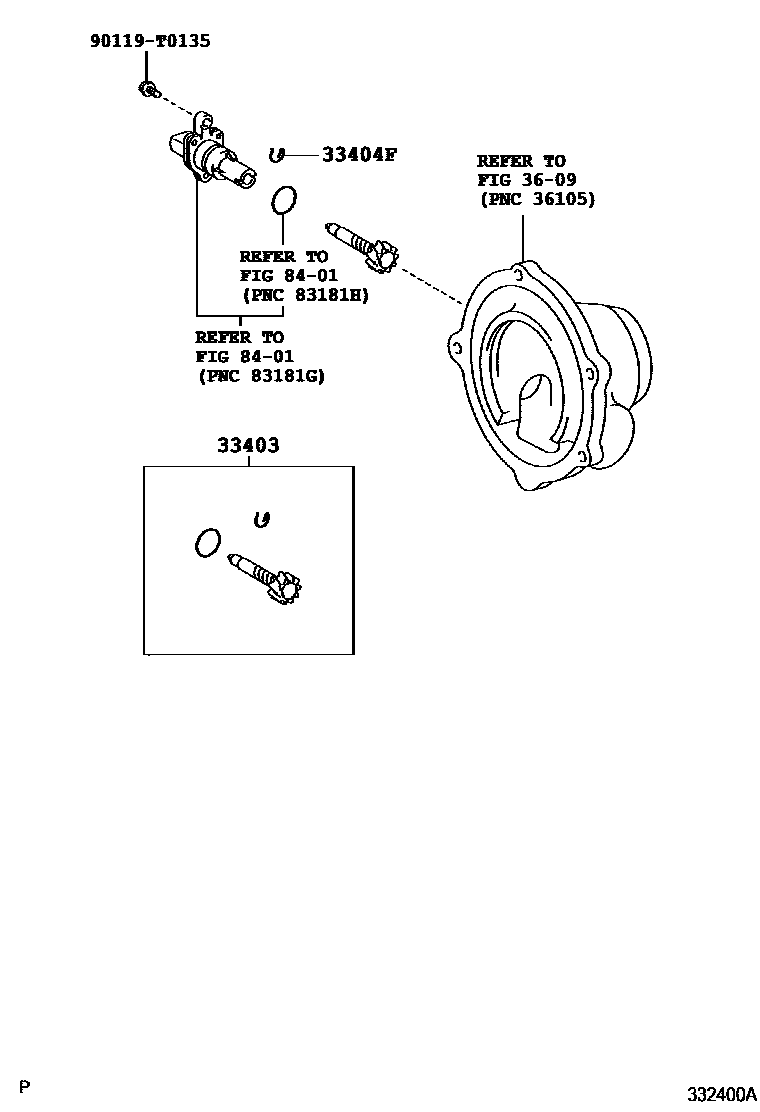

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1R150,R150F,R151,R151F 0002 1R150,R151

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-39355iLAN50200605-201108

N=31,MARK 31:10

main33403-39365iTGN51,61..5F200507-200810

N=30,MARK 30:11

main33403-39515iKUN50,60..SUVW..5F200504-200809

N=29,MARK 29:11

main33403-39575iGGN60,KUN61..5F200509-200801

N=27,MARK 27:11

main33403-79015iGGN50,KUN51..5F200501-201107

N=26,MARK 26:11

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iGGN50..LHD..5F;KUN51,6#,LAN50,TGN51,61..5F200501-200903

3609TRANSFER CASE & EXTENSION HOUSING

→ Go to FIG 36-09

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90119T0135

main90119-T0135

5 parts on this diagram · 2 diagrams in section
