CLUTCH & RELEASE FORK

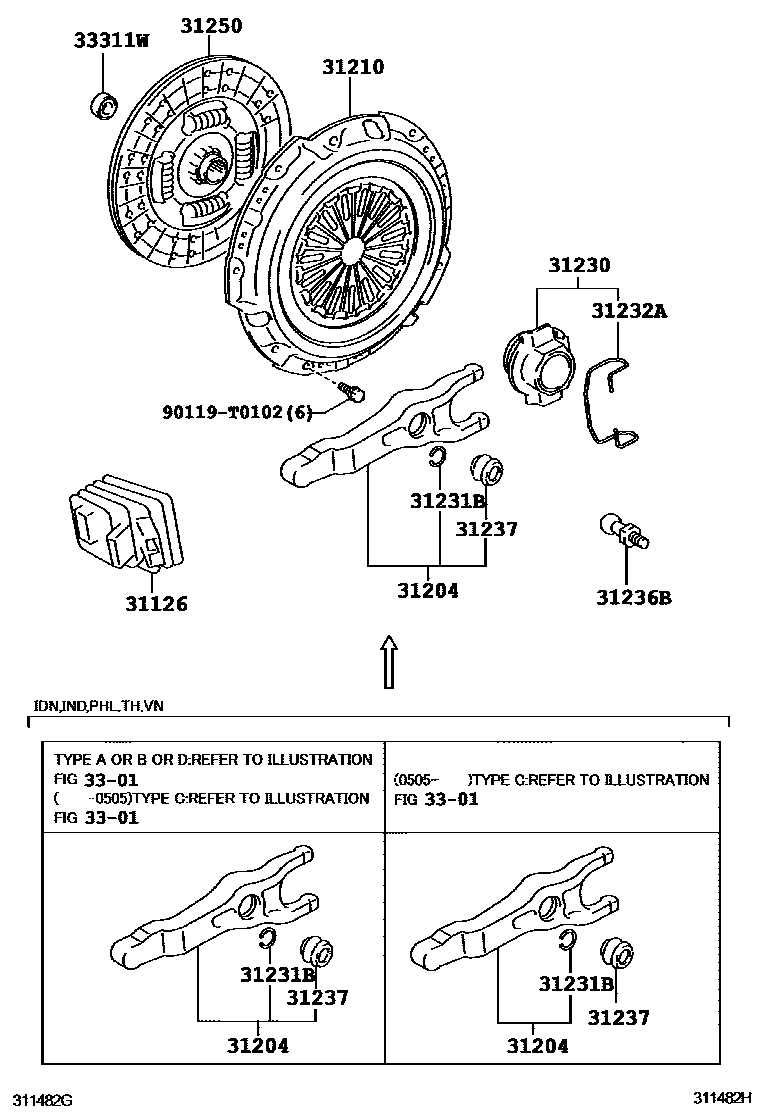

Parts diagram
31126BOOT, CLUTCH RELEASE FORK
main31126-0K050i200808-201202
TYPE D:REFER 33-01
main31126-0K070i200808-201110
TYPE D:REFER 33-01
main31126-20070i200605-200810
main31126-36080i200906-201110
TYPE C:REFER 33-01
main31126-60081i200808-201107
TYPE A:REFER 33-01
main31126-60110i200908-201108
31204FORK SUB-ASSY, CLUTCH RELEASE
main31204-0K020i200906-201110
TYPE C:REFER 33-01
main31204-0K061i200912-201107
TYPE B:REFER 33-01
main31204-0K071i200808-201202
TYPE D:REFER 33-01
sub31204-0K180
main31204-0K080i200501-200505
TYPE C:REFER 33-01
main31204-0K081i200808-201202
TYPE C:REFER 33-01
sub31204-0K160
main31204-0K100i200707-200808
TYPE C:REFER 33-01
main31204-35031i200808-201110
TYPE D:REFER 33-01
main31204-35050i200810-201108
main31204-35070i200808-201107
TYPE A:REFER 33-01
sub31204-35071
31210COVER ASSY, CLUTCH
main31210-0K040i200808-201202
main31210-0K070i200501-200808
main31210-0K080i200810-200908
main31210-0K090i200509-200810
main31210-0K130i200507-200703
main31210-0K131i200704-200808
main31210-0K140i200605-200810
sub31210-0K141
main31210-0K150i200509-200810
sub31210-0K151
main31210-0K160i200507-200903
main31210-0K170i200602-200810
main31210-0K190i200808-201201
main31210-0K200i200808-201204
main31210-0K210i200810-201108
main31210-35241i200605-200810
31230BEARING ASSY, CLUTCH RELEASE
main31230-35061i200605-200810
main31230-71010i200808-200809
TYPE A:REFER 33-01
main31230-71011i200809-201107
TYPE A:REFER 33-01
main31230-71020i200808-201110
TYPE D:REFER 33-01
main31230-71040i200507-200808
TYPE B:REFER 33-01
31231BRING, SNAP(FOR CLUTCH RELEASE HUB)
main90520-T0031i200808-201204
TYPE D:REFER 33-01
main90521-22003i200808-201107
TYPE A:REFER 33-01
31232ACLIP, RELEASE BEARING HUB
main31232-35020i200605-200810
TYPE A:REFER ILLUST.
main31232-35030i200605-200810
TYPE B:REFER ILLUST.
main31232-71010i200808-200810
main31232-71020i200906-201110
TYPE C:REFER 33-01
main31232-71040i200808-201107
TYPE B:REFER 33-01
31236BSUPPORT, RELEASE FORK
main31236-26010i200605-200810
main31236-35030i200808-200911
TYPE D:REFER 33-01
main31236-60060i200808-200904
TYPE D:REFER 33-01
main31236-71010i200808-200811
TYPE D:REFER 33-01
main31236-71011i200811-201204
TYPE D:REFER 33-01
main31236-71030i200911-201110
TYPE D:REFER 33-01,TYPE C:REFER 33-01
31237BOOT, CLUTCH RELEASE FORK SUPPORT
main31237-0K010i200808-201204
TYPE D:REFER 33-01
main31237-60010i200505-200808
TYPE B:REFER 33-01
31250DISC ASSY, CLUTCH
main31250-0K010i200605-200810
main31250-0K011i200901-201108
main31250-0K060i200602-200810
sub31250-0K061
main31250-0K070i200509-200810
sub31250-0K071
main31250-0K110i200507-200708
main31250-0K120i200605-200805
main31250-0K121i200806-200810
main31250-0K130i200509-200805
main31250-0K131i200810-201110
main31250-0K150i200808-201007
sub31250-36580
main31250-0K151i201008-201107
sub31250-0K152
main31250-0K170i200507-200903
main31250-0K180i200602-200810
main31250-0K201i200501-200508
main31250-0K202i200509-200510
main31250-0K203i200511-200606
main31250-0K204i200607-200809
main31250-0K205i201008-201202
main31250-0K220i200808-201007
OD=275
main31250-0K221i201008-201201
OD=275
sub31250-0K222
main31250-0K230i200808-201007
main31250-0K231i201008-201204
3301
33311WBEARING (FOR INPUT SHAFT)
main90080-36198i200602-200610
main90080-36199i200810
main90363-12002i200808
sub90363-12024
main90363-T0006i200501-200809
main90363-T0019i200808
90119T0102
main90119-T0102

12 parts on this diagram · 6 diagrams in section
