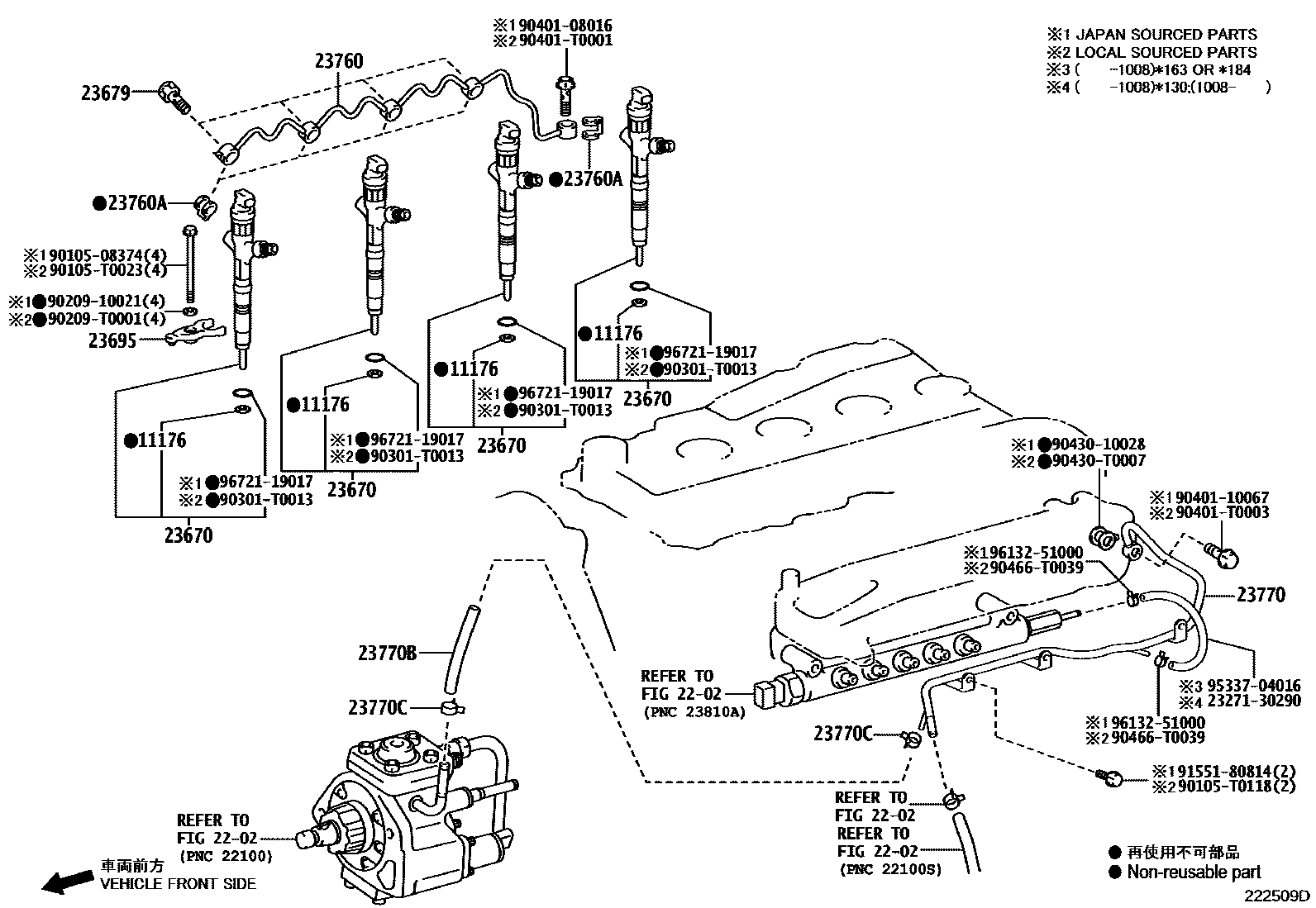

INJECTION NOZZLE

0001 1 0002 1 0004 1

11176SEAT, INJECTION NOZZLE

main11176-05010i5LE..LAN50200605-201108

(L)

main11176-0L010i1KDFTV,2KDFTV..KUN5#,6#..IDN,LA,MA,PHL,TH200501-200801

*130

sub11176-0L011

main11176-0L011i2KDFTV..KUN60..VN200801-201202

*130

main11176-30010i1KDFTV..KUN51,61..LA200507-200711

*163 OR *184

sub11176-30011

main11176-30011i1KDFTV,2KDFTV..KUN50,61..RHD..5F;1KDFTV,2KDFTV..KUN51,60..(SUVW,THSUV)..(GEN,IDN,PHL,SA,TH)200711-201202

*163 OR *184

main11176-64010i5LE..LAN50200605-201108

(J)

2202

23670INJECTOR ASSY

main23670-09060i2KDFTV..KUN60;2KDFTV..KUN50..4FC200507-200902

*163 OR *184

sub23670-09061

main23670-09060i2KDFTV..KUN50,60200504-200711

sub23670-09061

main23670-09061i2KDFTV..KUN50,60..SUVW200801-200905

*130

sub23670-39236

sub23670-39276

main23670-09061i2KDFTV..KUN50,60200711-200801

sub23670-39236

sub23670-39276

main23670-09070i1KDFTV..KUN51,61..GEN,PHL,SA,TH200801-200902

*163 OR *184

sub23670-09071

main23670-09070i1KDFTV..KUN51,61200501-200711

*130

sub23670-09071

main23670-09071i1KDFTV..KUN61..LA;1KDFTV..KUN51..SUVW..(LA,PHL,TH)200711-200904

*130

sub23670-09330

main23670-09330i1KDFTV..KUN51,61..RHD..SA200806-200810

BRAZIL SPEC

main23670-09330i1KDFTV..KUN51,61..PHL,TH200905-201010

*130

main23670-09330i1KDFTV..KUN51,61..SA201001-201010

*163 OR *184

main23670-09350i1KDFTV..KUN51,61..4FC..(PHL,TH);1KDFTV..KUN51,61..5F..(GEN,SA,TH)200908-201201

*130

main23670-09360i2KDFTV..KUN50200905-201009

MARK 23670-0L070

main23670-09360i2KDFTV..KUN50,60..IDN,MA,PHL,VN200907-201008

*163 OR *184

main23670-09380i2KDFTV..KUN60..IDN,PHL,VN201008-201202

MARK 23670-0L110,*130

main23670-09380i2KDFTV..KUN50,60..IDN,MA,PHL,VN201008-201202

*163 OR *184

main23670-39236i2KDFTV..KUN50,60200902-200907

*163 OR *184

sub23670-09360

main23670-39365i1KDFTV..KUN61..SA;1KDFTV..KUN51..5F..SA201008-201108

MARK 23670-30400

main23670-39375i1KDFTV..KUN51,61..GEN,PHL,SA,TH200902-201001

*163 OR *184

sub23670-09330

23679SCREW, INJECTOR FOLLOW

main23679-0L010i1KDFTV..KUN51,61..5F..(GEN,SA)200501-201202

*130

main23679-30020i1KDFTV..KUN51,61..RHD..SA200507-201001

*163 OR *184

sub23679-30021

main23679-30021i2KDFTV..KUN60..IDN,PHL,VN;1KDFTV,2KDFTV..KUN5#,61..GEN,MA,PHL,SA,TH201001-201202

*163 OR *184

23695CLAMP, NOZZLE HOLDER, NO.1

main23695-0L010i2KDFTV..KUN50,60..IDN,MA,PHL,VN200903-201010

*163 OR *184

sub23695-30011

main23695-0L010i1KDFTV..KUN51,61..SA200501-201202

*130

sub23695-30011

main23695-0L010i2KDFTV..KUN60..TH;1KDFTV..KUN51..IND200908-201201

sub23695-30011

main23695-30010i2KDFTV..KUN50..5F;1KDFTV..KUN51..LHD..SA;1KDFTV,2KDFTV..KUN51,60..(SUVW,THSUV)..(GEN,IDN,PHL,TH)200507-200810

*163 OR *184

sub23695-30011

main23695-30011i1KDFTV,2KDFTV..KUN5#,6#..GEN,IDN,MA,PHL,SA,TH,VN200809-201202

*163 OR *184

23760PIPE ASSY, NOZZLE LEAKAGE

main23760-05010i5LE..LAN50200605-201108

(L)

main23760-0L010i1KDFTV..KUN51,61..SA200501-201202

*130

main23760-30020i1KDFTV..KUN51,61..LA200507-201202

*163 OR *184

main23760-54030i5LE..LAN50200605-201108

(J)

23760AGASKET

main90430-T0008i1KDFTV,2KDFTV..KUN50,61..5F..DLX;1KDFTV,2KDFTV..KUN51,60..SUVW..(IDN,LA,PHL,TH)200501-201202

*130

main90904-30013i2KDFTV..KUN50..4FC;2KDFTV..KUN60..IDN,PHL,VN;1KDFTV..KUN51,61..GEN,PHL,SA,TH200507-201202

*163 OR *184

23770PIPE ASSY, NOZZLE LEAKAGE, NO.2

main23770-0L020i1KDFTV,2KDFTV..KUN50,61..5F..DLX;1KDFTV,2KDFTV..KUN51,60..SUVW..(IDN,LA,PHL,TH)200501-201008

*130

main23770-0L030i2KDFTV..KUN60..TH;1KDFTV..KUN51..IND200908-201201

main23770-0L040i1KDFTV..KUN61..LA,TH;1KDFTV..KUN51..4FC..(LA,PHL,TH);2KDFTV..KUN50,60..IDN,MA,PHL,VN;1KDFTV..KUN51,61..5F..SR..(GEN,LA,SA,TH)201008-201202

*130,(L)

main23770-30060i1KDFTV..KUN51,61..RHD..SA200507-201008

*163 OR *184

main23770-30120i1KDFTV..KUN61..LA,TH;1KDFTV..KUN51..4FC..(LA,PHL,TH);2KDFTV..KUN50,60..IDN,MA,PHL,VN;1KDFTV..KUN51,61..5F..SR..(GEN,LA,SA,TH)201008-201202

*130,(J)

main23770-30120i2KDFTV..KUN60..IDN,PHL,VN;1KDFTV,2KDFTV..KUN5#,61..GEN,MA,PHL,SA,TH201008-201202

*163 OR *184

23770BHOSE, FUEL

main23273-30180i2KDFTV..KUN60..TH;1KDFTV..KUN51..IND200908-201012

L=200

sub95337-06020

main95333-04020i5LE..LAN50200605-201108

L=200(*H,L=120),ID=4

main95333-06020i1KDFTV,2KDFTV..KUN5#,6#..IDN,LA,MA,PHL,TH200501-200805

L=200,*130

sub95337-06020

main95333-06020i1KDFTV..KUN51,61..LA200507-200605

*163 OR *184

sub95337-06020

main95333-06020i1KDFTV..KUN51,61..RHD..SA200507-200805

L=200,*163 OR *184

sub95337-06020

main95337-06020i2KDFTV..KUN50..4FC;2KDFTV..KUN60..IDN,PHL;1KDFTV..KUN51,61..LA,PHL,TH200805-201202

L=200,*130

main95337-06020i1KDFTV,2KDFTV..KUN50,61..5F..DLX;1KDFTV,2KDFTV..KUN51,60..SUVW..(IDN,LA,PHL,TH)200805-201202

L=200,*163 OR *184

main95337-06020i2KDFTV..KUN60..TH;1KDFTV..KUN51..IND201012-201201

L=200

23770CCLAMP OR CLIP(FOR FUEL HOSE SET)

main90466-T0043i2KDFTV..KUN50..4FC;2KDFTV..KUN60..IDN,PHL;1KDFTV..KUN51,61..LA,PHL,TH200501-201202

*130

sub90466-T0022

main90466-T0043i2KDFTV..KUN60..TH;1KDFTV..KUN51..IND200908-201201

sub90466-T0022

main96132-51000i5LE..LAN50200605-201108

main96135-51100i1KDFTV..KUN51,61..SA200507-201202

*163 OR *184

2327130290VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1

main23271-30290

9010508374

main90105-08374

90105T0023

main90105-T0023

90105T0118

main90105-T0118

9020910021

main90209-10021

90209T0001

main90209-T0001

90301T0013

main90301-T0013

9040108016

main90401-08016

9040110067

main90401-10067

90401T0001

main90401-T0001

90401T0003

main90401-T0003

9043010028

main90430-10028

90430T0007

main90430-T0007

90466T0039

main90466-T0039

9155180814

main91551-80814

9533704016

main95337-04016

9613251000

main96132-51000

9672119017

main96721-19017

28 parts on this diagram · 3 diagrams in section
