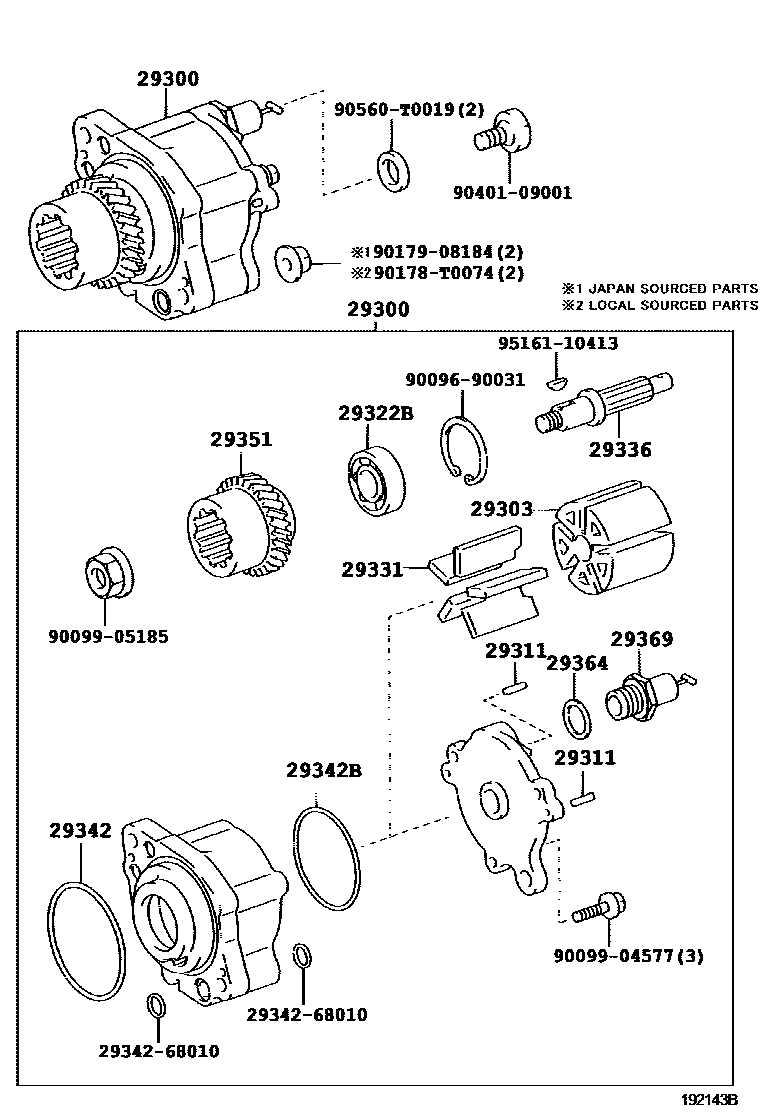

VACUUM PUMP

0001 1 0002 1

29300PUMP ASSY, VACUUM

main29300-0L010i1KDFTV..KUN51,61..GEN,SA200501-201202

(L)

main29300-54180i5LE..LAN50200605-201108

main29300-67020i1KDFTV..KUN51,61..LA200507-201202

(J)

29303ROTOR SUB-ASSY, VACUUM PUMP

main29303-67020i1KDFTV,2KDFTV..KUN50,61..5F;1KDFTV,2KDFTV..KUN51,60..SUVW,THSUV200501-201202

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010i1KDFTV,2KDFTV..KUN50,61..5F;1KDFTV,2KDFTV..KUN51,60..SUVW,THSUV200501-201202

29322BBEARING, VACUUM PUMP

main90099-10185i2KDFTV..KUN50..4FC;1KDFTV,2KDFTV..KUN51,6#200501-201202

main90099-10199i5LE..LAN50200605-200611

main90099-10227i5LE..LAN50200612-201108

29331BLADE, VACUUM PUMP, A

main29331-54130i5LE..LAN50200605-201108

main29331-67020i2KDFTV..KUN50..4FC;1KDFTV,2KDFTV..KUN51,6#200501-201202

29336SHAFT, VACUUM PUMP

main29336-58050i1KDFTV,2KDFTV..KUN50,61..5F;1KDFTV,2KDFTV..KUN51,60..SUVW,THSUV200501-201202

main29336-64031i5LE..LAN50200605-201108

29342PACKING, VACUUM PUMP

main29342-67020i1KDFTV,2KDFTV..KUN50,61..5F;1KDFTV,2KDFTV..KUN51,60..SUVW,THSUV200501-201202

29342BRING, O

main29342-58010i1KDFTV,2KDFTV..KUN50,61..5F;1KDFTV,2KDFTV..KUN51,60..SUVW,THSUV200501-201202

main29342-64030i5LE..LAN50200605-201108

29351GEAR, VACUUM PUMP

main29351-67020i1KDFTV,2KDFTV..KUN50,61..5F;1KDFTV,2KDFTV..KUN51,60..SUVW,THSUV200501-201202

29364WASHER, VACUUM PUMP

main29364-66010i1KDFTV,2KDFTV..KUN51,60..SUVW,THSUV;1KDFTV,2KDFTV,5LE..KUN50,61,LAN50..5F200501-201202

29369VALVE SUB-ASSY, CHECK

main29369-64030i1KDFTV,2KDFTV..KUN51,60..SUVW,THSUV;1KDFTV,2KDFTV,5LE..KUN50,61,LAN50..5F200501-201202

2934268010PACKING, VACUUM PUMP

main29342-68010

9009690031

main90096-90031

9009904577

main90099-04577

9009905185

main90099-05185

90178T0074

main90178-T0074

9017908184

main90179-08184

9040109001

main90401-09001

90560T0019

main90560-T0019

9516110413

main95161-10413

20 parts on this diagram · 2 diagrams in section
