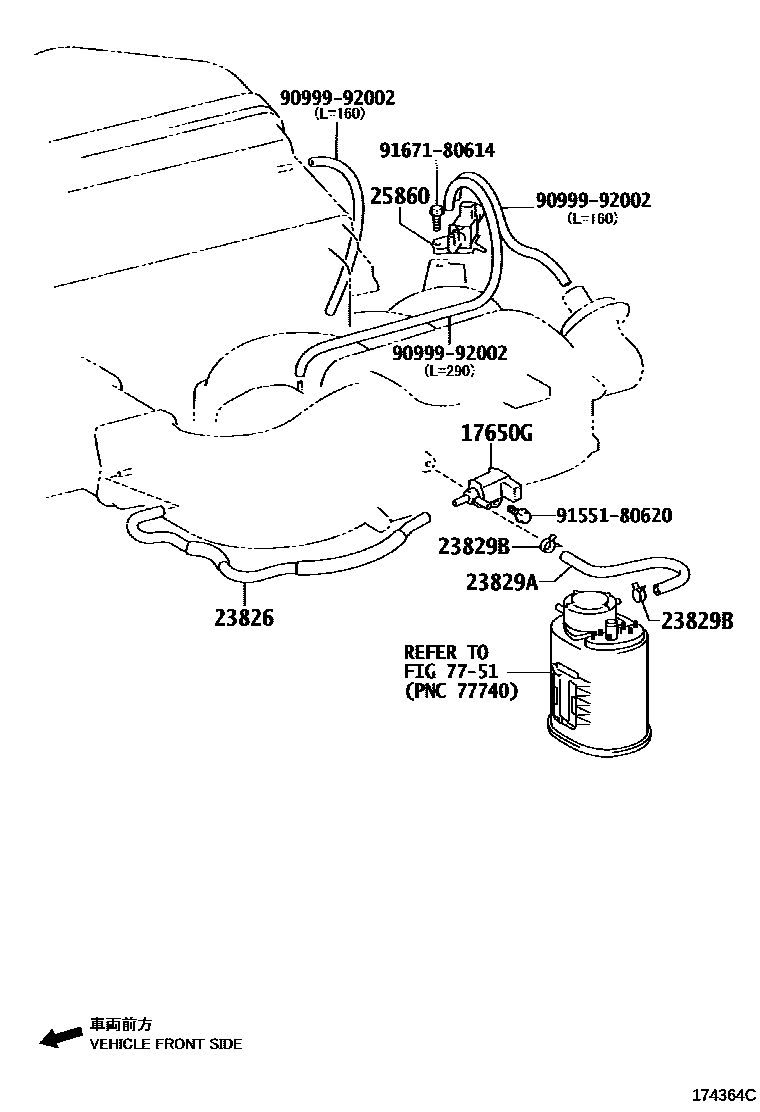

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12262i1GRFE..GGN60..5FC;1GRFE..GGN50..LHD;1GRFE..GGN50..5FC..SA200808-201204

main90910-12275i2TRFE..TGN51;2TRFE..TGN61..SUVW;2TRFE..TGN61..IDSUV..(GCC,IDN)200501-200810

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-31010i1GRFE..GGN60..5FC;1GRFE..GGN50..LHD;1GRFE..GGN50..5FC..SA200808-201204

23829AHOSE, FUEL VAPOR FEED

main23829-0C010i2TRFE..TGN51,61..SUVW..(GCC,IDN,LA,PHL,SA,TH)200501-200810

main23829-0C020i2TRFE..TGN51..VN;2TRFE..TGN51,61..IDSUV200808-201202

main23829-0C050i2TRFE..TGN51..MA200809-201109

main23829-0P020i1GRFE..GGN60..GEN200808-201107

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90466-T0040×2i1GRFE..GGN50;1GRFE..GGN60..5F;1GRFE..GGN60..ANCOM200507-200903

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-31010i1GRFE..GGN50;1GRFE..GGN60..5F;1GRFE..GGN60..ANCOM200507-200903

7751

9099992002

main90999-92002

9155180620

main91551-80620

9167180614

main91671-80614

9 parts on this diagram · 7 diagrams in section
