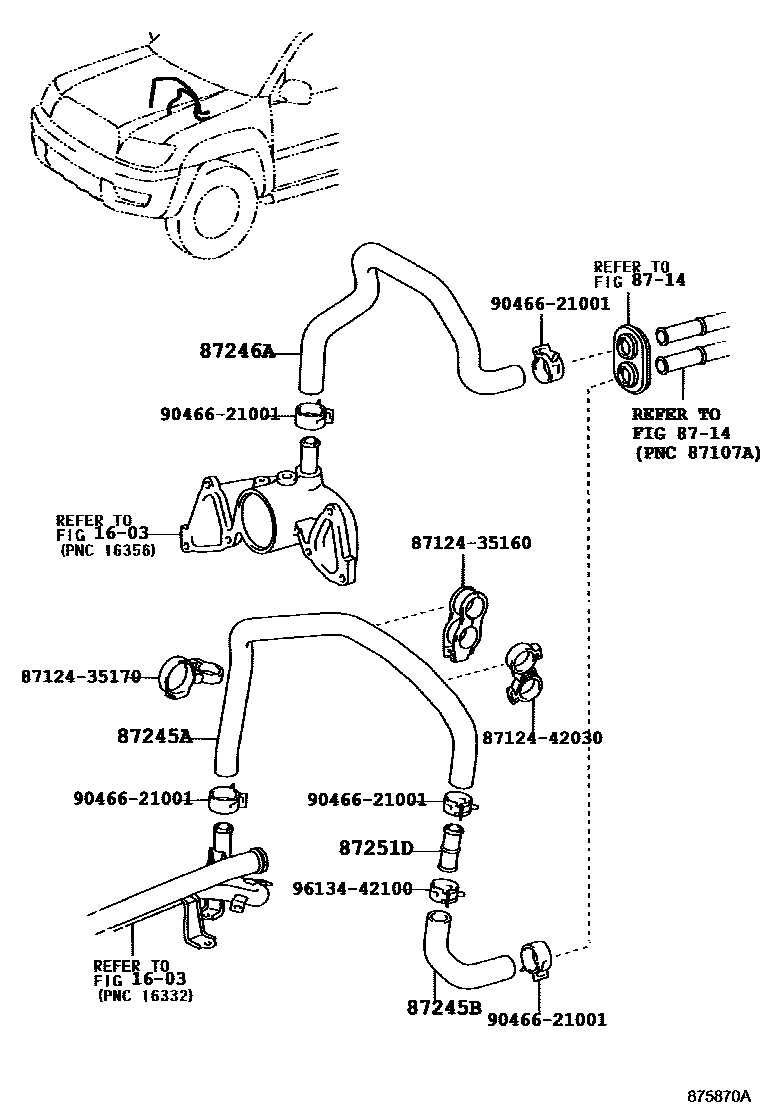

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245AHOSE, HEATER WATER, INLET A

main87245-3D480iGRN21#200211-200408

main87245-3D530iKZN215200211-200508

87245BHOSE, HEATER WATER, INLET B

main87245-3D470iKZN215200211-200508

main87245-3D500iGRN21#200508

87246AHOSE, HEATER WATER, OUTLET A

main87245-3D490iGRN21#200211-200408

main87245-3D540iKZN215200211-200508

87251DJOINT, WATER, NO.1

main87251-35020iGRN21#200508

8712435160CLAMP, HEATER

main87124-35160

8712435170CLAMP, HEATER

main87124-35170

8712442030CLAMP, HEATER

main87124-42030

9046621001

main90466-21001

9613442100

main96134-42100

11 parts on this diagram · 2 diagrams in section
