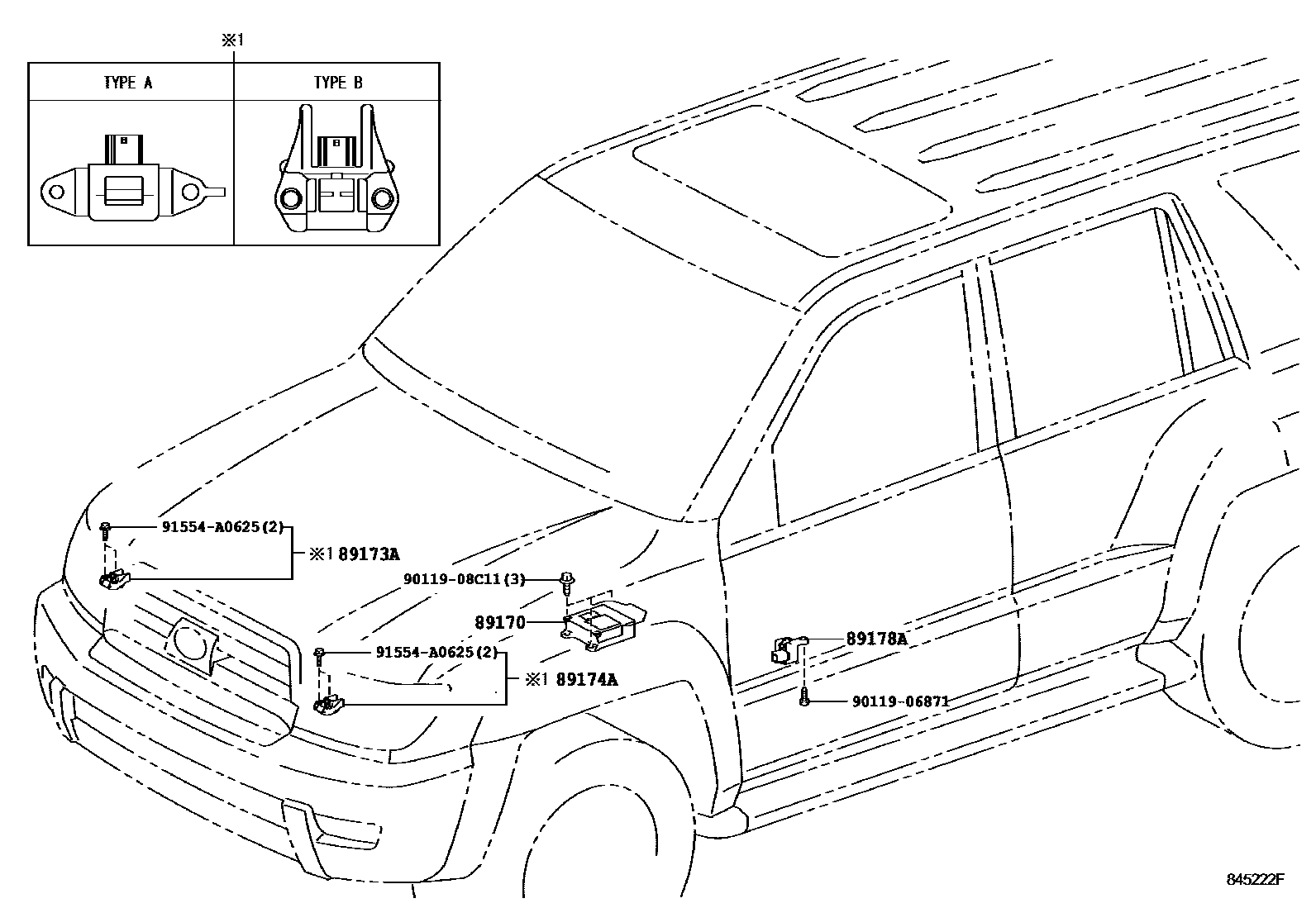

AIR BAG

89170SENSOR ASSY, AIRBAG

main89170-35160iGRN21#,KZN215200211-200508

89173ASENSOR, AIRBAG, FRONT RH

main89173-39335iGRN21#,KZN215200211-200506

TYPE A:REFER ILLUST.

main89173-49405iGRN21#,KZN215200506-200508

TYPE B:REFER ILLUST.

main89173-49405iGRN21#200508-200908

89174ASENSOR, AIRBAG, FRONT LH

main89173-39335iGRN21#,KZN215200211-200506

TYPE A:REFER ILLUST.

main89173-49405iGRN21#,KZN215200506-200508

TYPE B:REFER ILLUST.

main89173-49405iGRN21#200508-200908

89178ASENSOR, SEAT POSITION AIRBAG

main89178-0W010iGRN21#,KZN215200211-200908

9011906871

main90119-06871

9011908C11

main90119-08C11

91554A0625

main91554-A0625

7 parts on this diagram · 1 diagram in section
