WIRELESS DOOR LOCK

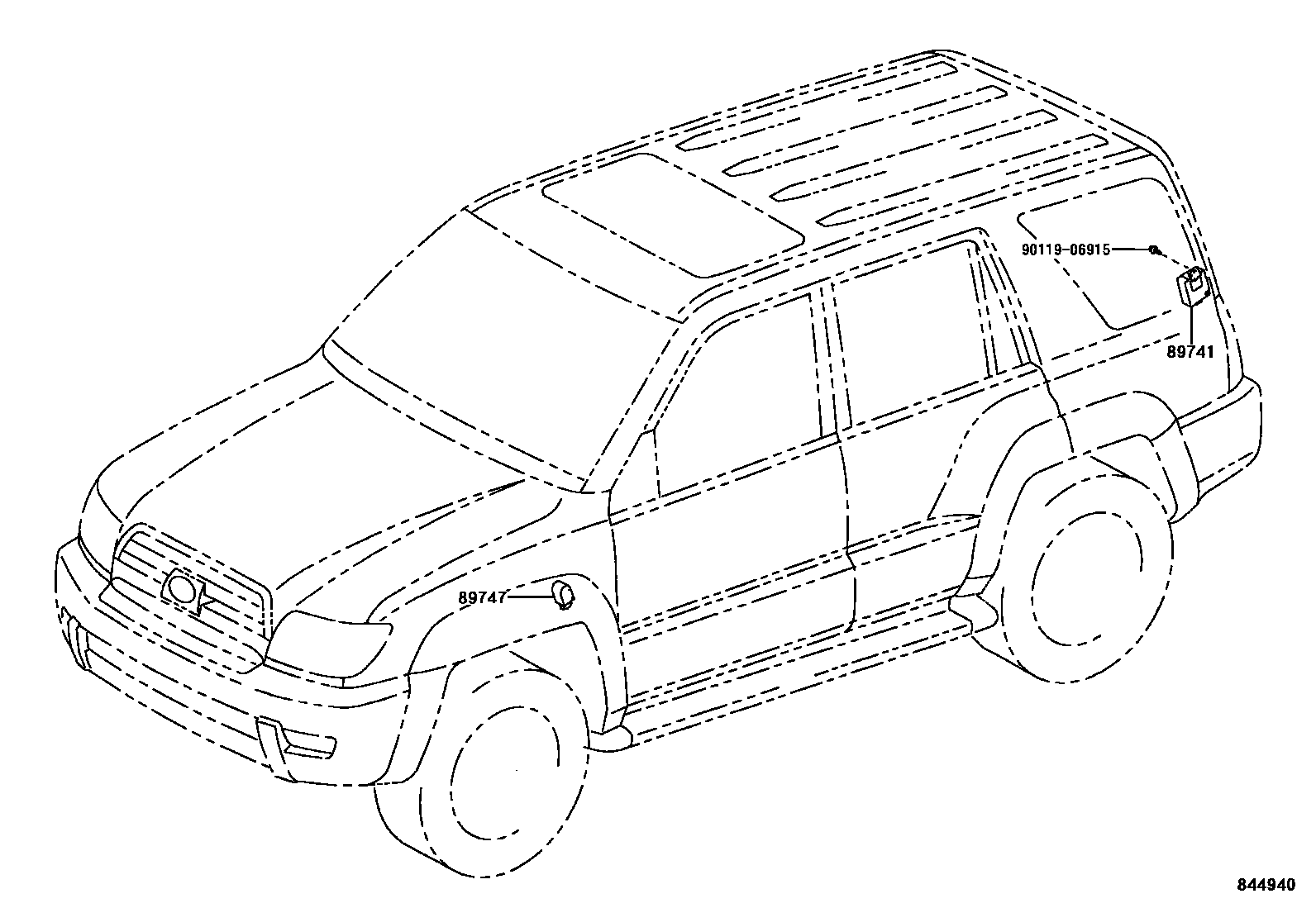

Parts diagram

89741RECEIVER, DOOR CONTROL

main89741-35020i200211-200408

89747BUZZER, WIRELESS DOOR LOCK

main89747-51010i200211-200408

9011906915

main90119-06915

3 parts on this diagram · 1 diagram in section
