WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1ENGINE 0004 1INSTRUMENT PANEL 0005 1DOOR 0006 1FLOOR,FRAME & ROOF 0007 1SEAT 0008 1CLAMP & BRACKET 0009 1CLAMP & BRACKET 0010 1CONNECTOR

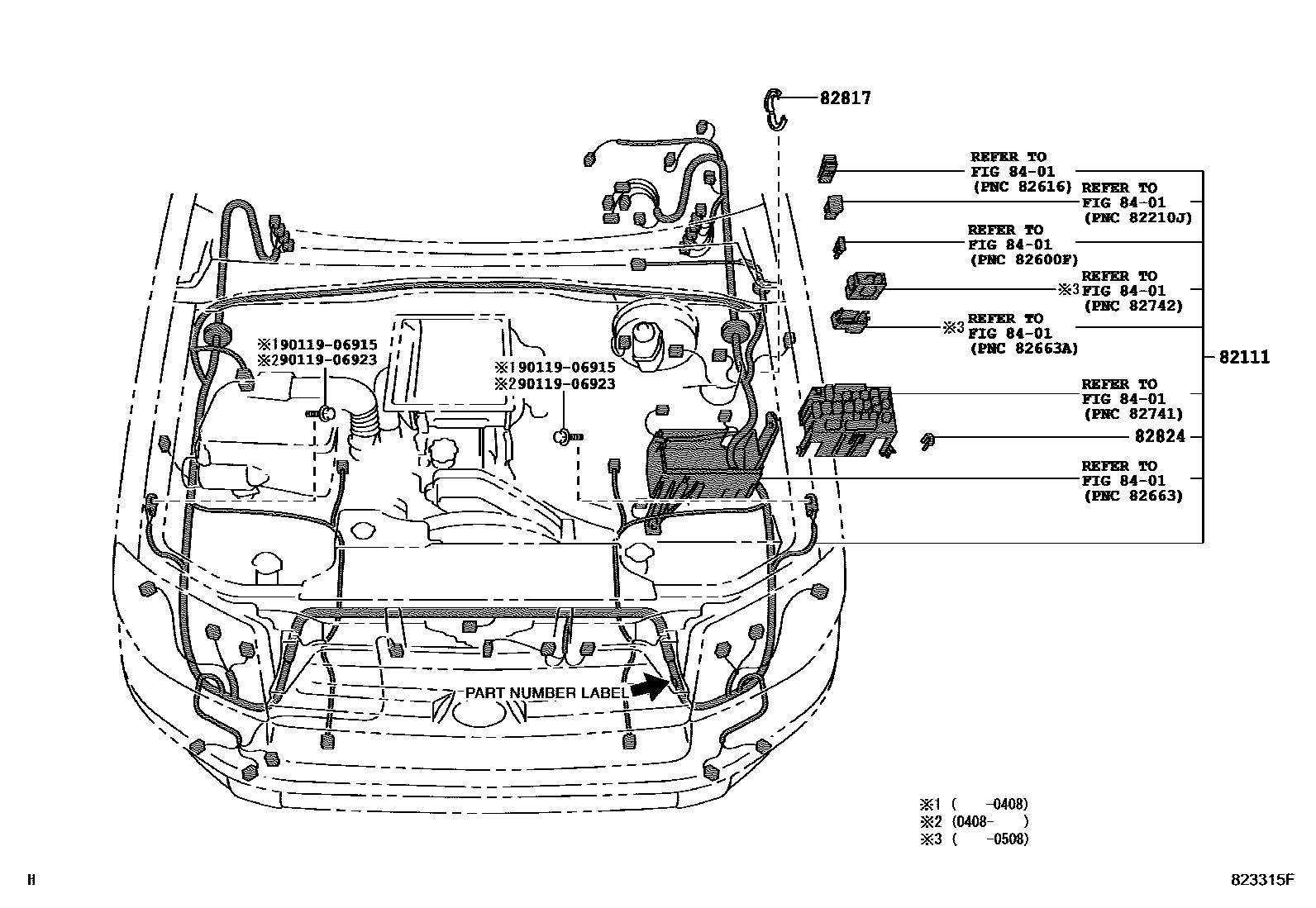

82111WIRE, ENGINE ROOM MAIN

main82111-35A50iGRN21#200308-200408

main82111-35A60iKZN215200308-200508

main82111-35B20iGRN21#200408-200508

main82111-35B21iGRN21#200508

main82111-3M430iGRN21#200211-200308

main82111-3M450iKZN215200211-200308

main82111-35D90iGRN21#200808

REAR SPOILER-WITH(LARGE SIZE)

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-32840iGRN21#200508

82824CONNECTOR, WIRING HARNESS

main82824-20140iGRN21#,KZN215200211-200508

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906915

main90119-06915

9011906923

main90119-06923

6 parts on this diagram · 10 diagrams in section
