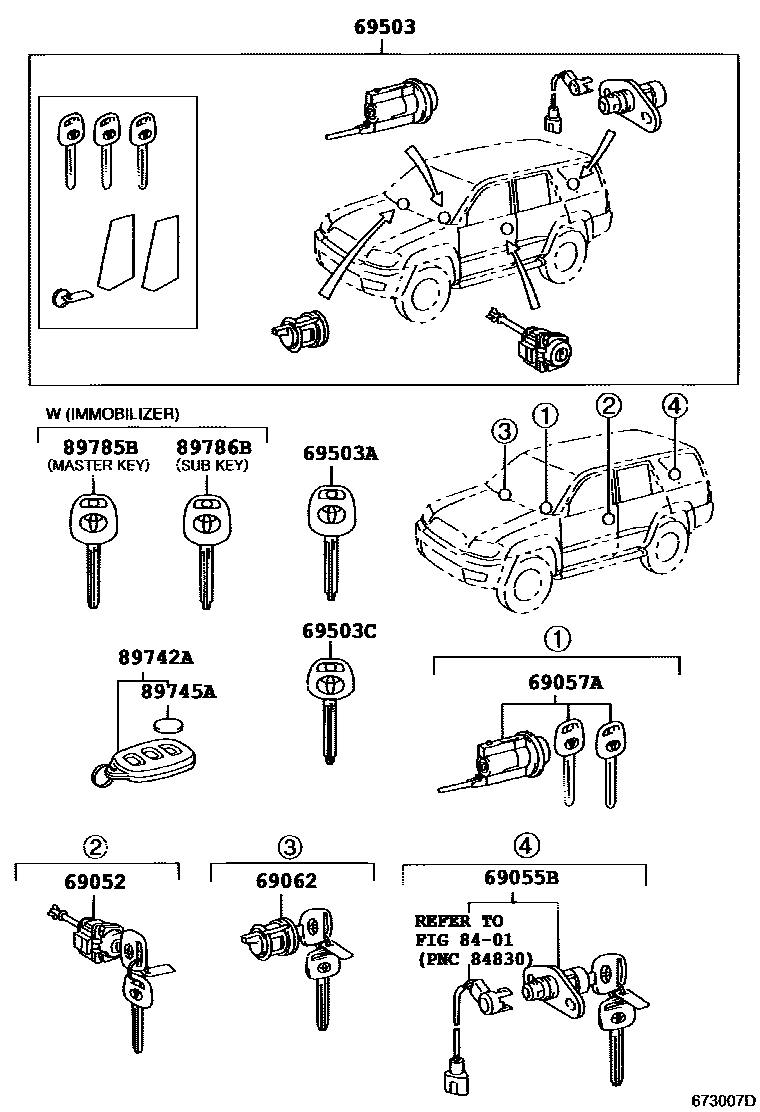

LOCK CYLINDER SET

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-35160iGRN21#200211-200408

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-35100iGRN21#200211-200408

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-35200supersedes 69057-35190iGRN21#..SR5; GRN215..LIMD200508

ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-60160iGRN21#200211-200408

69503CYLINDER SET, LOCK

main69005-3D050supersedes 69005-3D030iKZN215..LIMD;GRN215..5FC..LIMD; KZN215..SR5;GRN21#..5FC..SR5200211-200508

ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM

69503AKEY, BLANK

main90999-00251iKZN215..LIMD200211-200402

MASTER KEY,W(*68)

69503CKEY, SUB

main90999-00200iGRN21#..SR5200211-200408

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89742ATRANSMITTER, DOOR CONTROL

main89742-35040×2iGRN21#,KZN215200211-200408

main89742-35050×2iGRN21#,KZN215200408-200508

89745ABATTERY, TRANSMITTER

main89745-50010iGRN21#,KZN215200211-200508

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-60160iGRN21#..SR5; GRN215..LIMD200211-200408

ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-60170iGRN21#..SR5; GRN215..LIMD200211-200408

BLANK KEY; BLANK KEY,ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM

12 parts on this diagram · 1 diagram in section
