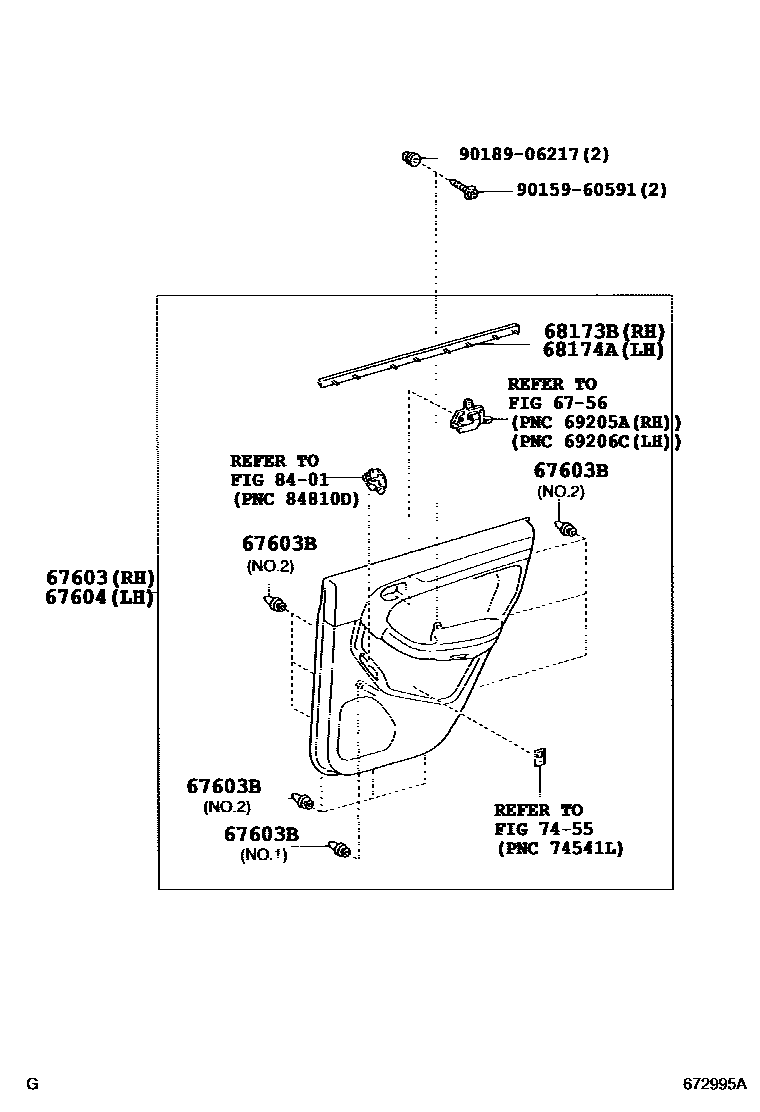

REAR DOOR PANEL & GLASS

0001 1 0002 1

6756REAR DOOR LOCK & HANDLE

→ Go to FIG 67-56

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-35740-B0iGRN215..LIMD200508-200908

STONE,TRIM1#

main67630-35740-B1iGRN215..LIMD200508-200908

FAWN,TRIM4#

main67630-35750-B0iGRN215..LIMD200211-200508

DK.GRAY,TRIM1#

main67630-35750-B1iGRN215..LIMD200211-200508

DK.GRAY,TRIM4#

main67630-35790-B0iGRN21#..SR5200211-200508

DK.GRAY,TRIM1#

main67630-35790-B1iKZN215..SR5;GRN21#..5FC..SR5200211-200508

DK.GRAY,TRIM4#

main67630-35880-B2iGRN21#..SR5200508-200908

STONE,TRIM1#

main67630-35880-B3iGRN21#..SR5200508-200908

FAWN,TRIM4#

67603BCLIP(FOR REAR DOOR TRIM BOARD)

main90467-09203iGRN21#200211-200508

NO.1

main90467-09206iKZN215;GRN21#..5FC200211-200508

NO.2

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-35740-B0iKZN215..LIMD;GRN215..5FC..LIMD200211-200508

DK.GRAY,TRIM1#

main67640-35740-B1iGRN215..LIMD200211-200508

DK.GRAY,TRIM4#

main67640-35780-B0iKZN215..SR5;GRN21#..5FC..SR5200211-200508

DK.GRAY,TRIM1#

main67640-35780-B1iGRN21#..SR5200211-200508

DK.GRAY,TRIM4#

main67640-35840-B0iGRN215..LIMD200508-200908

STONE,TRIM1#

main67640-35840-B1iGRN215..LIMD200508-200908

FAWN,TRIM4#

main67640-35880-B2iGRN21#..SR5200508-200908

STONE,TRIM1#

main67640-35880-B3iGRN21#..SR5200508-200908

FAWN,TRIM4#

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-35040iGRN21#200211-200908

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-35030iKZN215;GRN21#..5FC200211-200908

7455CAUTION PLATE

→ Go to FIG 74-55

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9015960591

main90159-60591

9018906217

main90189-06217

10 parts on this diagram · 2 diagrams in section
