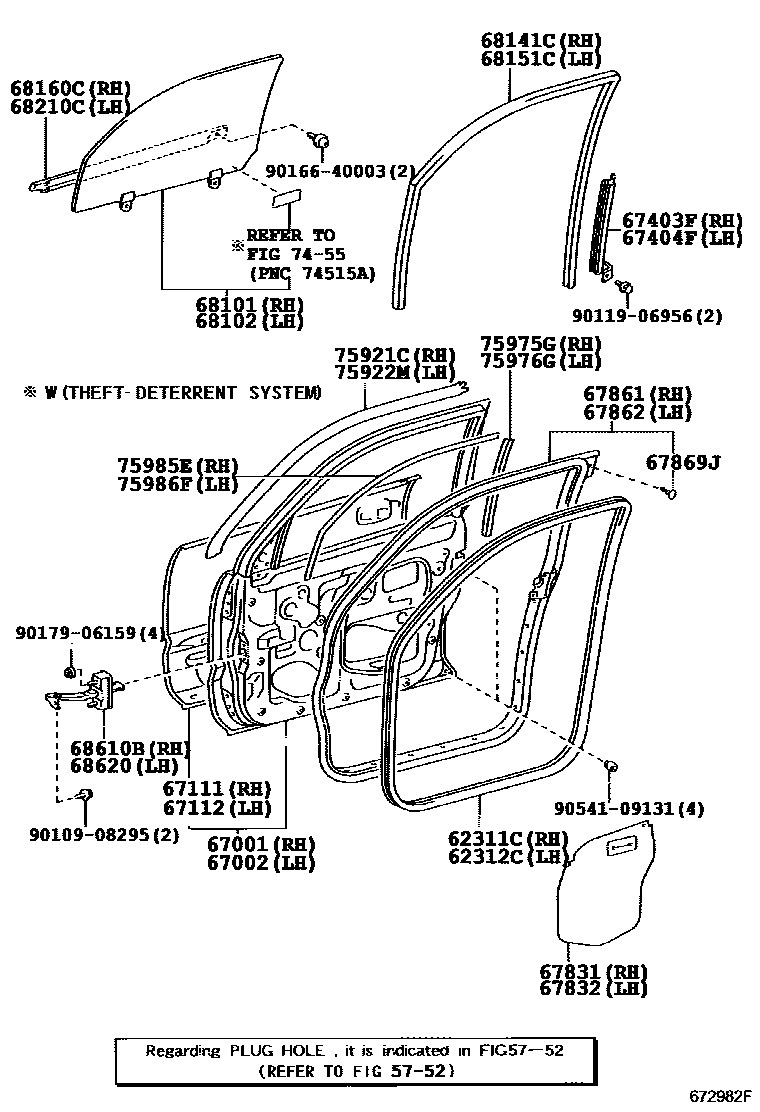

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5752HOLE PLUG

→ Go to FIG 57-52

62311CWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-35020-B0iGRN21#200211-200908

STONE,TRIM1#

main62311-35020-E0iGRN21#200211-200908

FAWN,TRIM4#

62312CWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-35020-B0iGRN21#200211-200908

STONE,TRIM1#

main62312-35020-E0iKZN215;GRN21#..5FC200211-200908

FAWN,TRIM4#

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-35500iGRN21#,KZN215200211-200503

main67001-35501iGRN21#,KZN215200504-200506

main67001-35502iGRN21#,KZN215200507-200908

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-35520iGRN21#,KZN215200211-200503

main67002-35521iGRN21#,KZN215200504-200506

main67002-35522iGRN21#,KZN215200507-200908

67111PANEL, FRONT DOOR, OUTER RH

main67111-35170iGRN21#,KZN215200211-200503

main67111-35171iGRN21#,KZN215200504-200908

67112PANEL, FRONT DOOR, OUTER LH

main67112-35170iGRN21#,KZN215200211-200503

main67112-35171iGRN21#,KZN215200504-200908

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-35060iGRN21#200211-200508

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-35060iGRN21#200211-200508

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-35160iGRN21#200211-200508

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-35110iGRN21#200211-200508

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-35090iGRN21#200211-200508

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-35080iGRN21#200211-200508

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-35010iGRN21#200211-200508

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-35200iGRN21#..SR5200211-200508

*UVCTT,T=4.0,GREEN

main68101-35210iGRN215..LIMD200211-200508

*UVCTT,T=4.0,GREEN

main68101-35210iGRN21#..SR5200211-200508

*UVCTT,T=4.0,GREEN,ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM

main68101-35230iGRN21#..SR5200508

*UVCTT,T=5.0,GREEN

main68101-35240iGRN215..LIMD200508

*UVCTT,T=5.0,GREEN

main68101-35240iGRN215..LIMD200508

*UVCTT,T=5.0,GREEN,ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-35200iGRN21#..SR5200211-200508

*UVCTT,T=4.0,GREEN

main68102-35210iGRN21#..SR5200211-200508

*UVCTT,T=4.0,GREEN,ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM

main68102-35210iGRN215..LIMD200211-200508

*UVCTT,T=4.0,GREEN

main68102-35230iGRN21#..SR5200508

*UVCTT,T=5.0,GREEN

main68102-35240iGRN215..LIMD200508

*UVCTT,T=5.0,GREEN

main68102-35240iGRN215..LIMD200508

*UVCTT,T=5.0,GREEN,ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM

68141CRUN, FRONT DOOR GLASS, RH

main68141-35090iGRN21#,KZN215200211-200308

main68141-35091iGRN21#200308-200508

main68141-35110iGRN21#200508

68151CRUN, FRONT DOOR GLASS, LH

main68151-35080iGRN21#,KZN215200211-200308

main68151-35081iGRN21#200308-200508

main68151-35100iGRN21#200508

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68161-35060iKZN215;GRN21#..5FC200211-200508

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68162-35060iGRN21#200211-200508

68610BCHECK ASSY, FRONT DOOR, RH

main68610-35040iGRN21#200211-200508

68620CHECK ASSY, FRONT DOOR, LH

main68620-35020iGRN21#200211-200508

7455CAUTION PLATE

→ Go to FIG 74-55

75921CTAPE, BLACK OUT, NO.1 RH

main75921-35010iGRN21#200211-200508

75922MTAPE, BLACK OUT, NO.1 LH

main75922-35010iGRN21#200211-200508

75975GSTRIPE, FRONT DOOR, NO.2 RH

main75975-35540iGRN21#200211-200602

main75975-35541iGRN21#200603

75976GSTRIPE, FRONT DOOR, NO.2 LH

main75976-35550iGRN21#200211-200602

main75976-35551iGRN21#200603

75985ESTRIPE, FRONT DOOR OUTSIDE, RH

main75985-3D320iGRN21#200211-200602

main75985-3D321iGRN21#200603

75986FSTRIPE, FRONT DOOR OUTSIDE, LH

main75986-3D200iGRN21#200211-200602

main75986-3D201iGRN21#200603

9010908295

main90109-08295

9011906956

main90119-06956

9016640003

main90166-40003

9017906159

main90179-06159

9054109131

main90541-09131

34 parts on this diagram · 2 diagrams in section
