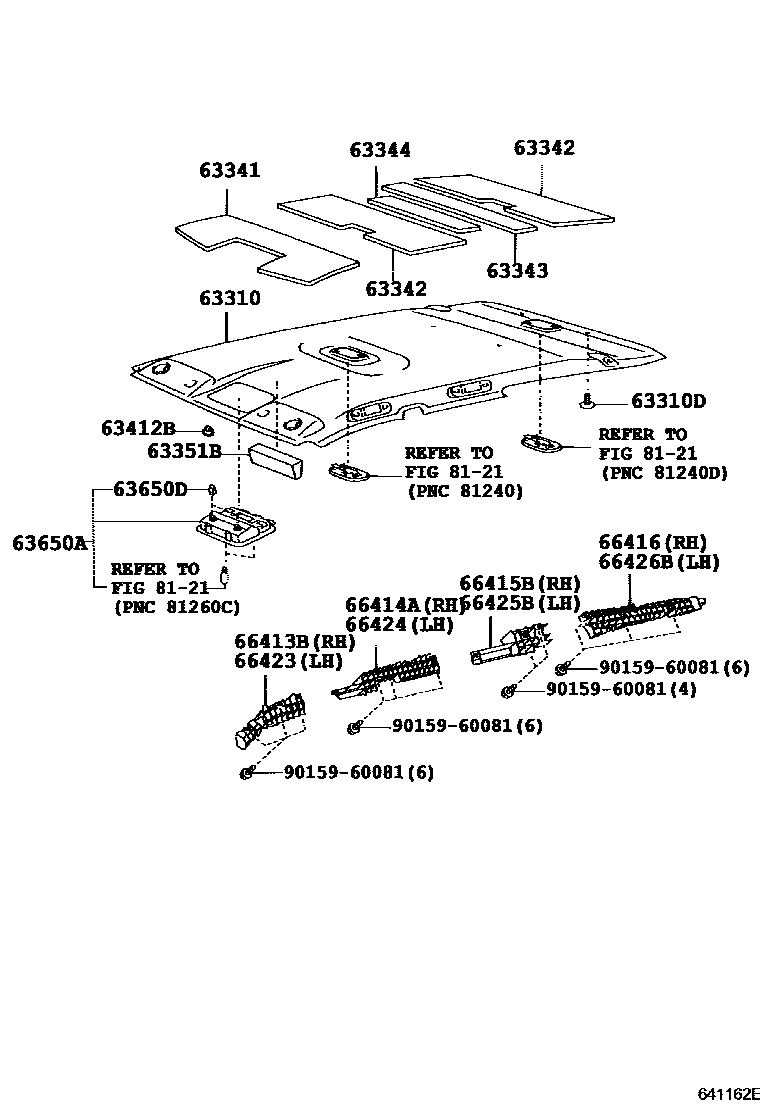

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1W(MOON ROOF)

63310HEADLINING ASSY, ROOF

main63321-35030-B0supersedes 63311-35280-B0iGRN21#,KZN215200211-200301

W/MOON ROOF,STONE,TRIM1#

main63321-35030-E0supersedes 63311-35280-E0iGRN21#,KZN215200211-200301

W/MOON ROOF,FAWN,TRIM4#

main63321-35040-B0supersedes 63311-35280-B0iGRN21#,KZN215200301-200312

W/MOON ROOF,STONE,TRIM1#

main63321-35040-E0supersedes 63311-35280-E0iGRN21#,KZN215200301-200312

W/MOON ROOF,FAWN,TRIM4#

main63321-35041-B0supersedes 63311-35281-B0iGRN21#,KZN215200312-200508

W/MOON ROOF,STONE,TRIM1#

main63321-35041-E0supersedes 63311-35281-E0iGRN21#,KZN215200312-200508

W/MOON ROOF,FAWN,TRIM4#

main63321-35070-B0supersedes 63311-35360-B0iGRN21#200508-200908

WITH(MOON ROOF),STONE,TRIM1#

main63321-35070-E0supersedes 63311-35360-E0iGRN21#200508-200908

WITH(MOON ROOF),FAWN,TRIM4#

63310DCLIP, ROOF HEADLINING

main90467-05164-B1×4iGRN21#200211-200408

STONE,TRIM1#

main90467-05164-E1×4iGRN21#200508-200908

FAWN,TRIM4#

63341PAD, ROOF SILENCER, NO.1

main63341-35130iGRN21#200211-200408

63342PAD, ROOF SILENCER, NO.2

main63342-35010iGRN21#200508

WITH(MOON ROOF)

63343PAD, ROOF SILENCER, NO.3

main63342-35040iGRN21#200211-200408

63344PAD, ROOF SILENCER, NO.4

main63342-35050iGRN21#200211-200408

63351BPAD, ROOF HEADLINING

main63351-35030iGRN21#200211-200408

63412BRETAINER, ROOF CONSOLE

main63412-35010iGRN21#200211-200408

63650ABOX ASSY, ROOF CONSOLE

main63670-0W020-B0supersedes 63670-0W010-B0iGRN21#200211-200408

W/MOON ROOF,STONE,TRIM1#

main63670-0W020-E0supersedes 63670-0W010-E0iKZN215;GRN21#..5FC200211-200508

W/MOON ROOF,FAWN,TRIM4#

main63670-0W021-B0supersedes 63670-0W010-B0iGRN21#200804-200908

WITH(MOON ROOF),STONE,TRIM1#

main63670-0W021-E0supersedes 63670-0W010-E0iGRN21#200804-200908

WITH(MOON ROOF),FAWN,TRIM4#

63650DCLIP(FOR ROOF CONSOLE BOX)

main90468-05125×2iGRN21#,KZN215200211-200508

66413BSPACER, SIDE RAIL, FRONT RH

main66413-35010iGRN21#,KZN215200211-200508

66414ASPACER, SIDE RAIL, REAR RH

main66414-35010iGRN21#,KZN215200211-200508

66415BSPACER, SIDE RAIL, REAR NO.2 RH

main66415-35010supersedes 66415-35050iGRN21#,KZN215200211-200508

W/MOON ROOF

66416SPACER, SIDE RAIL, REAR NO.3 RH

main66416-35010iGRN21#,KZN215200211-200508

main66416-35030iGRN21#200508

66423SPACER, SIDE RAIL, FRONT LH

main66423-35010iGRN21#,KZN215200211-200508

66424SPACER, SIDE RAIL, REAR LH

main66424-35010iGRN21#,KZN215200211-200508

66425BSPACER, SIDE RAIL, REAR NO.2 LH

main66425-35010supersedes 66425-35050iGRN21#,KZN215200211-200508

W/MOON ROOF

66426BSPACER, SIDE RAIL, REAR NO.3 LH

main66426-35010iGRN21#,KZN215200211-200508

main66426-35030iGRN21#200508

8121INTERIOR LAMP

→ Go to FIG 81-21

9015960081

main90159-60081

20 parts on this diagram · 2 diagrams in section
