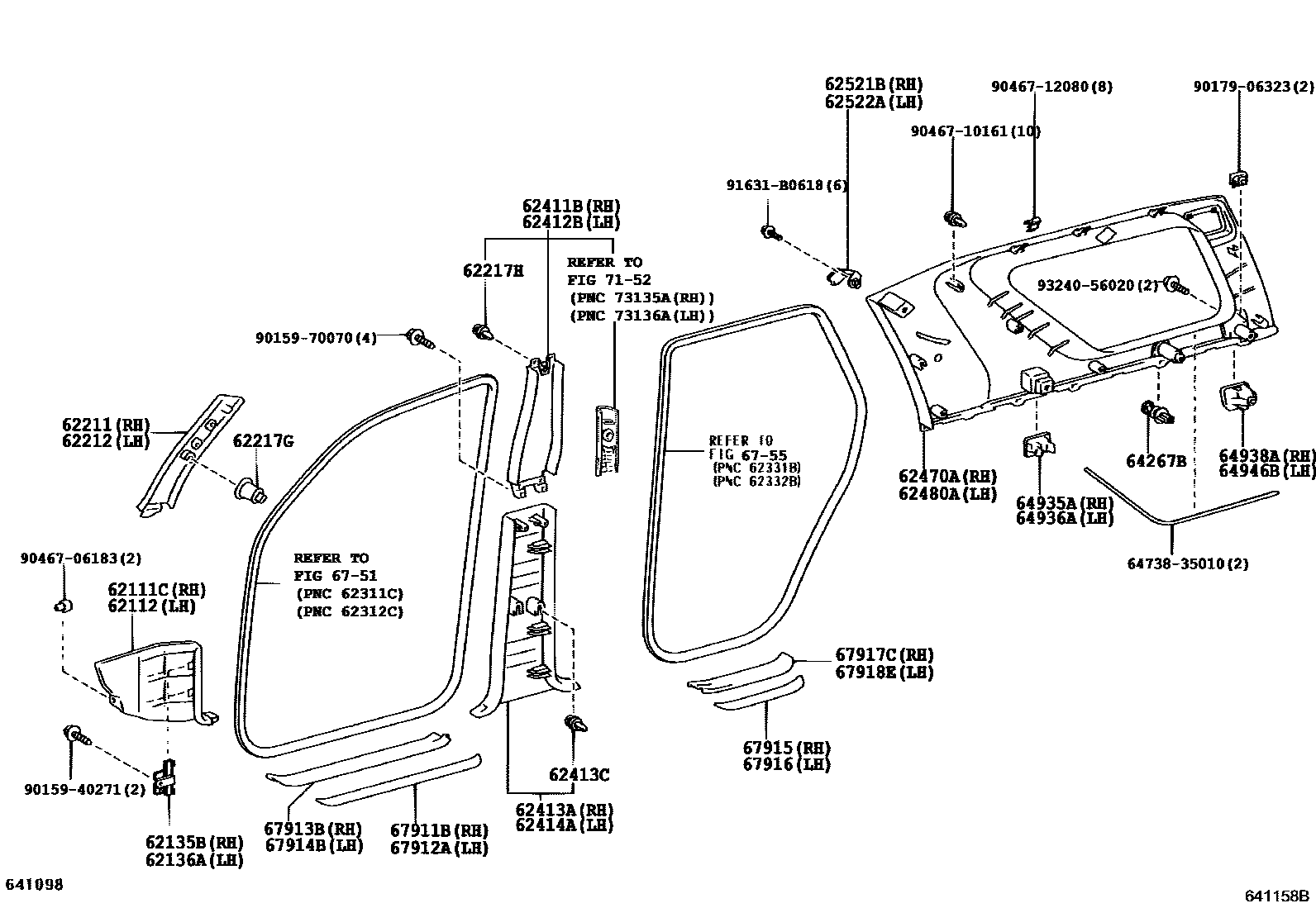

INSIDE TRIM BOARD

0001 1 0002 1

62111CBOARD, COWL SIDE TRIM, RH

main62111-60090-B0iKZN215;GRN21#..5FC200211-200908

STONE,TRIM1#

sub62111-60140

sub62111-60090

main62111-60090-E0iGRN21#200211-200908

FAWN,TRIM4#

sub62111-60140

sub62111-60090

62112BOARD, COWL SIDE TRIM, LH

main62112-60140-B0iGRN21#200211-200908

STONE,TRIM1#

sub62112-60190

sub62112-60140

main62112-60140-E0iGRN21#200211-200908

FAWN,TRIM4#

sub62112-60190

sub62112-60140

62135BRETAINER, COWL SIDE CARPET, RH

main62135-60010iKZN215;GRN21#..5FC200211-200508

62136ARETAINER, COWL SIDE CARPET, LH

main62136-60010iGRN21#200211-200508

62211GARNISH, FRONT PILLAR, RH

main62211-35070-B0iGRN21#200211-200908

STONE,TRIM1#

main62211-35070-E0iKZN215;GRN21#..5FC200211-200908

FAWN,TRIM4#

62212GARNISH, FRONT PILLAR, LH

main62212-35070-B0iGRN21#200211-200908

STONE,TRIM1#

main62212-35070-E0iKZN215;GRN21#..5FC200211-200908

FAWN,TRIM4#

62217GCLIP, FRONT PILLAR GARNISH

main62217-35010iGRN21#200211-200508

62217HCLIP, CENTER PILLER GARNISH

main90467-11111iGRN21#200211-200508

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-35030-B0iGRN21#200211-200908

STONE,TRIM1#

main62411-35030-E0iKZN215;GRN21#..5FC200211-200908

FAWN,TRIM4#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-35030-B0iKZN215;GRN21#..5FC200211-200908

STONE,TRIM1#

main62412-35030-E0iGRN21#200211-200908

FAWN,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-60060-B0iGRN21#200211-200609

STONE,TRIM1#

sub62413-60061

main62413-60060-E0iGRN21#200211-200609

FAWN,TRIM4#

sub62413-60061

main62413-60061-B0iGRN21#200610-200908

STONE,TRIM1#

main62413-60061-E0iGRN21#200610-200908

FAWN,TRIM4#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161iKZN215;GRN21#..5FC200211-200508

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-60070-B0iGRN21#200211-200609

STONE,TRIM1#

sub62414-60071

main62414-60070-E0iKZN215;GRN21#..5FC200211-200609

FAWN,TRIM4#

sub62414-60071

main62414-60071-B0iGRN21#200610-200908

STONE,TRIM1#

main62414-60071-E0iGRN21#200610-200908

FAWN,TRIM4#

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-35900-B0iGRN21#,KZN215200211-200308

STONE,TRIM12

sub62470-35900

main62470-35900-B0iGRN21#200308-200908

STONE,TRIM1#

sub62470-35900

main62470-35900-E0iGRN21#200308-200908

FAWN,TRIM4#

sub62470-35900

main62470-35900-E0iGRN21#,KZN215200211-200308

FAWN,TRIM42

sub62470-35900

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-35900-B0iGRN21#,KZN215200211-200308

STONE,TRIM12

sub62480-35900

main62480-35900-B0iGRN21#200308-200908

STONE,TRIM1#

sub62480-35900

main62480-35900-E0iGRN21#200308-200908

FAWN,TRIM4#

sub62480-35900

main62480-35900-E0iGRN21#,KZN215200211-200308

FAWN,TRIM42

sub62480-35900

62521BCOVER, QUARTER TRIM, RH

main62521-35010-B0iGRN21#200211-200908

STONE,TRIM1#

sub62521-35010

main62521-35010-E0iGRN21#200211-200908

FAWN,TRIM4#

sub62521-35010

62522ACOVER, QUARTER TRIM, LH

main62522-35010-B0iGRN21#200211-200908

STONE,TRIM1#

sub62522-35010

main62522-35010-E0iGRN21#200211-200908

FAWN,TRIM4#

sub62522-35010

64267BHOOK, PACKAGE HOLDER NET

main64267-0C010-B1iKZN215;GRN21#..5FC200211-200908

STONE,TRIM1#

main64267-0C010-E1iKZN215;GRN21#..5FC200211-200908

FAWN,TRIM4#

64935AHOLDER, TONNEAU COVER

main64935-35050-B0iGRN215..LIMD200211-200908

STONE,TRIM1#

sub64935-35050

main64935-35050-B0iGRN21#..SR5200211-200908

W/O TONEAU COVER,STONE,TRIM1#

sub64935-35050

main64935-35050-E0iGRN215..LIMD200211-200908

FAWN,TRIM4#

sub64935-35050

main64935-35050-E0iGRN21#..SR5200211-200908

W/O TONEAU COVER,FAWN,TRIM4#

sub64935-35050

64936AHOLDER, TONNEAU COVER, LH

main64936-35040-B0iGRN21#..SR5200211-200908

W/O TONEAU COVER,STONE,TRIM1#

sub64936-35040

main64936-35040-B0iKZN215..SR5;GRN21#..5FC..SR5200211-200908

STONE,TRIM1#

sub64936-35040

main64936-35040-E0iKZN215..SR5;GRN21#..5FC..SR5200211-200908

W/O TONEAU COVER,FAWN,TRIM4#

sub64936-35040

main64936-35040-E0iGRN21#..SR5200211-200908

FAWN,TRIM4#

sub64936-35040

64938AHOOK, TONNEAU COVER, A

main64938-35030-B0iGRN21#..SR5200211-200908

STONE,TRIM1#

sub64938-35030

main64938-35030-B0iGRN215..LIMD200211-200908

W/TONEAU COVER,STONE,TRIM1#

sub64938-35030

main64938-35030-E0iKZN215..LIMD;GRN215..5FC..LIMD200211-200908

W/TONEAU COVER,FAWN,TRIM4#

sub64938-35030

main64938-35030-E0iGRN215..LIMD200211-200908

FAWN,TRIM4#

sub64938-35030

main64938-35050-B0iKZN215..SR5;GRN21#..5FC..SR5200211-200908

STONE,TRIM1#

sub64938-35050

main64938-35050-B0iKZN215..SR5;GRN21#..5FC..SR5200211-200908

W/O TONEAU COVER,STONE,TRIM1#

sub64938-35050

main64938-35050-E0iGRN21#..SR5200211-200908

FAWN,TRIM4#

sub64938-35050

main64938-35050-E0iGRN21#..SR5200211-200908

W/O TONEAU COVER,FAWN,TRIM4#

sub64938-35050

64946BHOOK, TONNEAU COVER, B

main64946-35030-B0iKZN215..LIMD;GRN215..5FC..LIMD200211-200908

STONE,TRIM1#

sub64946-35030

main64946-35030-B0iGRN215..LIMD200211-200908

W/TONEAU COVER,STONE,TRIM1#

sub64946-35030

main64946-35030-E0iGRN215..LIMD200211-200908

W/TONEAU COVER,FAWN,TRIM4#

sub64946-35030

main64946-35030-E0iGRN215..LIMD200211-200908

FAWN,TRIM4#

sub64946-35030

main64946-35050-B0iGRN215..LIMD200211-200908

W/O TONEAU COVER,STONE,TRIM1#

sub64946-35050

main64946-35050-B0iGRN215..LIMD200211-200908

STONE,TRIM1#

sub64946-35050

main64946-35050-E0iKZN215..SR5;GRN21#..5FC..SR5200211-200908

FAWN,TRIM4#

sub64946-35050

main64946-35050-E0iGRN215..LIMD200211-200908

W/O TONEAU COVER,FAWN,TRIM4#

sub64946-35050

6751

6755

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-60010-B0iKZN215;GRN21#..5FC200211-200908

STONE,TRIM1#

sub67911-60010

main67911-60010-E0iKZN215;GRN21#..5FC200211-200908

FAWN,TRIM4#

sub67911-60010

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67911-60010-B0iGRN21#200211-200908

STONE,TRIM1#

sub67911-60010

main67911-60010-E0iGRN21#200211-200908

FAWN,TRIM4#

sub67911-60010

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-60080-B0iGRN21#200211-200611

STONE,TRIM1#

sub67913-60081

main67913-60080-E0iGRN21#200211-200611

FAWN,TRIM4#

sub67913-60081

main67913-60081-B0iGRN21#200612-200908

STONE,TRIM1#

sub67913-60082

main67913-60081-E0iGRN21#200612-200908

FAWN,TRIM4#

sub67913-60082

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-60070-B0iGRN21#200211-200611

STONE,TRIM1#

sub67914-60071

main67914-60070-E0iKZN215;GRN21#..5FC200211-200611

FAWN,TRIM4#

sub67914-60071

main67914-60071-B0iGRN21#200612-200908

STONE,TRIM1#

sub67914-60072

main67914-60071-E0iGRN21#200612-200908

FAWN,TRIM4#

sub67914-60072

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-60010-B0iGRN21#200211-200908

STONE,TRIM1#

main67915-60010-E0iKZN215;GRN21#..5FC200211-200908

FAWN,TRIM4#

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-60010-B0iGRN21#200211-200908

STONE,TRIM1#

main67916-60010-E0iKZN215;GRN21#..5FC200211-200908

FAWN,TRIM4#

67917CPLATE, REAR DOOR SCUFF, RH

main67917-60080-B0iGRN21#200211-200611

STONE,TRIM1#

sub67917-60081

main67917-60080-E0iKZN215;GRN21#..5FC200211-200611

FAWN,TRIM4#

sub67917-60081

main67917-60081-B0iGRN21#200612-200908

STONE,TRIM1#

sub67917-60082

main67917-60081-E0iGRN21#200612-200908

FAWN,TRIM4#

sub67917-60082

67918EPLATE, REAR DOOR SCUFF, LH

main67918-60070-B0iGRN21#200211-200611

STONE,TRIM1#

sub67918-60071

main67918-60070-E0iGRN21#200211-200611

FAWN,TRIM4#

sub67918-60071

main67918-60071-B0iGRN21#200612-200908

STONE,TRIM1#

sub67918-60072

main67918-60071-E0iGRN21#200612-200908

FAWN,TRIM4#

sub67918-60072

7152

6473835010PAD, DECK TRIM SIDE, NO.4

main64738-35010

9015940271

main90159-40271

9015970070

main90159-70070

9017906323

main90179-06323

9046706183

main90467-06183

9046710161

main90467-10161

9046712080

main90467-12080

91631B0618

main91631-B0618

9324056020

main93240-56020

42 parts on this diagram · 2 diagrams in section
