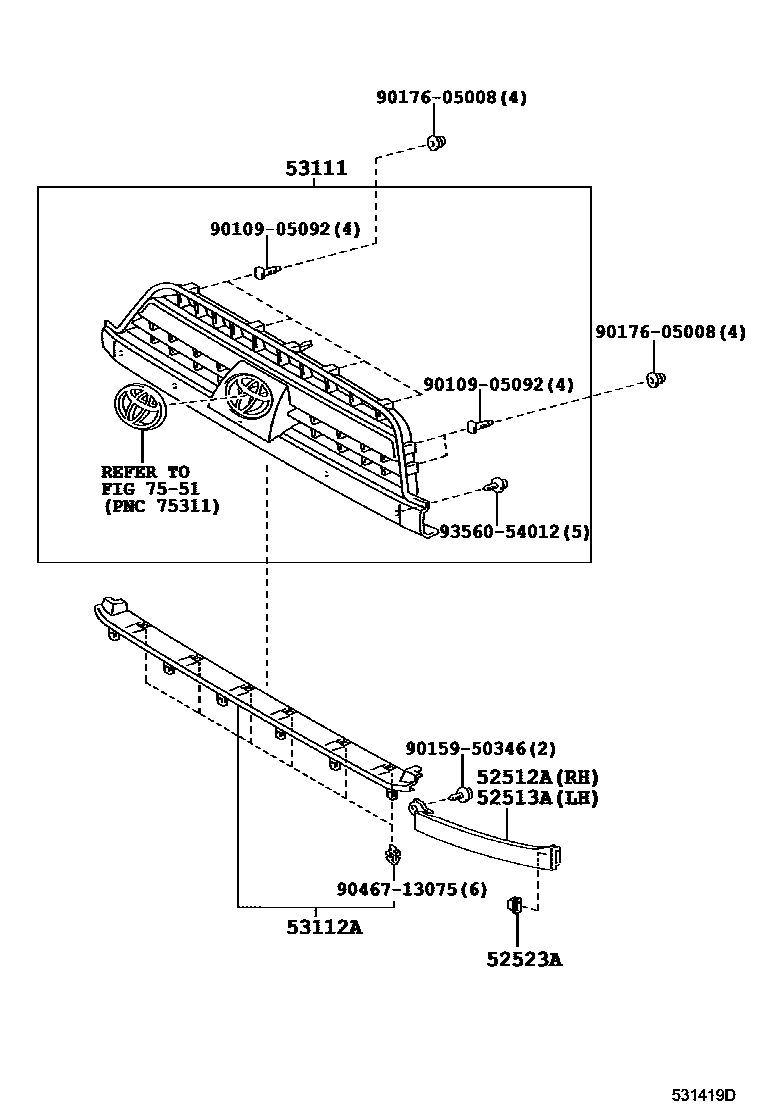

RADIATOR GRILLE

0001 1 0002 1

52512AFILLER, FRONT BUMPER, RH

main52512-35080iGRN21#200211-200408

main52512-35090-A0iGRN21#200508-200908

WHITE,056

main52512-35090-B0iGRN21#200508-200908

SILVER ME.,1D4

main52512-35090-B1iGRN21#200508-200908

DK.GRAY M.M.,1E9

main52512-35090-B2iGRN21#200508-200908

DK. GRAY M.M.,1F4

main52512-35090-C0iGRN21#200508-200908

BLACK,202

main52512-35090-D0iGRN21#..SR5200508-200908

DK. RED M.M.,3Q3

main52512-35090-E0iGRN21#200508-200908

BRONZE M.M.,4S2

main52512-35090-J1iGRN21#200508-200908

DK.BLUE MC.,8S6

52513AFILLER, FRONT BUMPER, LH

main52513-35080iGRN21#200211-200408

main52513-35090-A0iGRN21#200508-200908

WHITE,056

main52513-35090-B0iGRN21#200508-200908

SILVER ME.,1D4

main52513-35090-B1iGRN21#200508-200908

DK.GRAY M.M.,1E9

main52513-35090-B2iGRN21#200508-200908

DK. GRAY M.M.,1F4

main52513-35090-C0iGRN21#200508-200908

BLACK,202

main52513-35090-D0iGRN21#..SR5200508-200908

DK. RED M.M.,3Q3

main52513-35090-E0iGRN21#200508-200908

BRONZE M.M.,4S2

main52513-35090-J1iGRN21#200508-200908

DK.BLUE MC.,8S6

52523ARETAINER, FRONT BUMPER FILLER, NO.3

main53935-35020×2iGRN21#200211-200408

main53935-35030×2iGRN21#200508-200908

53111GRILLE, RADIATOR

main53100-35860-A0iGRN21#,KZN215..SR5200211-200408

WHITE,056

main53100-35860-B0iKZN215..SR5200211-200408

SILVER ME.,1D4

main53100-35860-B1iKZN215..SR5200211-200408

DK.GRAY M.M.,1E9

main53100-35860-C0iGRN21#..4FC;KZN215..LIMD;GRN215..5FC..LIMD200211-200508

BLACK,202

main53100-35860-D0iGRN21#,KZN215..SR5200211-200408

RED M.M.,3P1

main53100-35860-F0iKZN215..SR5200211-200408

CHAMPAGNE M.M.,587

main53100-35860-G0iGRN21#,KZN215..SR5200211-200408

DK.GREEN MC.,6Q7

main53100-35860-J0iGRN21#..4FC;KZN215..LIMD;GRN215..5FC..LIMD200211-200508

DK.BLUE MC.,8Q0

main53100-35860-J1iGRN21#..4FC;KZN215..LIMD;GRN215..5FC..LIMD200211-200508

GRAYISH BLUE ME.,8R3

main53100-35890iGRN21#,KZN215..SR5200408-200508

main53100-35A00-A0iGRN21#..SR5; GRN215..LIMD200508-200710

LIMITED PACKAGE,WHITE,056; WHITE,056

main53100-35A00-B0iGRN21#..SR5; GRN215..LIMD200508-200710

LIMITED PACKAGE,SILVER ME.,1D4; SILVER ME.,1D4

main53100-35A00-B1iGRN21#..SR5; GRN215..LIMD200508-200710

DK.GRAY M.M.,1E9; LIMITED PACKAGE,DK.GRAY M.M.,1E9

main53100-35A00-B2iGRN21#..SR5; GRN215..LIMD200508-200710

DK. GRAY M.M.,1F4; LIMITED PACKAGE,DK. GRAY M.M.,1F4

main53100-35A00-C0iGRN21#..SR5; GRN215..LIMD200508-200710

BLACK,202; LIMITED PACKAGE,BLACK,202

main53100-35A00-E0iGRN21#..SR5; GRN215..LIMD200508-200710

BRONZE M.M.,4S2; LIMITED PACKAGE,BRONZE M.M.,4S2

main53100-35A00-J1iGRN21#..SR5; GRN215..LIMD200508-200710

DK.BLUE MC.,8S6; LIMITED PACKAGE,DK.BLUE MC.,8S6

main53100-35A01-A0iGRN21#..SR5; GRN215..LIMD200711-200901

LIMITED PACKAGE,WHITE,056; WHITE,056

main53100-35A01-B0iGRN21#..SR5; GRN215..LIMD200711-200901

LIMITED PACKAGE,SILVER ME.,1D4; SILVER ME.,1D4

main53100-35A01-B1iGRN21#..SR5; GRN215..LIMD200711-200901

DK.GRAY M.M.,1E9; LIMITED PACKAGE,DK.GRAY M.M.,1E9

main53100-35A01-B2iGRN21#..SR5; GRN215..LIMD200711-200901

DK. GRAY M.M.,1F4; LIMITED PACKAGE,DK. GRAY M.M.,1F4

main53100-35A01-C0iGRN21#..SR5; GRN215..LIMD200711-200901

BLACK,202; LIMITED PACKAGE,BLACK,202

main53100-35A01-E0iGRN21#..SR5; GRN215..LIMD200711-200901

BRONZE M.M.,4S2; LIMITED PACKAGE,BRONZE M.M.,4S2

main53100-35A01-J1iGRN21#..SR5; GRN215..LIMD200711-200901

DK.BLUE MC.,8S6; LIMITED PACKAGE,DK.BLUE MC.,8S6

main53100-35A02-A0iGRN21#..SR5; GRN215..LIMD200902-200903

LIMITED PACKAGE,WHITE,056; WHITE,056

main53100-35A02-B0iGRN21#..SR5; GRN215..LIMD200902-200903

LIMITED PACKAGE,SILVER ME.,1D4; SILVER ME.,1D4

main53100-35A02-B1iGRN21#..SR5; GRN215..LIMD200902-200903

DK.GRAY M.M.,1E9; LIMITED PACKAGE,DK.GRAY M.M.,1E9

main53100-35A02-B2iGRN21#..SR5; GRN215..LIMD200902-200903

DK. GRAY M.M.,1F4; LIMITED PACKAGE,DK. GRAY M.M.,1F4

main53100-35A02-C0iGRN21#..SR5; GRN215..LIMD200902-200903

BLACK,202; LIMITED PACKAGE,BLACK,202

main53100-35A02-E0iGRN21#..SR5; GRN215..LIMD200902-200903

BRONZE M.M.,4S2; LIMITED PACKAGE,BRONZE M.M.,4S2

main53100-35A02-J1iGRN21#..SR5; GRN215..LIMD200902-200903

DK.BLUE MC.,8S6; LIMITED PACKAGE,DK.BLUE MC.,8S6

main53100-35A03-A0iGRN21#..SR5; GRN215..LIMD200903-200908

LIMITED PACKAGE,WHITE,056; WHITE,056

main53100-35A03-B0iGRN21#..SR5; GRN215..LIMD200903-200908

LIMITED PACKAGE,SILVER ME./GRAY,1D4; SILVER ME./GRAY,1D4

main53100-35A03-B1iGRN21#..SR5; GRN215..LIMD200903-200908

DK.GRAY M.M./BLACK,1E9; LIMITED PACKAGE,DK.GRAY M.M./BLACK,1E9

main53100-35A03-B2iGRN21#..SR5; GRN215..LIMD200903-200908

DK.GRAY M.M./BLACK,1F4; LIMITED PACKAGE,DK.GRAY M.M./BLACK,1F4

main53100-35A03-C0iGRN21#..SR5; GRN215..LIMD200903-200908

BLACK,202; LIMITED PACKAGE,BLACK,202

main53100-35A03-E0iGRN21#..SR5; GRN215..LIMD200903-200908

BRONZE M.M./GRAY,4S2; LIMITED PACKAGE,BRONZE M.M./GRAY,4S2

main53100-35A03-J1iGRN21#..SR5; GRN215..LIMD200903-200908

DK.BLUE MC./BLACK,8S6; LIMITED PACKAGE,DK.BLUE MC./BLACK,8S6

main53100-35A10-C0iGRN21#..SR5200508-200710

BLACK,056 ,1D4 ,1E9 ,1F4 ,202 ,3Q3 ,4S2 ,8S6

main53100-35A11-C0iGRN21#..SR5200711-200901

BLACK,056 ,1D4 ,1E9 ,1F4 ,202 ,3Q3 ,4S2 ,8S6

main53100-35A12-C0iGRN21#..SR5200902-200903

BLACK,056 ,1D4 ,1E9 ,1F4 ,202 ,3Q3 ,4S2 ,8S6

main53100-35A13-C0iGRN21#..SR5200903-200908

BLACK,056 ,1D4 ,1E9 ,1F4 ,202 ,3Q3 ,4S2 ,8S6

53112AGRILLE, RADIATOR, LOWER

main53102-35010iGRN21#,KZN215200211-200508

7551EMBLEM & NAME PLATE

→ Go to FIG 75-51

9010905092

main90109-05092

9015950346

main90159-50346

9017605008

main90176-05008

9046713075

main90467-13075

9356054012

main93560-54012

11 parts on this diagram · 2 diagrams in section
