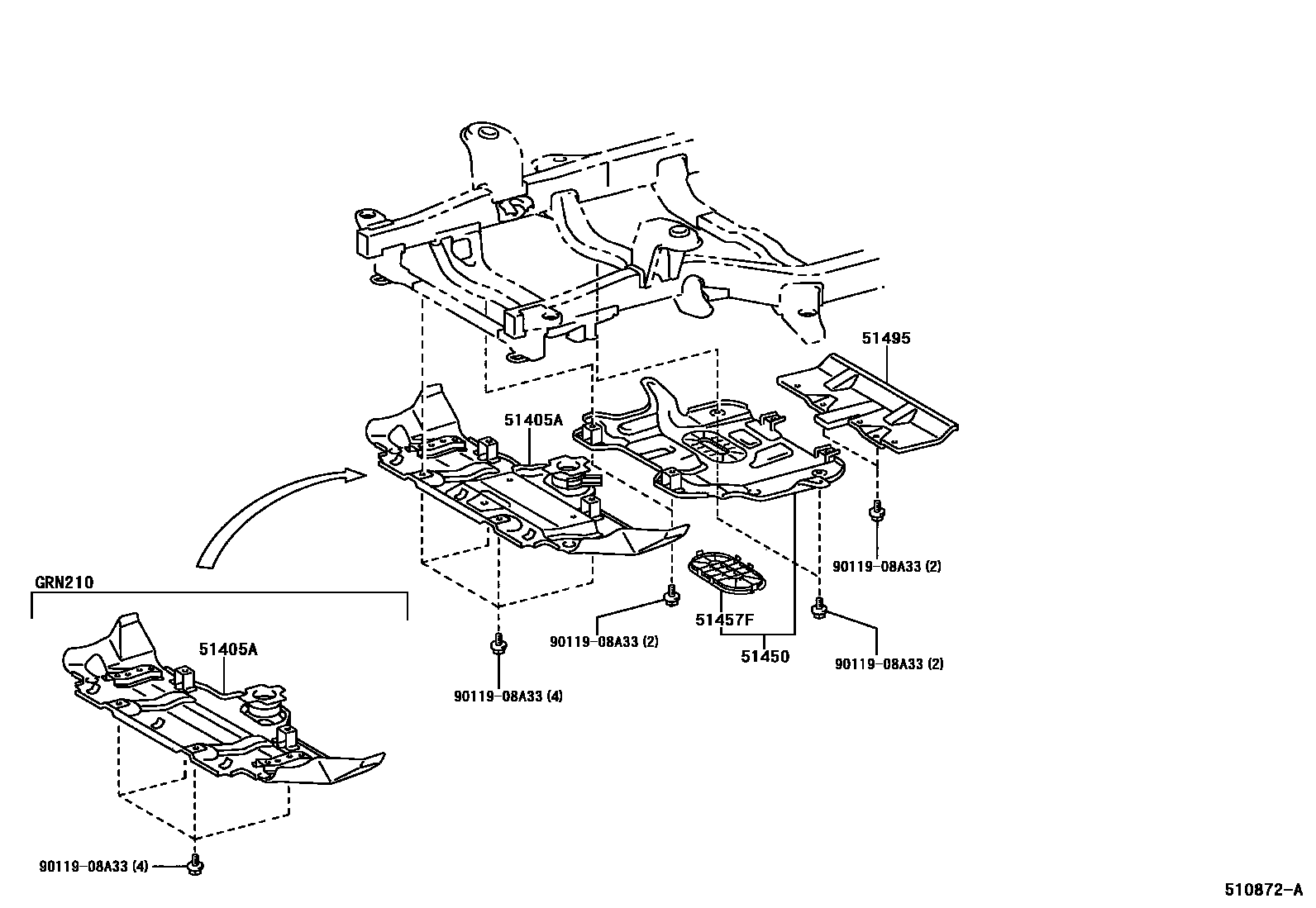

SUSPENSION CROSSMEMBER & UNDER COVER

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-35100iGRN215,KZN215200211-200310

main51405-35101iKZN215;GRN215..5FC200310-200508

main51405-35140iGRN210..5FC200211-200508

51450COVER ASSY, ENGINE UNDER, REAR

main51450-35010iKZN215;GRN21#..5FC200211-200508

51457FSEAL, ENGINE UNDER COVER

main51457-35030iGRN21#200211-200408

51495COVER, TRANSMISSION UNDER

main51495-35050iGRN215200211-200408

9011908A33

main90119-08A33

5 parts on this diagram · 1 diagram in section
