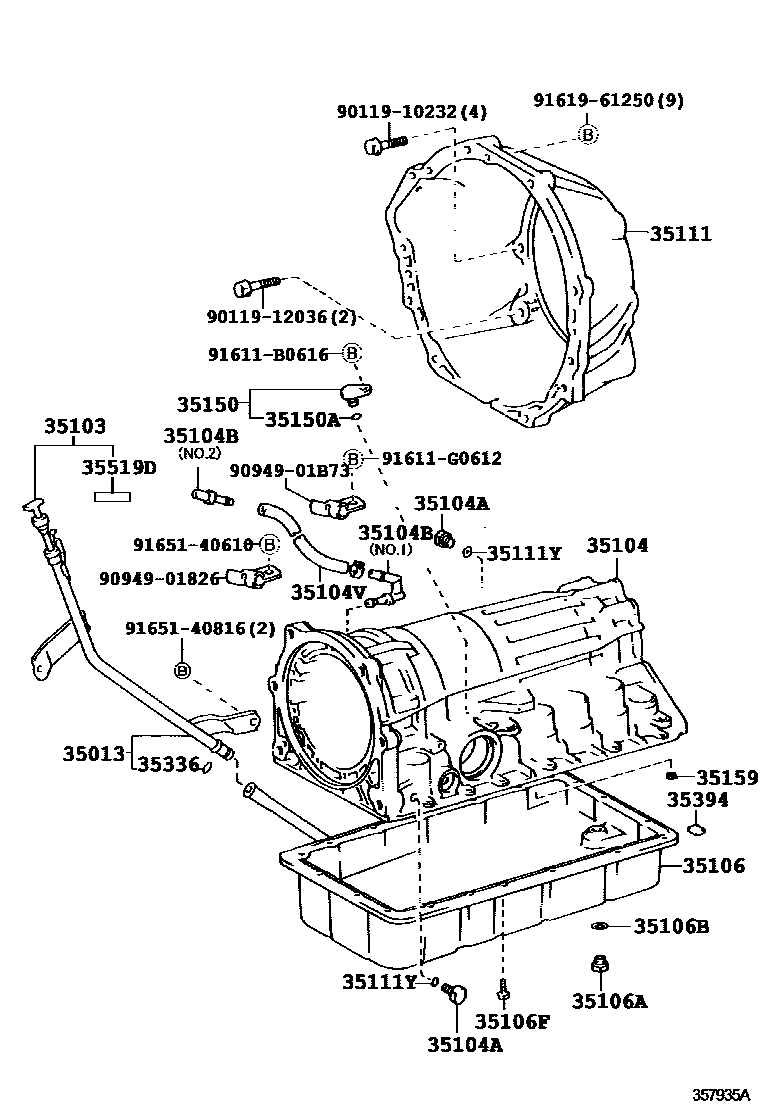

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A343F 0002 1A340E 0003 1A340F 0004 1A750E,A750F

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-35310iKZN215200405-200508

main35013-60140iKZN215200211-200404

main35013-60260iGRN21#200211-200408

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-35370iKZN215200211-200402

main35103-60190iGRN21#200211-200408

main35103-60250iKZN215200402-200508

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-0C010iGRN215200811

NO MARK

main35104-26060iGRN21#200211-200408

main35104-60200iKZN215200211-200508

main35104-60220iGRN21#200408-200409

main35104-60221iGRN215200904

MARK A

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×2iGRN21#,KZN215..4FC200211-200508

main90341-A0001×5iGRN215200811

(L)

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03098iGRN215200211-200408

NO.1

main90930-03099iKZN215200211-200508

NO.2

main90930-03108iGRN210200211-200408

main90930-03168iGRN215200211-200408

NO.2

35104VHOSE (FOR BREATHER PLUG)

main90445-11118iGRN215200211-200408

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-0C010iGRN215200811

(L)

main35106-35120iKZN215200211-200508

main35106-60140iGRN21#200211-200408

main35106-60180iGRN210; GRN215200508

(J)

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iGRN21#,KZN215200211-200508

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iKZN215200211-200508

main35178-50010iGRN21#200211-200304

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06117×20iGRN21#200408-200508

main90119-06173×20iGRN21#200610

main90119-06513×19iGRN21#200211-200408

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-04010iGRN215200811

(L)

main35111-35090iKZN215200211-200508

main35111-35100iGRN21#200211-200408

main35111-60150iGRN210200508

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×5iGRN21#200408-200508

35150PLUG ASSY, TRANSMISSION CASE

main35150-30010iKZN215200211-200508

35150ARING, O (FOR AUTOMATIC TRANSMISSION CASE PLUG)

main90301-09012iKZN215200211-200508

35159GASKET, BRAKE DRUM

main35159-0C010×3iGRN215200811

(L)

main35159-30010iGRN21#200211-200408

main35159-60010×3iGRN210; GRN215200508

(J)

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09011iKZN215200211-200404

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×3iGRN21#200211-200408

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-20030iGRN21#200211-200408

9011910232

main90119-10232

9011912036

main90119-12036

9094901826

main90949-01826

9094901B73

main90949-01B73

91611B0616

main91611-B0616

91611G0612

main91611-G0612

9161961250

main91619-61250

9165140610

main91651-40610

9165140816

main91651-40816

27 parts on this diagram · 4 diagrams in section
