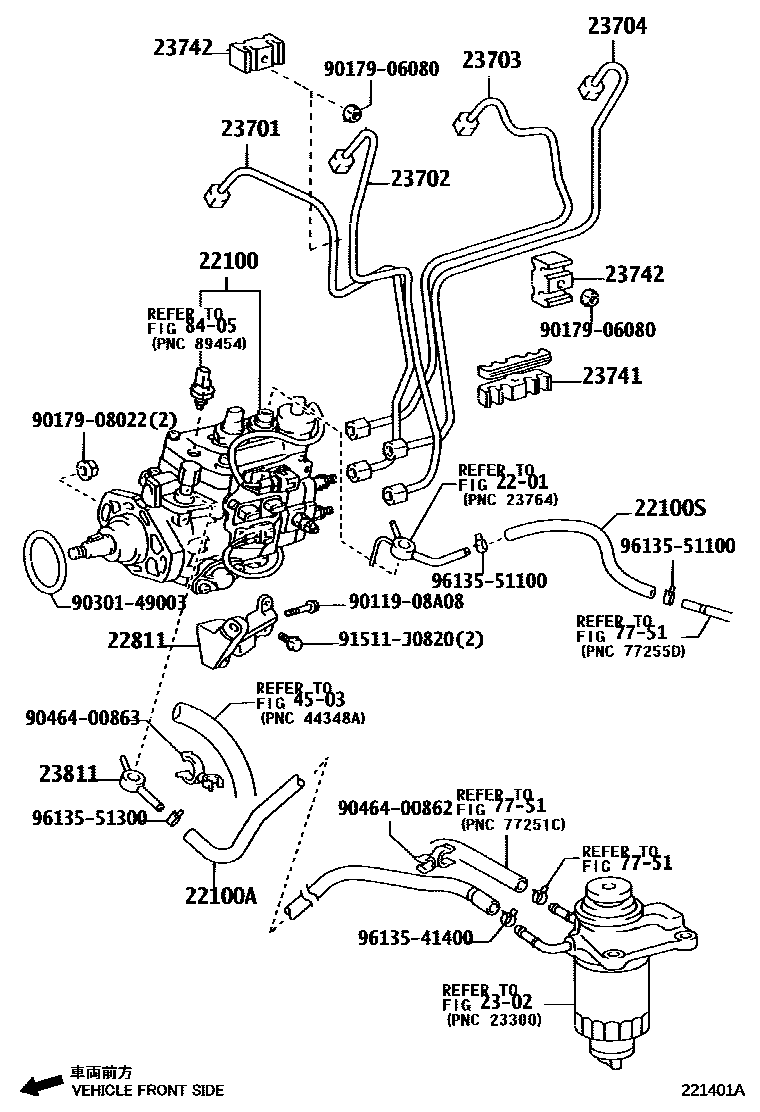

INJECTION PUMP ASSEMBLY

2201INJECTION NOZZLE

→ Go to FIG 22-01

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-67120i1KZTE..KZN215200211

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-67180i1KZTE..KZN215200211

22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)

main23273-67120i1KZTE..KZN215200211

22811STAY, INJECTION PUMP, NO.1

main22811-67010i1KZTE..KZN215200211

2302FUEL FILTER

→ Go to FIG 23-02

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-67021i1KZTE..KZN215200211

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-67021i1KZTE..KZN215200211

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-67031i1KZTE..KZN215200211

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-67020i1KZTE..KZN215200211

23741CLAMP, INJECTION PIPE, NO.1

main23741-64030i1KZTE..KZN215200211

23742CLAMP, INJECTION PIPE, NO.2

main23742-67010×2i1KZTE..KZN215200211

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-67020i1KZTE..KZN215200211

4503POWER STEERING TUBE

→ Go to FIG 45-03

7751FUEL TANK & TUBE

→ Go to FIG 77-51

8405ELECTRONIC CONTROLED DIESEL (ECD)

→ Go to FIG 84-05

9011908A08

main90119-08A08

9017906080

main90179-06080

9017908022

main90179-08022

9030149003

main90301-49003

9046400862

main90464-00862

9046400863

main90464-00863

91511J0820

main91511-J0820

9613541400

main96135-41400

9613551100

main96135-51100

9613551300

main96135-51300

26 parts on this diagram · 1 diagram in section
