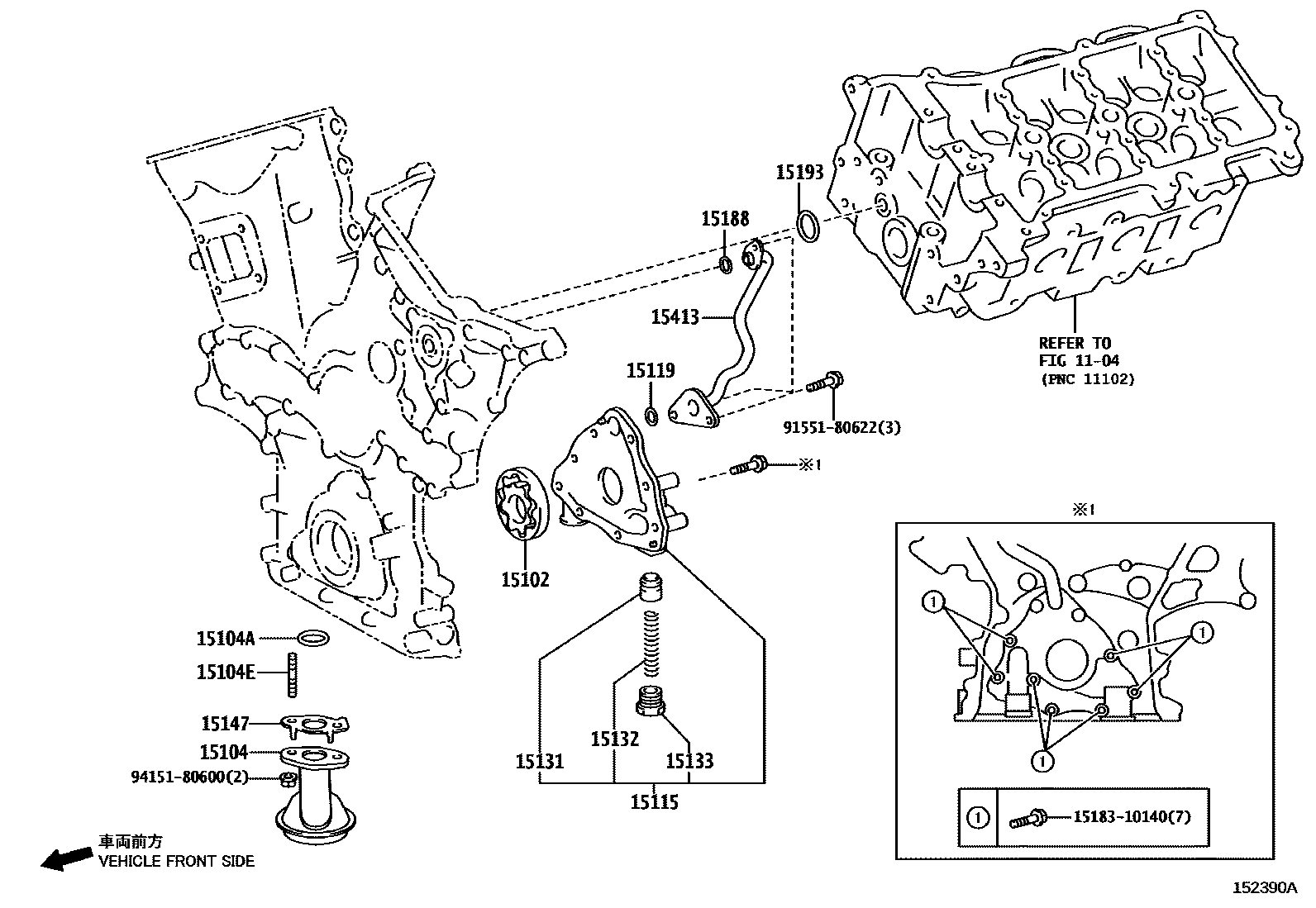

ENGINE OIL PUMP

0001 1 0002 1

1104CYLINDER HEAD

→ Go to FIG 11-04

15102ROTOR SET, OIL PUMP

main15103-31050i1GRFE..GRN21#200408-200508

15104STRAINER SUB-ASSY, OIL

main15104-30040i1KZTE..KZN215200211

main15104-31050i1GRFE..GRN21#..5FC200211-200508

15104ARING, O(FOR OIL STRAINER)

main96722-24030i1GRFE..GRN21#200211-200408

15104EBOLT, STUD(FOR OIL STRAINER)

main90116-06127×2i1GRFE..GRN21#200211-200408

main90116-06140×2i1KZTE..KZN215200211

main90126-06029×2i1GRFE..GRN21#200411-200508

15115COVER, OIL PUMP

main15115-31050i1GRFE..GRN21#200408-200508

15119GASKET, OIL PUMP COVER

main15119-31050i1GRFE..GRN21#200301-200408

15131VALVE, OIL PUMP RELIEF

main15131-46040i1GRFE..GRN21#200408-200508

15132SPRING, OIL PUMP RELIEF VALVE

main15132-17010i1KZTE..KZN215200211-200508

main15132-46020i1GRFE..GRN21#200408-200508

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i1KZTE..KZN215200211-200508

main15133-28020i1GRFE..GRN21#200301-200408

15147GASKET, OIL STRAINER

main15147-46010i1GRFE..GRN21#200508

15188GASKET, OIL PUMP

main15188-31050i1GRFE..GRN21#200301-200408

15193GASKET, OIL PUMP

main15193-31010i1GRFE..GRN21#200508

main15193-67011i1KZTE..KZN215200211

15413PIPE, OIL PUMP OUTLET

main15413-31020i1GRFE..GRN21#200301-200408

1518310140BOLT, UNION(FOR OIL PUMP)

main15183-10140

9155180622

main91551-80622

9415180600

main94151-80600

17 parts on this diagram · 2 diagrams in section
