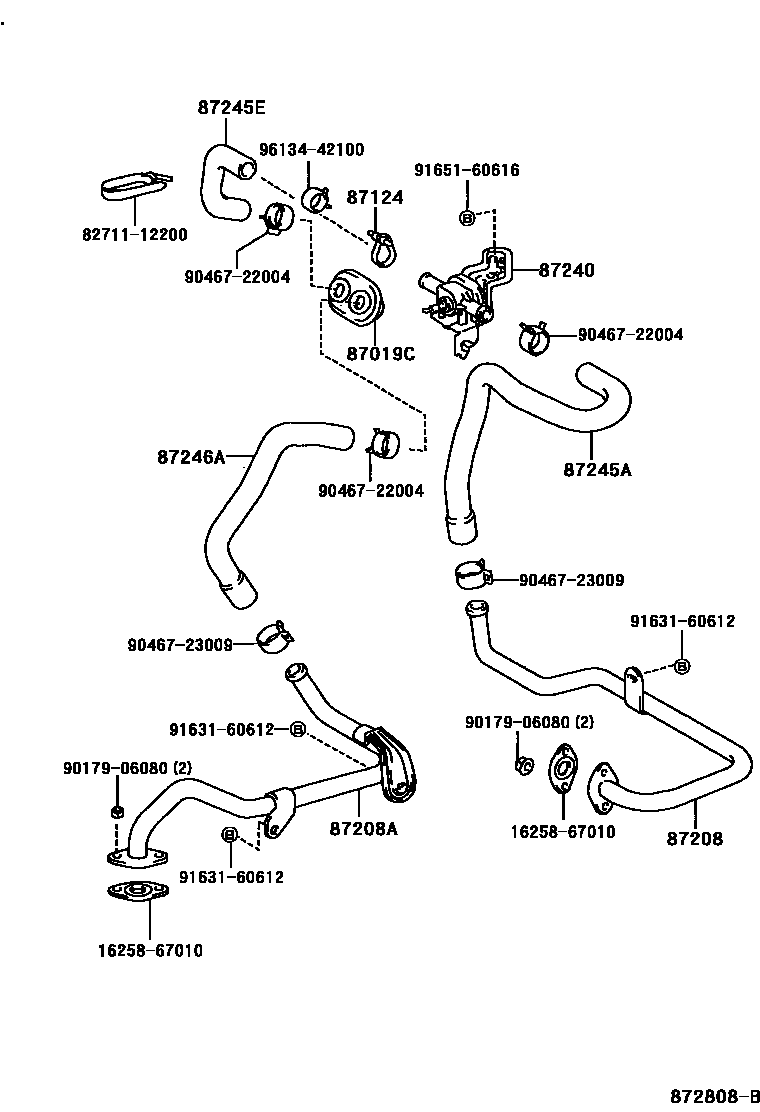

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

87019CGROMMET, HEATER HOSE

main90480-01405iKZN185,RZN18#,VZN18#199511

87124CLAMP, HEATER

main87124-28030iKZN185,RZN185,VZN185199511-199610

87208PIPE SUB-ASSY, HEATER WATER

main87208-35250iKZN185199511

87208APIPE SUB-ASSY, HEATER WATER, A

main87208-35260iKZN185199511

87240VALVE ASSY, HEATER WATER

main87240-35050iKZN185,RZN185,VZN185199511-199807

main87240-35070iKZN185,RZN18#,VZN18#199807

87245AHOSE, HEATER WATER, INLET A

main87245-35410iKZN185199511

main87245-35660iRZN18#199511

main87245-35720iVZN185199511-200008

main87245-3D230iVZN18#200008

87245EHOSE, HEATER WATER, INLET E

main87245-35670iKZN185,RZN18#,VZN18#199511

87246AHOSE, HEATER WATER, OUTLET A

main87245-35420iKZN185199511

main87245-35430iRZN185199511-199807

main87245-35730iVZN18#199511

main87245-3D150iRZN18#199807

1625867010GASKET(FOR HEATER RETURN)

main16258-67010

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9017906080

main90179-06080

9046722004

main90467-22004

9046723009

main90467-23009

9163160612

main91631-60612

9165160616

main91651-60616

9613442100

main96134-42100

16 parts on this diagram · 2 diagrams in section
