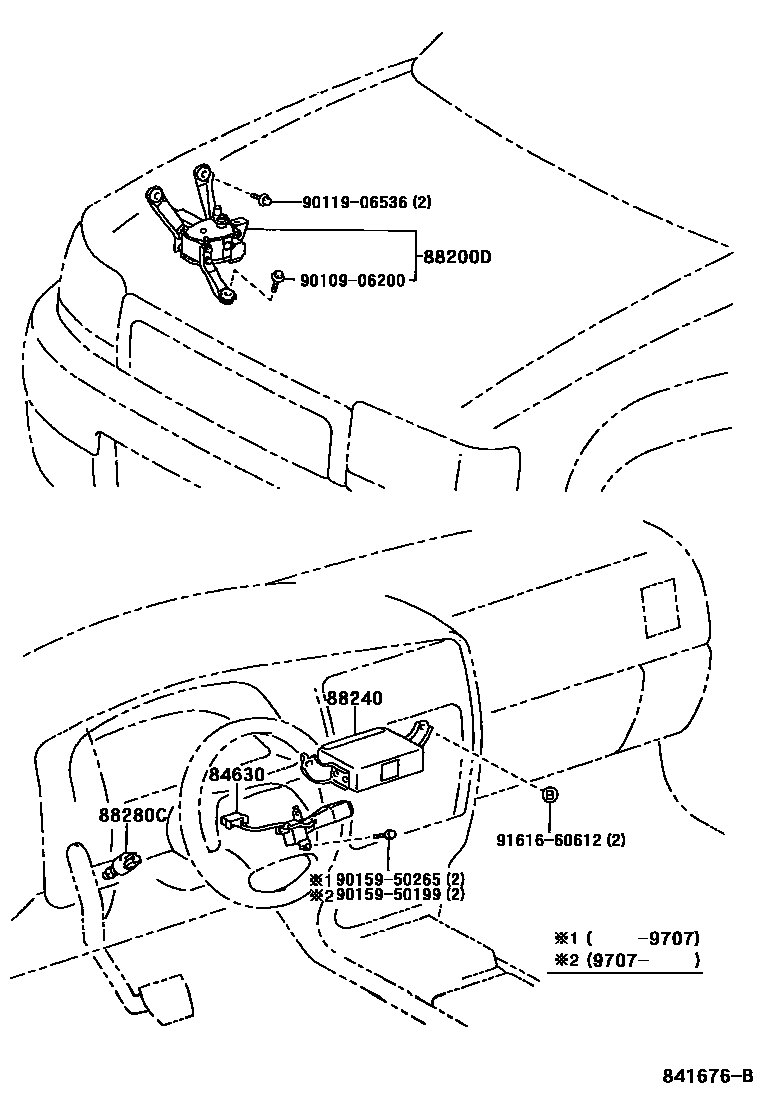

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1 0003 1 0005 1

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-06010iVZN185199806-199810

W(LEATHER TYPE STEERING WHEEL)

main84630-06020iVZN185199708-199806

W(LEATHER TYPE STEERING WHEEL)

main84630-30160iVZN18#200008-200107

main84630-33020iVZN185199708-199810

W(URETHANE STEERING WHEEL)

main84630-33020iRZN185199708-200008

main84630-35060iRZN185,VZN185199511-199708

88200DACTUATOR ASSY, CRUISE CONTROL

main88001-0W010iVZN185199608-199807

main88001-0W030iVZN185199807-200008

main88200-35260iRZN185199511-199708

main88200-35280iVZN185199511-200107

main88200-35290iRZN185199708-200008

88240COMPUTER ASSY, CRUISE CONTROL

main88240-35250iRZN185199511-199708

main88240-35270iVZN185199511-199608

main88240-35290iRZN185199708-199806

main88240-35291iRZN185199806-200008

main88240-35330iVZN18#200008-200107

88280CSWITCH ASSY, CLUTCH

main88280-14030iRZN185199511-200008

9010906200

main90109-06200

9011906536

main90119-06536

9015950199

main90159-50199

9015950265

main90159-50265

9161660612

main91616-60612

9 parts on this diagram · 4 diagrams in section
